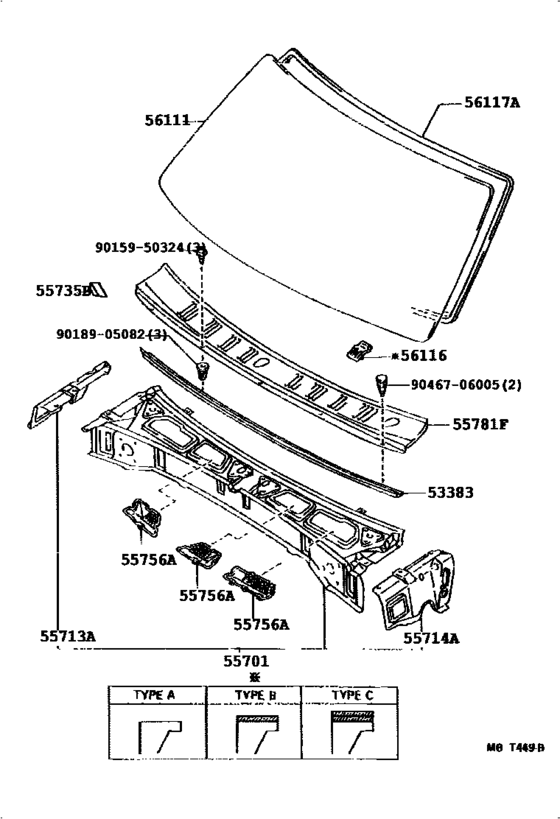

Cowl Panel & Windshield Glass ([08.1988 - ] (8808- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1993 - 1995
- Sales region
- U.S.A.
- Frame
- RN90
- grade
- DLX
- ENGINE
- 22RE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- XTR
- Model
- 4RUNNER TRUCK
- From
- 03.1993
- To
- 01.1995
- Gear Shift Type
- 5F
- Vehicle Model
- 4RUNNER
- Fuel Induction
- EFI
- Building Condition
- CBU
- Transmission Model
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383
|
53383
53383-04010
Seal, Hood To Cowl Top
[09.1991 - 01.1995] RN80,90 |
53383-04010 |
— | ||
|
55701
|
55701
55700-04140
Panel Sub-Assy, Cowl
[09.1991 - 01.1995] RN80,90 |
55700-04140 |
— | ||
|
55713A
|
55713A
55713-89105 Panel, Cowl Top Side, Rh[09.1991 - 01.1995] RN80,90 |
55713-89105 |
US $62.32 |
||
|
55714A
|
55714A
55714-89106 Panel, Cowl Top Side, Lh[09.1991 - 01.1995] RN80,90 |
55714-89106 |
US $62.32 |
||
|
55735B
|
55735B
55735-89101
Seal, Front Air Shutter
[09.1991 - 01.1995] RN80,90 |
55735-89101 |
— | ||
|
55756A
|
55756A
55756-89108
Screen, Heater Air Duct
[09.1991 - 01.1995] RN80,90 LH |
55756-89108 |
— | ||
|
55756A
|
55756A
55756-89109
Screen, Heater Air Duct
[09.1991 - 01.1995] RN80,90 CENTER |
55756-89109 |
— | ||
|
55756A
|
55756A
55756-89111
Screen, Heater Air Duct
[09.1991 - 01.1995] RN80,90 RH |
55756-89111 |
— | ||
|
55781F
|
55781F
55781-89103 Louver, Cowl Top VentilatorCOWL TOP VENTILATOR [09.1991 - 01.1995] RN80,90 |
55781-89103 |
US $278.10 |
||
|
56111
|
56111
56111-04040
Glass, Windshield
[09.1992 - 01.1995] RN80,90..DLX *LAM,T=5.3,GREEN; RN80..STD *LAM,T=5.3,GREEN,W(TOP SHADE) |
56111-04040 |
— | ||
|
56116
|
56116
56116-89104
Spacer, Windshield Glass
[09.1991 - 01.1995] RN80,90 TYPE A |
56116-89104 |
— | ||
|
56116
|
56116
56116-89105 Spacer, Windshield Glass[09.1991 - 01.1995] RN80,90 TYPE B |
56116-89105 |
US $4.08 |
||
|
56116
|
56116
56116-89106 Spacer, Windshield Glass[09.1991 - 01.1995] RN80,90 TYPE C |
56116-89106 |
US $4.08 |
||
|
56117A
|
56117A
04562-12010 Dam Kit, Windshield Glass[02.1992 - 01.1995] RN80,90 |
04562-12010 |
from US $35.28 |
||
|
9015950324
|
9015950324
90159-50324
SCREW, W/WASHER TAPP
|
90159-50324 |
— | ||
|
9018905082
|
9018905082
90189-05082 Screw Grommet Nut Clip |
90189-05082 |
US $2.33 |
||
|
9046706005
|
9046706005
90467-06005 Clip, Radiator Support To Frame |
90467-06005 |
from US $1.40 |
