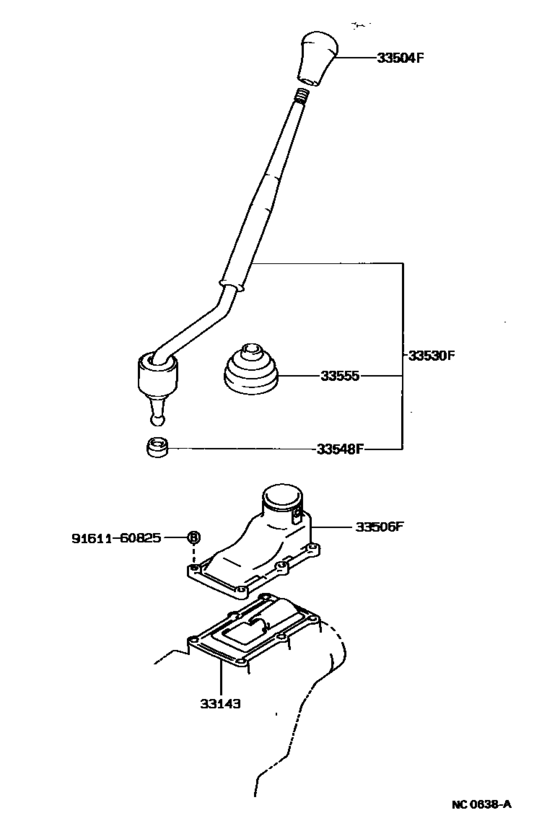

Shift Lever & Retainer ([08.1991 - 08.1997] (9108-9708)RN8#,90..V) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1992 - 1997
- Sales region
- U.S.A.
- Frame
- RN90
- grade
- SR5
- ENGINE
- 22R
- TRANSMISSION
- MTM
- DESTINATION
- V
- Model
- HILUX 2WD
- From
- 08.1992
- To
- 08.1997
- Body
- XTR
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33143
|
33143
33143-35050 Plate, Extension Housing Oil BaffleEXTENSION HOUSING OIL BAFFLE [10.1991 - 08.1997] RN8#,90..V |
33143-35050 |
from US $38.86 |
||
|
33504F
|
33504F
33504-35030-02 Knob Sub-Assy, Shift Lever[08.1991 - 08.1997] YN86..DLX;RN8#,90..SR5..V RED,TRIM3#; RN8#,90..DLX..V URETHANE,RED,TRIM3# |
33504-35030-02 |
US $40.19 |
||
| replacement | |||||
|
33504F
|
33504F
33504-35030-B3
Knob Sub-Assy, Shift Lever
[08.1991 - 08.1997] YN86..DLX;RN8#,90..SR5..V RED,TRIM3#; RN8#,90..DLX..V URETHANE,RED,TRIM3# |
33504-35030-B3 |
— | ||
|
33504F
|
33504F
33504-35030-B0
Knob Sub-Assy, Shift Lever
[08.1991 - 04.1996] LN85..RHD..TW1;LN86,YN85..5F..ARL;RN85..RHD..5F..CBU;RN85..5F..ARL..IV3;RN85,YN86, 92..LHD..(DLX,SR5);LN80,85,90,RN125,80,90,YN90..5F..(ARL,TH,V) URETHANE,MEDIUM GRAY,TRIM1# |
33504-35030-B0 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33504-35030-B3
Knob Sub-Assy, Shift Lever
[08.1991 - 04.1996] LN85..RHD..TW1;LN86,YN85..5F..ARL;RN85..RHD..5F..CBU;RN85..5F..ARL..IV3;RN85,YN86, 92..LHD..(DLX,SR5);LN80,85,90,RN125,80,90,YN90..5F..(ARL,TH,V) URETHANE,MEDIUM GRAY,TRIM1# |
33504-35030-B3 |
— | ||
|
33504F
|
33504F
33504-35030-J0 Knob Sub-Assy, Shift Lever[08.1991 - 08.1994] LN85..RHD..TW1;LN86,YN85..5F..ARL;RN85..RHD..5F..CBU;RN85..5F..ARL..IV3;RN85,YN86, 92..LHD..(DLX,SR5);LN80,85,90,RN125,80,90,YN90..5F..(ARL,TH,V) URETHANE,MEDIUM BLUE,TRIM8#; LN85..RHD..TW1;RN8#..T1..5F..(DLX,STD)..(ARL,V) URETHANE,MED |
33504-35030-J0 |
US $40.19 |
||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[08.1991 - 08.1994] LN85..RHD..TW1;LN86,YN85..5F..ARL;RN85..RHD..5F..CBU;RN85..5F..ARL..IV3;RN85,YN86, 92..LHD..(DLX,SR5);LN80,85,90,RN125,80,90,YN90..5F..(ARL,TH,V) URETHANE,MEDIUM BLUE,TRIM8#; LN85..RHD..TW1;RN8#..T1..5F..(DLX,STD)..(ARL,V) URETHANE,MED |
33504-24010-C1 |
from US $31.42 |
||
|
33506F
|
33506F
33570-35030 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)CONTROL SHIFT LEVER (FOR FLOOR SHIFT) [08.1991 - 08.1997] RN8#,90..V |
33570-35030 |
US $64.06 |
||
|
33530F
|
33530F
33530-35141
Lever Assy, Shift (For Floor Shift)
[03.1992 - 08.1997] RN8#,90..V |
33530-35141 |
— | ||
|
33548F
|
33548F
33548-31010 Bush, Shift Lever[03.1992 - 08.1994] YN80,85..5F;LN8#,90,RN125,8#,90,YN81,86,9#..MTM |
33548-31010 |
from US $3.49 |
||
|
33555
|
33555
33555-35040 Boot, Shift Lever[08.1988 - 08.1994] YN80,85..5F;LN8#,90,RN125,8#,90,YN81,86,87,9#..MTM |
33555-35040 |
from US $7.45 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
