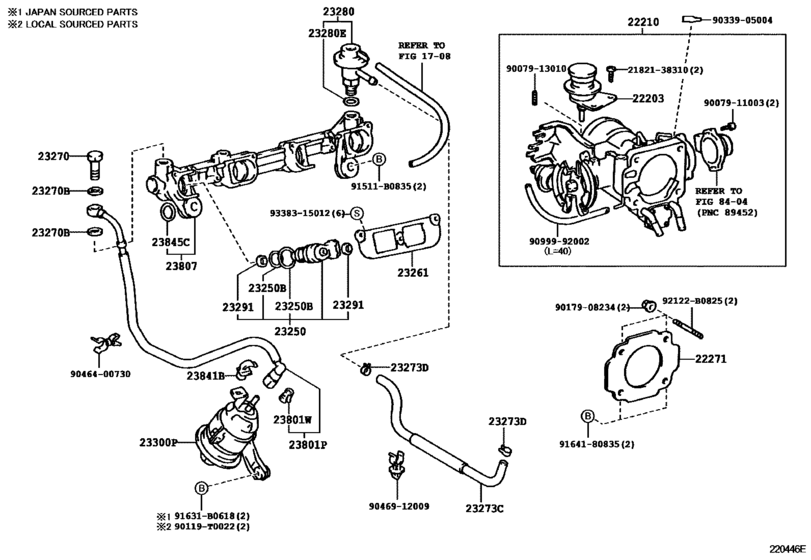

Fuel Injection System ([08.1997 - ] (9708- )1RZE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1997 - 2002
- Sales region
- General
- Frame
- RZN147
- grade
- DLX
- ENGINE
- 1RZE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- CAB
- SCB
- Model
- HILUX
- From
- 08.1997
- To
- 08.2002
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22203
|
22203
22202-75121
Dash Pot Sub-Assy(For Throttle Body)
[08.1997 - 09.2001] 1RZE..RZN147 |
22202-75121 |
— | ||
|
22210
|
22210
22210-75121 Body Assy, Throttle[08.1997 - 09.2001] 1RZE..RZN147 |
22210-75121 |
US $684.32 |
||
|
22271
|
22271
22271-75010 Gasket, Throttle Body[08.1997 - 09.2001] 1RZE..RZN147 |
22271-75010 |
from US $4.06 |
||
|
23250
|
23250
23209-79115 Injector Assy, Fuel[08.1997 - 09.2001] 1RZE..RZN147 |
23209-79115 |
US $272.27 |
||
|
23250B
|
23250B
90301-14006 Ring, O(For Fuel Injector)[08.1997 - 09.2001] 1RZE..RZN147 NO.2 |
90301-14006 |
from US $2.91 |
||
|
23250B
|
23250B
90301-17007 Ring, O(For Fuel Injector)[08.1997 - 09.2001] 1RZE..RZN147 NO.1 |
90301-17007 |
from US $2.83 |
||
|
23261
|
23261
23261-75020 Cover, Injector[08.1997 - 09.2001] 1RZE..RZN147 |
23261-75020 |
US $7.72 |
||
|
23270
|
23270
23207-46010
Damper Assy, Fuel Pressure Pulsation
[08.1997 - 12.2001] 3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;1RZE,2RZFE,3RZFE. .RZN147,148,149,168,174,193..DLX..(ARL,GEN) |
23207-46010 |
— | ||
| replacement | |||||
|
23270
|
23270
23207-20011 Damper Assy, Fuel Pressure Pulsation[08.1997 - 12.2001] 3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;1RZE,2RZFE,3RZFE. .RZN147,148,149,168,174,193..DLX..(ARL,GEN) |
23207-20011 |
from US $59.75 |
||
|
23270B
|
23270B
23279-74010 Gasket(For Fuel Pump Hose)[08.1997 - 12.2001] 3RZFE..RZN169..SA;3RZFE..RZN154,194..RHD;3RZFE..RZN169..DLX..ARL;1RZE,2RZFE,3RZFE. .RZN147,148,149,168,174,193..DLX..(ARL,GEN) |
23279-74010 |
from US $1.11 |
||
|
23273C
|
23273C
23273-75080 Hose, Fuel, No.2[08.1997 - 09.2001] 1RZE..RZN147 |
23273-75080 |
US $10.05 |
||
|
23273D
|
23273D
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
[08.1997 - 04.2002] 3RZFE..RZN154,194..RHD;3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);1RZE,2R ZFE,3RZFE..RZN147,148,149,168,174,193..DLX..(ARL,GEN) |
96135-41100 |
— | ||
| replacement | |||||
|
23273D
|
23273D
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[08.1997 - 04.2002] 3RZFE..RZN154,194..RHD;3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);1RZE,2R ZFE,3RZFE..RZN147,148,149,168,174,193..DLX..(ARL,GEN) |
96135-51100 |
from US $1.83 |
||
|
23273D
|
23273D
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[08.2001 - 08.2002] 1RZE,3RZFE..RZN147,169,174..ARL |
96135-51100 |
from US $1.83 |
||
|
23280
|
23280
23280-75010 Regulator Assy, Fuel Pressure[08.1997 - 09.2001] 1RZE..RZN147 |
23280-75010 |
from US $76.60 |
||
|
23280E
|
23280E
90301-09002 Ring, O(For Fuel Pressure Regulator)[08.1997 - 09.2001] 1RZE..RZN147 |
90301-09002 |
from US $1.25 |
||
|
23291
|
23291
23291-75020 Insulator, Injector Vibration[08.1997 - 09.2001] 1RZE..RZN147 |
23291-75020 |
from US $3.39 |
||
|
23300P
|
23300P
23300-75100 Filter, Fuel(For Efi)[08.1997 -] 3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);3RZFE..RZN149..DLX..(ARL,GEN); 1RZE,3RZFE..RZN147,154,174,194..RHD |
23300-75100 |
from US $61.04 |
||
|
23801P
|
23801P
23801-75060 Pipe Sub-Assy, Fuel, No.1[08.1997 - 09.2001] 1RZE..RZN147 |
23801-75060 |
US $66.25 |
||
|
23801W
|
23801W
90923-07010 Clip, Fuel Tube Connector[08.1997 -] 1RZE,2RZFE,3RZFE..RZN147,148,149,154,16#,174,19# |
90923-07010 |
US $3.05 |
||
|
23807
|
23807
23807-75030 Pipe Sub-Assy, Fuel Delivery[08.1997 - 09.2001] 1RZE..RZN147 |
23807-75030 |
US $269.36 |
||
| replacement | |||||
|
23807
|
23807
23807-75031 Pipe Sub-Assy, Fuel DeliveryFUEL DELIVERY [08.1997 - 09.2001] 1RZE..RZN147 |
23807-75031 |
US $269.36 |
||
|
23841B
|
23841B
90469-12012 Clamp Or Clip(For Fuel Hose)[08.1997 -] 3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);1RZE,3RZFE..RZN147,154,174,194 ..RHD;2RZFE,3RZFE..RZN148,149,168,193..DLX..(ARL,GEN) |
90469-12012 |
from US $3.61 |
||
|
23845C
|
23845C
23845-75010 Insulator, Fuel Pipe[08.1997 - 09.2001] 1RZE..RZN147 |
23845-75010 |
US $6.99 |
||
|
90119T0022
|
90119T0022
90119-T0022 New Genuine Part |
90119-T0022 |
US $0.73 |
||
|
91511B0835
|
91511B0835
91511-B0835
Bolt(For Cylinder Head Set Sub)
|
91511-B0835 |
— | ||
| replacement | |||||
|
91511B0835
|
91511B0835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.40 |
||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.66 |
||
|
92122B0825
|
92122B0825
92122-B0825 Bolt, Stud(For Water Outlet Setting) |
92122-B0825 |
US $1.51 |
||
|
2182138310
|
2182138310
21821-38310 Screw, 2Nd Throttle Valve Set |
21821-38310 |
from US $1.44 |
||
|
9007911003
|
9007911003
90079-11003 New Genuine Part |
90079-11003 |
from US $1.41 |
||
|
9007913010
|
9007913010
90079-13010 Screw, Dash Pot Adjusting |
90079-13010 |
US $2.91 |
||
|
9017908234
|
9017908234
90179-08234 NUT |
90179-08234 |
from US $0.82 |
||
|
9033905004
|
9033905004
90339-05004 PLUG |
90339-05004 |
US $3.32 |
||
|
9046400730
|
9046400730
90464-00730 New Genuine Part |
90464-00730 |
US $4.22 |
||
|
9046912009
|
9046912009
90469-12009 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90469-12009 |
US $1.60 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9164180835
|
9164180835
91641-80835 Bolt, Compressor, No.1 |
91641-80835 |
US $2.51 |
||
|
9338315012
|
9338315012
93383-15012 SCREW WWASHER |
93383-15012 |
US $1.25 |
||
