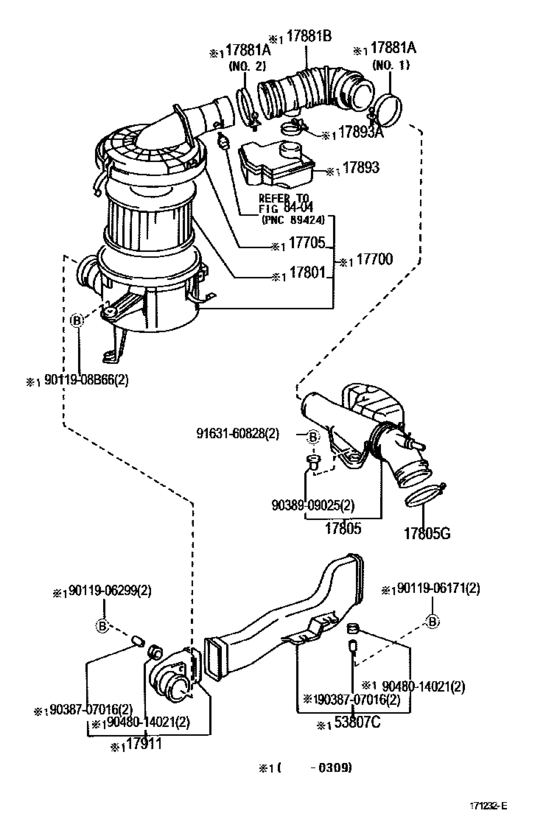

Air Cleaner ([08.1997 - ] (9708- )1RZE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1997 - 1999
- Sales region
- Japan
- Frame
- RZN167
- grade
- Q
- ENGINE
- 1RZE
- TRANSMISSION
- MTM
- CAB
- DCB
- Model
- HILUX
- From
- 08.1997
- To
- 08.1999
- Vehicle Model
- Hilux
- Body Shape
- NOB
- Deck,cab
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-75220 Cleaner Assy, Air[08.1997 - 08.2001] 1RZE..RZN147,152,167 |
17700-75220 |
US $336.34 |
||
|
17705
|
17705
17705-75170
Cap Sub-Assy, Air Cleaner
[08.1997 - 08.2001] 1RZE..RZN147,152,167 |
17705-75170 |
— | ||
|
17801
|
17801
17801-75030 Element Sub-Assy, Air Cleaner Filter[08.1997 - 08.2001] 1RZE,3RZFE..RZN147,152,16#,174 |
17801-75030 |
US $32.85 |
||
|
17805
|
17805
17860-75050 Connector Sub-Assy, Intake Air[08.1997 - 08.2001] 1RZE..RZN147,152,167 |
17860-75050 |
US $168.90 |
||
|
17805G
|
17805G
96111-10780 Clamp, Hose(For Air Connector)[08.1997 - 08.2001] 1RZE..RZN147,152,167 |
96111-10780 |
from US $3.53 |
||
|
17881A
|
17881A
96111-10830 Clamp, Hose(For Air Connector)[08.1997 - 08.2001] 1RZE,3RZFE..RZN147,152,16#,174 ＮＯ．１ |
96111-10830 |
from US $3.23 |
||
|
17881A
|
17881A
96111-10900 Clamp, Hose[08.1997 - 08.2001] 1RZE,3RZFE..RZN147,152,16#,174 ＮＯ．２ |
96111-10900 |
from US $1.19 |
||
|
17881B
|
17881B
17881-75110 Hose, Air Cleaner, No.1[08.1997 - 08.2001] 1RZE,3RZFE..RZN147,152,16#,174 |
17881-75110 |
from US $88.02 |
||
|
17893
|
17893
17893-75050 Resonator, Intake Air[08.1997 - 08.2001] 1RZE,3RZFE..RZN147,152,16#,174 |
17893-75050 |
US $33.37 |
||
|
17893A
|
17893A
96111-10480 Clamp Or Clip, Hose(For Radiator Outlet No.1)[08.1997 - 08.2001] 1RZE,3RZFE..RZN147,152,16#,174 |
96111-10480 |
US $2.15 |
||
|
17911
|
17911
52810-35010 Duct, Cool Air Intake, No.1[08.1997 - 08.2001] 1RZE,3RZFE..RZN147,152,16#,174 |
52810-35010 |
US $38.26 |
||
|
53807C
|
53807C
53807-35050 Duct Sub-Assy, Front Fender Air, Rh[08.1997 - 08.2001] RZN147,152,16#,174 |
53807-35050 |
US $48.34 |
||
|
9011908B66
|
9011908B66
90119-08B66 BOLT WWASHER |
90119-08B66 |
from US $0.78 |
||
|
9011906171
|
9011906171
90119-06171 BOLT |
90119-06171 |
US $2.33 |
||
|
9011906299
|
9011906299
90119-06299 New Genuine Part |
90119-06299 |
US $1.31 |
||
|
9038707016
|
9038707016
90387-07016 Collar(For Intake Air Connector) |
90387-07016 |
US $0.79 |
||
|
9038909025
|
9038909025
90389-09025 Bush(For Air Tube Support) |
90389-09025 |
US $2.87 |
||
|
9048014021
|
9048014021
90480-14021 GROMMET |
90480-14021 |
US $2.15 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.02 |
