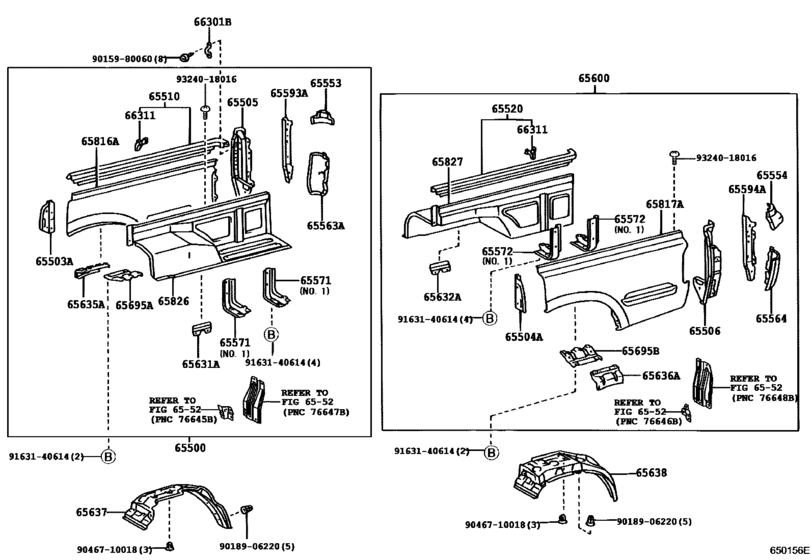

Rear Body Side Panel ([08.1997 - ] (9708- )NOB..TW1) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1997 - 1999
- Sales region
- Japan
- Frame
- RZN167
- grade
- Q
- ENGINE
- 1RZE
- TRANSMISSION
- MTM
- CAB
- DCB
- Model
- HILUX
- From
- 08.1997
- To
- 08.1999
- Vehicle Model
- Hilux
- Body Shape
- NOB
- Deck,cab
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65500
|
65500
65500-35570 Panel Assy, Rear Body Side, Rh[08.1997 - 08.2001] LN16#,RZN167..NOB..Q |
65500-35570 |
US $936.21 |
||
|
65503A
|
65503A
65503-35030 Post Sub-Assy, Side Panel Front End, Rh[08.1997 - 08.2001] LN16#,RZN147,16#..Q |
65503-35030 |
US $61.59 |
||
|
65504A
|
65504A
65504-35030 Post Sub-Assy, Side Panel Front End, Lh[08.1997 - 08.1999] LN165,RZN167 |
65504-35030 |
US $61.59 |
||
|
65505
|
65505
65505-35030
Post Sub-Assy, Side Panel Rear End, Rh
[08.1997 - 08.2001] LN16#,17#,RZN147,152,16#,174..Q |
65505-35030 |
— | ||
|
65506
|
65506
65506-35030
Post Sub-Assy, Side Panel Rear End, Lh
[08.1997 - 08.1999] LN165,170,RZN167 |
65506-35030 |
— | ||
|
65571
|
65571
65572-35010
Frame, Side Panel, Front Rh
[08.1997 - 08.1999] LN165,170,RZN167 ＮＯ．１ |
65572-35010 |
— | ||
|
65572
|
65572
65571-35010
Frame, Side Panel, Front Rh
[08.1997 - 08.1999] LN165,170,RZN167 ＮＯ．１ |
65571-35010 |
— | ||
|
65593A
|
65593A
65593-35030
Plate, Side Panel Rear End Post Inside, Rh
[08.1997 - 08.2001] LN16#,17#,RZN147,152,16#,174..Q |
65593-35030 |
— | ||
|
65594A
|
65594A
65594-35030
Plate, Side Panel Rear End Post Inside, Lh
[08.1997 - 08.1999] LN165,170,RZN167 |
65594-35030 |
— | ||
|
65600
|
65600
65600-35490 Panel Assy, Rear Body Side, Lh[08.1997 - 08.2001] LN16#,RZN167..NOB..Q |
65600-35490 |
US $936.21 |
||
|
65631A
|
65631A
65631-89113
Plate, Rear Wheel House, Front Rh
[08.1997 - 08.2001] LN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU |
65631-89113 |
— | ||
|
65632A
|
65632A
65632-89112
Plate, Rear Wheel House, Front Lh
[08.1997 - 08.1999] LN165,170,RZN167 |
65632-89112 |
— | ||
|
65635A
|
65635A
65635-35010 Panel, Wheel House, Rear Rh[08.1997 - 08.2001] LN147,16#,RZN147,16#..TW1 |
65635-35010 |
US $28.97 |
||
|
65636A
|
65636A
65636-35010
Panel, Wheel House, Rear Lh
[08.1997 - 08.1999] LN165,RZN167 |
65636-35010 |
— | ||
|
65637
|
65637
65637-35040 Liner, Rear Wheel House, Rh[08.1997 - 08.2001] LN147,16#,RZN147,16#..TW1 |
65637-35040 |
US $57.22 |
||
|
65638
|
65638
65638-35040 Liner, Rear Wheel House, Lh[08.1997 - 08.2001] LN147,16#,RZN147,16#..TW1 |
65638-35040 |
US $55.56 |
||
|
65695A
|
65695A
65695-35020
Bracket, Wheel House Brace, No.2
[08.1997 - 08.2001] LN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU |
65695-35020 |
— | ||
|
65695B
|
65695B
65695-35020
Bracket, Wheel House Brace, No.2
[08.1997 - 08.1999] LN165,170,RZN167 |
65695-35020 |
— | ||
|
65816A
|
65816A
65816-35090 Panel, Rear Body Side, Rh[08.1997 - 08.2001] LN16#,RZN167..NOB..Q |
65816-35090 |
US $291.20 |
||
|
65817A
|
65817A
65817-35090 Panel, Rear Body Side, Lh[08.1997 - 08.1999] LN165,RZN167..NOB |
65817-35090 |
US $291.20 |
||
|
65826
|
65826
65826-35060
Panel, Rear Body Side, Inner Rh
[08.1997 - 08.2001] LN16#,RZN147,16#..Q |
65826-35060 |
— | ||
|
65827
|
65827
65827-35060
Panel, Rear Body Side, Inner Lh
[08.1997 - 08.1999] LN165,RZN167 |
65827-35060 |
— | ||
|
66301B
|
66301B
66312-34010 Hook Sub-Assy, Rope[08.1997 - 08.2001] LN16#,17#,RZN147,152,16#,174..Q |
66312-34010 |
US $13.98 |
||
|
9015980060
|
9015980060
90159-80060 SCREW WWASHER |
90159-80060 |
from US $0.66 |
||
|
9018906220
|
9018906220
90189-06220 GROMMET SCREW |
90189-06220 |
from US $0.70 |
||
|
9046710018
|
9046710018
90467-10018 Clip, Radiator Support To Frame |
90467-10018 |
from US $1.23 |
||
|
9163140614
|
9163140614
91631-40614 БОЛТ BOLT |
91631-40614 |
US $1.43 |
||
|
9324018016
|
9324018016
93240-18016 SCREW |
93240-18016 |
US $1.93 |
