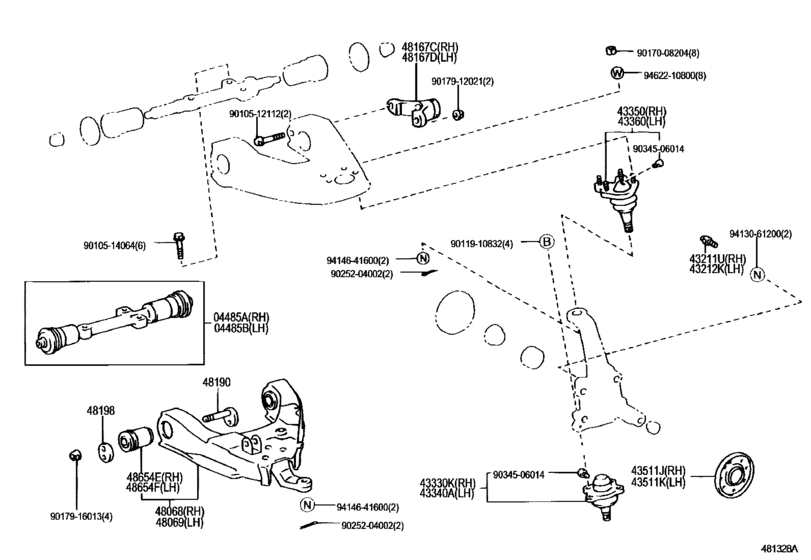

Front Axle Arm & Steering Knuckle ([06.2001 - ] (0106- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- RZN200
- grade
- DLX
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX 2WD
- From
- 06.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04485A
|
04485A
04485-35040 Shaft Kit, Upper Suspension Arm[06.2001 - 12.2004] LN200,RZN200 |
04485-35040 |
from US $143.27 |
||
|
04485B
|
04485B
04485-35040 Shaft Kit, Upper Suspension Arm[06.2001 - 01.2004] LN200,RZN200 |
04485-35040 |
from US $143.27 |
||
|
43211U
|
43211U
90106-12012 Bolt, Round Hexagon (For Steering Knuckle Stopper)[06.2001 -] LN200,RZN200 |
90106-12012 |
US $8.60 |
||
|
43212K
|
43212K
90106-12012 Bolt, Round Hexagon (For Steering Knuckle Stopper)[06.2001 -] LN200,RZN200 |
90106-12012 |
US $8.60 |
||
|
43330K
|
43330K
43330-39265 Joint Assy, Lower Ball, Front Rh[01.2004 -] LN200,RZN200 |
43330-39265 |
from US $83.52 |
||
|
43330K
|
43330K
43330-39315
Joint Assy, Lower Ball, Front Rh
[06.2001 - 01.2004] LN200,RZN200 |
43330-39315 |
— | ||
| replacement | |||||
|
43330K
|
43330K
43330-39835 Joint Assy, Lower Ball, Front Rh[06.2001 - 01.2004] LN200,RZN200 |
43330-39835 |
from US $96.76 |
||
|
43340A
|
43340A
43340-39245 Joint Assy, Lower Ball, Front Lh[06.2001 -] LN200,RZN200..DLX,STD |
43340-39245 |
from US $96.76 |
||
|
43350
|
43350
43350-39085 Joint Assy, Front Upper Ball, Rh[06.2001 -] LN200,RZN200 |
43350-39085 |
from US $101.52 |
||
|
43360
|
43360
43360-39085 Joint Assy, Front Upper Ball, Lh[06.2001 - 08.2001] LN200,RZN200 |
43360-39085 |
from US $103.66 |
||
|
43511J
|
43511J
90313-92001 Seal, Dust(For Front Axle Hub Rh)[06.2001 -] LN200,RZN200..DLX,STD |
90313-92001 |
from US $16.95 |
||
|
43511J
|
43511J
90313-98001 Seal, Dust(For Front Axle Hub Rh)[06.2001 -] LN200..SRV; RZN200 W(ABS) |
90313-98001 |
US $11.18 |
||
|
43511K
|
43511K
90313-92001 Seal, Dust(For Front Axle Hub Rh)[06.2001 -] LN200,RZN200..DLX,STD |
90313-92001 |
from US $16.95 |
||
|
43511K
|
43511K
90313-98002 Seal, Dust(For Front Axle Hub Lh)[06.2001 -] LN200..SRV; RZN200 W(ABS) |
90313-98002 |
US $19.66 |
||
|
48068
|
48068
48068-35090
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[06.2001 -] LN200,RZN200 |
48068-35090 |
— | ||
|
48069
|
48069
48069-35090 Arm Sub-Assy, Front Suspension, Lower No.1 LhFRONT SUSPENSION, LOWER NO.1 LH [06.2001 -] LN200,RZN200 |
48069-35090 |
US $402.68 |
||
|
48167C
|
48167C
48106-35011 Arm, Torque[06.2001 -] LN200,RZN200 |
48106-35011 |
US $58.53 |
||
|
48167D
|
48167D
48106-35011 Arm, Torque[06.2001 -] LN200,RZN200 |
48106-35011 |
US $58.53 |
||
|
48190
|
48190
48190-35020 Cam Assy, Camber Adjust[06.2001 -] LN200,RZN200 |
48190-35020 |
from US $10.04 |
||
|
48198
|
48198
48198-35010 Cam, Camber Adjust, No.2[06.2001 -] LN200,RZN200 |
48198-35010 |
from US $8.11 |
||
|
48654E
|
48654E
48061-35011 Bush, Lower Arm[06.2001 -] LN200,RZN200 |
48061-35011 |
from US $56.59 |
||
|
48654F
|
48654F
48061-35011 Bush, Lower Arm[06.2001 -] LN200,RZN200 |
48061-35011 |
from US $56.59 |
||
|
9010512112
|
9010512112
90105-12112 Bolt(For Torque Arm Setting) |
90105-12112 |
US $5.77 |
||
|
9010514064
|
9010514064
90105-14064 BOLT, WASHER BASED |
90105-14064 |
US $5.97 |
||
|
9011910832
|
9011910832
90119-10832 Bolt |
90119-10832 |
US $2.33 |
||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.74 |
||
|
9017912021
|
9017912021
90179-12021 NUT |
90179-12021 |
US $1.49 |
||
|
9017916013
|
9017916013
90179-16013 NUT |
90179-16013 |
from US $1.91 |
||
|
9025204002
|
9025204002
90252-04002 PIN |
90252-04002 |
US $0.54 |
||
|
9034506014
|
9034506014
90345-06014 Plug (For Ball Joint) |
90345-06014 |
US $1.97 |
||
|
9413061200
|
9413061200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9414641600
|
9414641600
94146-41600 New Genuine Part |
94146-41600 |
US $3.35 |
||
|
9462210800
|
9462210800
94622-10800 WASHER PLATE |
94622-10800 |
from US $0.60 |
||
