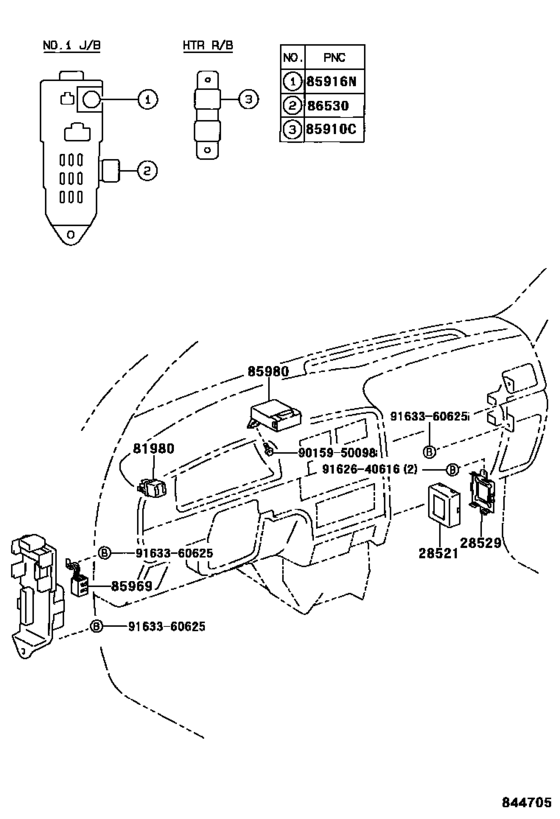

Switch & Relay & Computer ([06.2001 - ] INSTRUMENT PANEL & COWL RELAY (0106- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2001 - 2004
- Sales region
- General
- Frame
- RZN200
- grade
- DLX
- ENGINE
- 3RZFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- HILUX 2WD
- From
- 06.2001
- To
- 12.2004
- Body
- DCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Body
- TW1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[06.2001 -] LN200,RZN200 |
81980-32010 |
from US $53.92 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[06.2001 -] LN200,RZN200 |
90987-04002 |
from US $24.32 |
||
|
85916N
|
85916N
90987-01003 Relay, Fuel Lid Opener[06.2001 -] LN200,RZN200 |
90987-01003 |
from US $35.65 |
||
|
85969
|
85969
85969-35020 Relay, Light ReminderLIGHT REMINDER [06.2001 -] LN200,RZN200 |
85969-35020 |
US $117.94 |
||
|
85980
|
85980
85980-35010 Relay Assy, Door ControlDOOR CONTROL [06.2001 -] RZN200;LN200..SRV |
85980-35010 |
US $366.91 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[06.2001 -] LN200,RZN200 |
86530-20070 |
from US $10.16 |
||
|
9015950098
|
9015950098
90159-50098 SCREW |
90159-50098 |
US $3.94 |
||
|
9162640616
|
9162640616
91626-40616 New Genuine Part |
91626-40616 |
US $1.38 |
||
|
9163360625
|
9163360625
91633-60625
Screw(For Steering Column Tube)
|
91633-60625 |
— | ||
| replacement | |||||
|
9163360625
|
9163360625
91631-60622 Screw |
91631-60622 |
US $1.25 |
||
