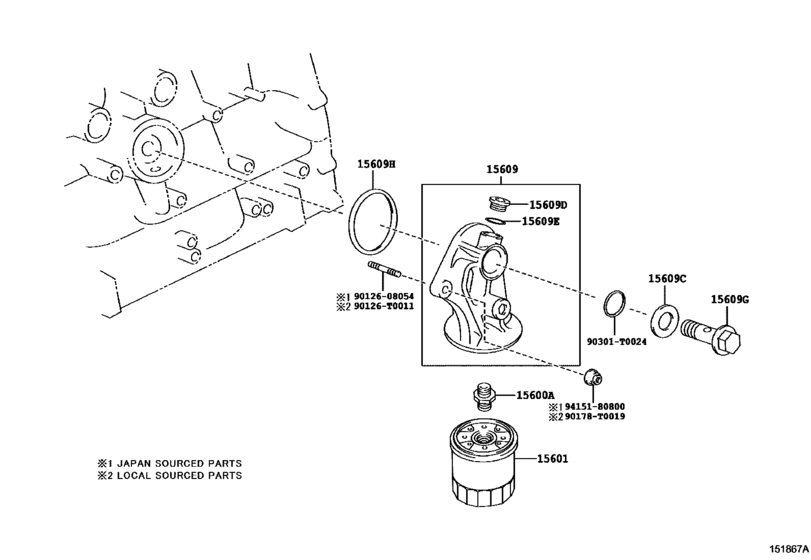

Oil Filter ([07.2011 - ] (1107- )1TRFE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- TGN10
- grade
- DLX
- ENGINE
- 1TRFE
- DESTINATION
- GCC
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 07.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15600A
|
15600A
90404-T0002
Union(For Oil Filter)
[07.2011 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH |
90404-T0002 |
— | ||
|
15601
|
15601
90915-TB001
Filter Sub-Assy, Oil
[07.2011 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH; 1KDFTV..KUN26..4FC..CO;1KDFTV..KUN26..5F..PHL;2KDFTV..KUN25..GCC,GEN,IDN,PKN;1KDFT V,2KDFTV..KUN10,16..GCC,IDN,TH;1KDFTV..KUN26,36..(4FC,5FC)..(PHL,TH);2KDFTV..KUN15 ..DCR..(GCC,GEN,PHL,PKN,T |
90915-TB001 |
— | ||
| replacement | |||||
|
15601
|
15601
90915-20005 Oil Filter (THAILAND)[07.2011 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH; 1KDFTV..KUN26..4FC..CO;1KDFTV..KUN26..5F..PHL;2KDFTV..KUN25..GCC,GEN,IDN,PKN;1KDFT V,2KDFTV..KUN10,16..GCC,IDN,TH;1KDFTV..KUN26,36..(4FC,5FC)..(PHL,TH);2KDFTV..KUN15 ..DCR..(GCC,GEN,PHL,PKN,T |
90915-20005 |
from US $17.98 |
||
|
15609
|
15609
15609-0C010
Bracket Sub-Assy, Oil Filter
[07.2011 - 01.2012] 1TRFE..TGN10,15 |
15609-0C010 |
— | ||
|
15609
|
15609
15609-75110
Bracket Sub-Assy, Oil Filter
[01.2012 - 06.2012] 1TRFE..TGN10,15 (J) |
15609-75110 |
— | ||
|
15609C
|
15609C
90430-28004 Gasket(For Oil Filter Bracket Union)[07.2011 - 12.2015] 1TRFE..TGN10,15 |
90430-28004 |
US $2.15 |
||
|
15609D
|
15609D
90341-22002 Plug, W/head Straight Screw(For Oil Filter Bracket)[01.2012 - 06.2012] 1TRFE..TGN10,15 (J) |
90341-22002 |
US $2.77 |
||
|
15609D
|
15609D
90341-T0010
Plug, W/head Straight Screw(For Oil Filter Bracket)
[07.2011 - 12.2015] 1TRFE..TGN10,15 (L) |
90341-T0010 |
— | ||
|
15609E
|
15609E
90430-22011 Gasket, Straight Screw Plug No.3(For Cylinder Block)[01.2012 - 06.2012] 1TRFE..TGN10,15 (J) |
90430-22011 |
US $1.79 |
||
|
15609E
|
15609E
90430-T0009 Gasket, W/head Straight Screw Plug[07.2011 - 12.2015] 1TRFE..TGN10,15 (L) |
90430-T0009 |
US $0.96 |
||
|
15609G
|
15609G
90401-T0005
Bolt, Union(For Oil Filter Bracket)
[07.2011 - 12.2015] 1TRFE..TGN10,15 |
90401-T0005 |
— | ||
|
15609H
|
15609H
90301-68005 Ring, O(For Oil Filter Bracket)[08.2014 - 12.2015] 1TRFE..TGN10,15 (J) |
90301-68005 |
from US $3.18 |
||
|
15609H
|
15609H
90301-T0023
Ring, O(For Oil Filter Bracket)
[07.2011 - 08.2014] 1TRFE..TGN10,15 |
90301-T0023 |
— | ||
|
90126T0011
|
90126T0011
90126-T0011
New Genuine Part
|
90126-T0011 |
— | ||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.92 |
||
|
90301T0024
|
90301T0024
90301-T0024
RING O
|
90301-T0024 |
— | ||
|
9012608054
|
9012608054
90126-08054 STUD HEXALOBULAR |
90126-08054 |
US $1.79 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
