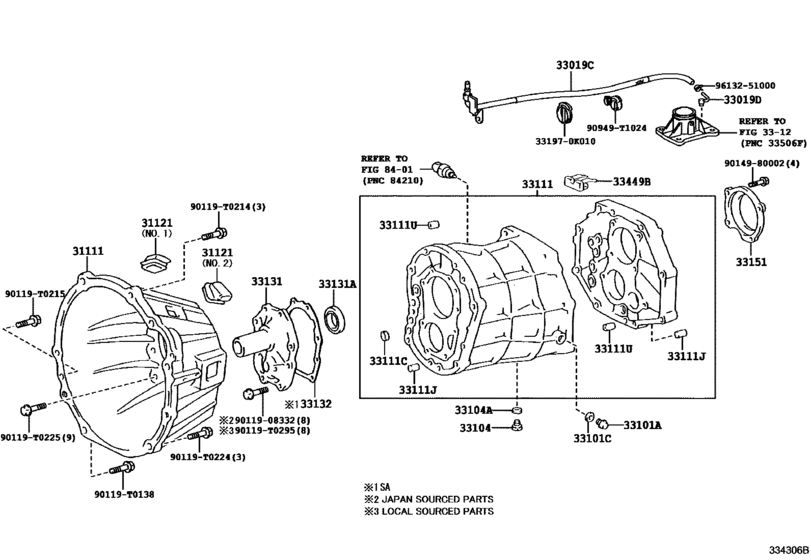

Clutch Housing & Transmission Case (Mtm) ([07.2011 - ] G55 (1107- )TGN10,15) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- TGN10
- grade
- DLX
- ENGINE
- 1TRFE
- DESTINATION
- IDN
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 07.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-0K030 Housing, Clutch[07.2011 - 04.2015] TGN10,15..GCC,IDN TYPE D:REFER 33-01 |
31111-0K030 |
US $368 |
||
|
31111
|
31111
31111-26032 Housing, Clutch[07.2011 - 12.2015] TGN10,15 TYPE A:REFER 33-01 |
31111-26032 |
US $241.70 |
||
|
31121
|
31121
31121-0K030
Cover, Clutch Housing, No.1
[07.2011 - 04.2015] TGN10,15..GCC,IDN T/P D:SEE 33-01,NO.2 |
31121-0K030 |
— | ||
|
31121
|
31121
31121-0K040
Cover, Clutch Housing, No.1
[07.2011 - 04.2015] TGN10,15..GCC,IDN T/P D:SEE 33-01,NO.1 |
31121-0K040 |
— | ||
|
31121
|
31121
31121-26020 Cover, Clutch Housing, No.1[07.2011 - 12.2015] TGN10,15 T/P A:SEE 33-01,NO.2 |
31121-26020 |
from US $6.99 |
||
|
31121
|
31121
31121-35020 Cover, Clutch Housing, No.1[07.2011 - 12.2015] TGN10,15 T/P A:SEE 33-01,NO.1 |
31121-35020 |
US $16.31 |
||
|
33019C
|
33019C
33019-71040 Breather Sub-Assy, Transmission[07.2011 - 12.2015] TGN10,15 |
33019-71040 |
from US $8.74 |
||
|
33019D
|
33019D
36149-60070 2 Way(For Transmission Breather Hose)[07.2011 - 12.2015] TGN26..5F..(GCC,GEN);GGN15,LAN15,25,35,TGN10,15..5F |
36149-60070 |
US $5.91 |
||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[07.2011 -] KUN15..HDCR..(GEN,TH);TGN16..5F..(ARL,GCC,GEN);KUN16,2#,3#,TGN11,26,36..(DCB,SCB,S MT,THDCB,THSCB,XTR)..5F..(ANCOM,ARL,GCC,GEN,IDN,PHL,TH) TYPE C:REFER 33-01; KUN25..5F..(GCC,GEN,IDN,PKN,TH);GGN15,25,KUN1#,26,3#,TGN1#,26,36..(DCB,SCB,SMT,THD C |
90341-18006 |
from US $3.23 |
||
|
33101C
|
33101C
90430-18008 Gasket[07.2011 -] KUN15..HDCR..(GEN,TH);TGN16..5F..(ARL,GCC,GEN);KUN16,2#,3#,TGN11,26,36..(DCB,SCB,S MT,THDCB,THSCB,XTR)..5F..(ANCOM,ARL,GCC,GEN,IDN,PHL,TH) TYPE C:REFER 33-01; KUN25..5F..(GCC,GEN,IDN,PKN,TH);GGN15,25,KUN1#,26,3#,TGN1#,26,36..(DCB,SCB,SMT,THD C |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[07.2011 -] KUN15..HDCR..(GEN,TH);TGN16..5F..(ARL,GCC,GEN);KUN16,2#,3#,TGN11,26,36..(DCB,SCB,S MT,THDCB,THSCB,XTR)..5F..(ANCOM,ARL,GCC,GEN,IDN,PHL,TH) TYPE C:REFER 33-01; KUN25..5F..(GCC,GEN,IDN,PKN,TH);GGN15,25,KUN1#,26,3#,TGN1#,26,36..(DCB,SCB,SMT,THD C |
90430-T0021 |
US $1.01 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[07.2011 - 08.2015] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[07.2011 -] KUN15..HDCR..(GEN,TH);TGN16..5F..(ARL,GCC,GEN);KUN16,2#,3#,TGN11,26,36..(DCB,SCB,S MT,THDCB,THSCB,XTR)..5F..(ANCOM,ARL,GCC,GEN,IDN,PHL,TH) TYPE C:REFER 33-01; KUN25..5F..(GCC,GEN,IDN,PKN,TH);GGN15,25,KUN1#,26,3#,TGN1#,26,36..(DCB,SCB,SMT,THD C |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[07.2011 -] KUN15..HDCR..(GEN,TH);TGN16..5F..(ARL,GCC,GEN);KUN16,2#,3#,TGN11,26,36..(DCB,SCB,S MT,THDCB,THSCB,XTR)..5F..(ANCOM,ARL,GCC,GEN,IDN,PHL,TH) TYPE C:REFER 33-01; KUN25..5F..(GCC,GEN,IDN,PKN,TH);GGN15,25,KUN1#,26,3#,TGN1#,26,36..(DCB,SCB,SMT,THD C |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33101-0K020
Case, Manual Transmission
[07.2011 - 08.2015] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
33101-0K020 |
— | ||
| replacement | |||||
|
33111
|
33111
33101-71020 Case, Manual Transmission[07.2011 - 08.2015] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
33101-71020 |
US $417.87 |
||
|
33111
|
33111
33101-35051 Case, Manual Transmission[07.2011 - 01.2015] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
33101-35051 |
US $460.10 |
||
| replacement | |||||
|
33111
|
33111
33101-71020 Case, Manual Transmission[07.2011 - 01.2015] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
33101-71020 |
US $417.87 |
||
|
33111
|
33111
33101-71020 Case, Manual Transmission[01.2015 -] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA) TYPE A:REFER 33-01 |
33101-71020 |
US $417.87 |
||
|
33111C
|
33111C
90331-14004 Plug, Manual Transmission Case[07.2011 - 08.2015] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) OD=14,TYPE D:REFER 33-01 |
90331-14004 |
US $4.68 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[07.2011 - 08.2015] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) L=16,OD=12,TYPE D:REFER 33-01 |
90250-12002 |
from US $1.27 |
||
|
33111U
|
33111U
90253-15001 Pin, Straight(For Clutch Housing Set)[07.2011 - 08.2015] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) L=14,OD=15,TYPE D:REFER 33-01 |
90253-15001 |
from US $1.07 |
||
|
33131
|
33131
33131-0K030
Retainer, Bearing, Front(Mtm)
[07.2011 - 08.2015] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
33131-0K030 |
— | ||
| replacement | |||||
|
33131
|
33131
33131-26020 Retainer, Bearing, Front(Mtm)[07.2011 - 08.2015] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
33131-26020 |
US $70.41 |
||
|
33131
|
33131
33131-26020 Retainer, Bearing, Front(Mtm)[07.2011 -] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH) TYPE A:REFER 33-01 |
33131-26020 |
US $70.41 |
||
|
33131A
|
33131A
90311-30014 Seal, Oil(For Transmission Front Bearing Retainer)[07.2011 -] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH) TYPE A:REFER 33-01 |
90311-30014 |
from US $5.38 |
||
|
33131A
|
33131A
90311-T0021 Seal, Oil(For Transmission Front Bearing Retainer)[07.2011 - 08.2015] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
90311-T0021 |
US $8.27 |
||
|
33132
|
33132
33132-28010 Gasket, Front Bearing Retainer(Mtm)[07.2011 -] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH) TYPE A:REFER 33-01 |
33132-28010 |
from US $3.55 |
||
|
33151
|
33151
33151-0K020 Retainer, Output Shaft Rear Bearing(Mtm)[07.2011 - 08.2015] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
33151-0K020 |
US $19.51 |
||
|
33151
|
33151
33151-35030 Retainer, Output Shaft Rear Bearing(Mtm)[07.2011 -] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH) TYPE A:REFER 33-01 |
33151-35030 |
from US $20.16 |
||
|
33449B
|
33449B
33449-26010 Magnet, Transmission[07.2011 - 08.2015] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
33449-26010 |
US $1.10 |
||
|
90119T0138
|
90119T0138
90119-T0138
New Genuine Part
|
90119-T0138 |
— | ||
|
90119T0214
|
90119T0214
90119-T0214
Bolt(For Transaxle Case & Engine Setting)
|
90119-T0214 |
— | ||
|
90119T0215
|
90119T0215
90119-T0215
Bolt(For Transaxle Case & Engine Setting)
|
90119-T0215 |
— | ||
|
90119T0224
|
90119T0224
90119-T0224
New Genuine Part
|
90119-T0224 |
— | ||
|
90119T0225
|
90119T0225
90119-T0225
Bolt(For Transaxle & Engine Setting)
|
90119-T0225 |
— | ||
|
90119T0295
|
90119T0295
90119-T0295
New Genuine Part
|
90119-T0295 |
— | ||
|
90949T1024
|
90949T1024
90949-T1024
New Genuine Part
|
90949-T1024 |
— | ||
|
331970K010
|
331970K010
33197-0K010
New Genuine Part
|
33197-0K010 |
— | ||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.23 |
||
|
9014980002
|
9014980002
90149-80002 BOLT |
90149-80002 |
US $0.51 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.48 |
||
