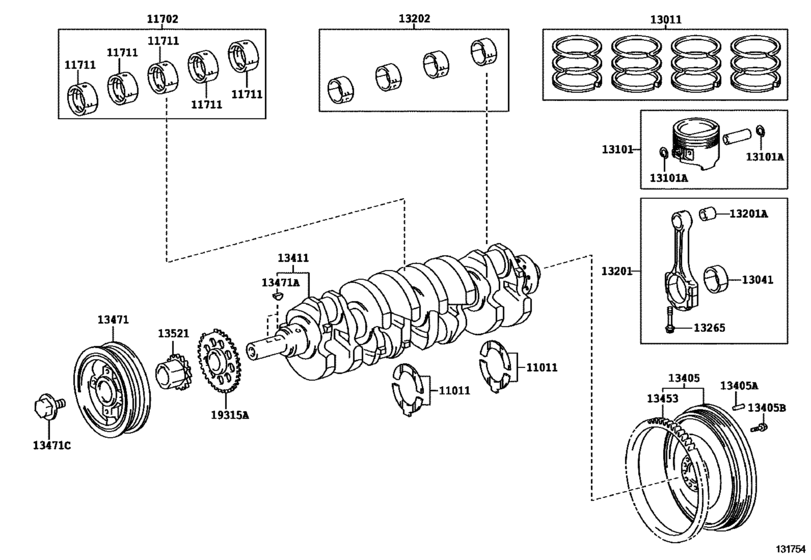

Crankshaft & Piston ([07.2011 - ] (1107- )1TRFE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- TGN10
- grade
- DLX
- ENGINE
- 1TRFE
- DESTINATION
- IDN
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 07.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-0C010 Washer Set, Crankshaft Thrust[07.2011 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH STD |
11011-0C010 |
US $19.91 |
||
|
11702
|
11702
11704-75031
Bearing Set, Crankshaft
[07.2011 - 08.2014] 1TRFE,2TRFE..TGN1#,26,36 U/S 0.25 |
11704-75031 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-75033 Bearing Set, Crankshaft[07.2011 - 08.2014] 1TRFE,2TRFE..TGN1#,26,36 U/S 0.25 |
11704-75033 |
from US $96.08 |
||
|
11702
|
11702
11704-75032 Bearing Set, Crankshaft[08.2014 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH U/S 0.25 |
11704-75032 |
US $202.38 |
||
| replacement | |||||
|
11702
|
11702
11704-75033 Bearing Set, Crankshaft[08.2014 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH U/S 0.25 |
11704-75033 |
from US $96.08 |
||
|
11711
|
11711
11701-0C010-01
Bearing, Crankshaft
[07.2011 - 07.2014] 1TRFE,2TRFE..TGN1#,26,36 MARK1,REFER R/M |
11701-0C010-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-0C011-01 Bearing, Crankshaft[07.2011 - 07.2014] 1TRFE,2TRFE..TGN1#,26,36 MARK1,REFER R/M |
11701-0C011-01 |
US $16.07 |
||
|
11711
|
11711
11701-0C010-02
Bearing, Crankshaft
[07.2011 - 07.2014] 1TRFE,2TRFE..TGN1#,26,36 MARK2,REFER R/M |
11701-0C010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-0C011-02 Bearing, Crankshaft[07.2011 - 07.2014] 1TRFE,2TRFE..TGN1#,26,36 MARK2,REFER R/M |
11701-0C011-02 |
US $16.83 |
||
|
11711
|
11711
11701-0C010-03
Bearing, Crankshaft
[07.2011 - 07.2014] 1TRFE,2TRFE..TGN1#,26,36 MARK3,REFER R/M |
11701-0C010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-0C011-03 Bearing, Crankshaft[07.2011 - 07.2014] 1TRFE,2TRFE..TGN1#,26,36 MARK3,REFER R/M |
11701-0C011-03 |
US $16.42 |
||
|
11711
|
11711
11701-0C011-01 Bearing, Crankshaft[08.2014 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH MARK 1,REFER R/M |
11701-0C011-01 |
US $16.07 |
||
|
11711
|
11711
11701-0C011-02 Bearing, Crankshaft[08.2014 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH MARK 2,REFER R/M |
11701-0C011-02 |
US $16.83 |
||
|
11711
|
11711
11701-0C011-03 Bearing, Crankshaft[08.2014 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH MARK 3,REFER R/M |
11701-0C011-03 |
US $16.42 |
||
|
11711
|
11711
11701-0C011-04 Bearing, Crankshaft[08.2014 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH MARK 4,REFER R/M |
11701-0C011-04 |
US $16.50 |
||
|
11711
|
11711
11701-0C011-05 Bearing, Crankshaft[08.2014 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH MARK 5,REFER R/M |
11701-0C011-05 |
US $18.68 |
||
|
13011
|
13011
13011-0C010 Ring Set, Piston[07.2011 - 12.2015] 1TRFE..TGN10,15 STD |
13011-0C010 |
US $72.95 |
||
|
13011
|
13011
13013-75100 Piston Ring Set[07.2011 - 12.2015] 1TRFE..TGN10,15 O/S 0.50 |
13013-75100 |
from US $128.95 |
||
|
13041
|
13041
13041-0C050-04
Bearing, Connecting Rod
[07.2011 - 01.2015] 1TRFE,2TRFE..TGN1#,26,36..CNG,HTWC MARK4,REFER R/M |
13041-0C050-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0C051-04
Bearing, Connecting Rod
[07.2011 - 01.2015] 1TRFE,2TRFE..TGN1#,26,36..CNG,HTWC MARK4,REFER R/M |
13041-0C051-04 |
— | ||
|
13041
|
13041
13041-0C050-05
Bearing, Connecting Rod
[07.2011 - 01.2015] 1TRFE,2TRFE..TGN1#,26,36..CNG,HTWC MARK5,REFER R/M |
13041-0C050-05 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0C051-05
Bearing, Connecting Rod
[07.2011 - 01.2015] 1TRFE,2TRFE..TGN1#,26,36..CNG,HTWC MARK5,REFER R/M |
13041-0C051-05 |
— | ||
|
13041
|
13041
13041-0C050-06
Bearing, Connecting Rod
[07.2011 - 01.2015] 1TRFE,2TRFE..TGN1#,26,36..CNG,HTWC MARK6,REFER R/M |
13041-0C050-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0C051-06
Bearing, Connecting Rod
[07.2011 - 01.2015] 1TRFE,2TRFE..TGN1#,26,36..CNG,HTWC MARK6,REFER R/M |
13041-0C051-06 |
— | ||
|
13041
|
13041
13041-0C052-04
Bearing, Connecting Rod
[01.2015 - 02.2016] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH MARK 4,REFER R/M |
13041-0C052-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0C060-04 Bearing, Connecting Rod[01.2015 - 02.2016] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH MARK 4,REFER R/M |
13041-0C060-04 |
US $11.52 |
||
|
13041
|
13041
13041-0C052-05
Bearing, Connecting Rod
[01.2015 - 02.2016] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH MARK 5,REFER R/M |
13041-0C052-05 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0C060-05 Bearing, Connecting Rod[01.2015 - 02.2016] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH MARK 5,REFER R/M |
13041-0C060-05 |
US $11.43 |
||
|
13041
|
13041
13041-0C052-06
Bearing, Connecting Rod
[01.2015 - 02.2016] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH MARK 6,REFER R/M |
13041-0C052-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-0C060-06 Bearing, Connecting Rod[01.2015 - 02.2016] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH MARK 6,REFER R/M |
13041-0C060-06 |
US $11.35 |
||
|
13101
|
13101
13101-0C010
Piston Sub-Assy, W/pin
[07.2011 - 01.2012] 1TRFE..TGN10,15 STD |
13101-0C010 |
— | ||
|
13101
|
13101
13103-75120 Piston Sub-Assy, W/pin[07.2011 - 01.2012] 1TRFE..TGN10,15 O/S 0.50 |
13103-75120 |
from US $58.52 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[07.2011 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH |
90520-22025 |
from US $1.95 |
||
|
13201
|
13201
13201-09301
Rod Sub-Assy, Connecting
[07.2011 - 05.2015] 1TRFE..TGN10,15 |
13201-09301 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-09303
Rod Sub-Assy, Connecting
[07.2011 - 05.2015] 1TRFE..TGN10,15 |
13201-09303 |
— | ||
|
13201A
|
13201A
90999-73144 Bush(For Connecting Rod Small End)[07.2011 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH |
90999-73144 |
from US $2.32 |
||
|
13202
|
13202
13204-75050
Bearing Set, Connecting Rod
[07.2011 - 01.2015] 1TRFE,2TRFE..TGN1#,26,36..CNG,HTWC U/S 0.25 |
13204-75050 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-75070 Bearing Set, Connecting Rod[07.2011 - 01.2015] 1TRFE,2TRFE..TGN1#,26,36..CNG,HTWC U/S 0.25 |
13204-75070 |
from US $53.51 |
||
|
13202
|
13202
13204-75052 Bearing Set, Connecting Rod[01.2015 - 03.2016] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH U/S 0.25 |
13204-75052 |
US $99.01 |
||
| replacement | |||||
|
13202
|
13202
13204-75070 Bearing Set, Connecting Rod[01.2015 - 03.2016] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH U/S 0.25 |
13204-75070 |
from US $53.51 |
||
|
13265
|
13265
13265-28010
Bolt, Connecting Rod
[07.2011 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH |
13265-28010 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-28020 BOLT CONNECTING ROD[07.2011 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH |
13265-28020 |
from US $2.85 |
||
|
13405
|
13405
13405-0C020
Flywheel Sub-Assy
[07.2011 - 04.2015] 1TRFE..TGN10,15..GCC,IDN |
13405-0C020 |
— | ||
|
13405A
|
13405A
90250-T0010
Pin, Straight(For Flywheel)
[07.2011 - 04.2015] 1TRFE,2TRFE..TGN1#,26,36..5F..(ARL,GCC,GEN,IDN,TH) L=23,OD=8 |
90250-T0010 |
— | ||
|
13405B
|
13405B
90910-T2004 Bolt, Flywheel Setting[07.2011 - 04.2015] 1TRFE,2TRFE..TGN1#,26,36..5F..(ARL,GCC,GEN,IDN,TH) |
90910-T2004 |
US $2.42 |
||
|
13411
|
13411
13401-0C010 Crankshaft[07.2011 - 12.2015] 1TRFE..TGN10,15 |
13401-0C010 |
US $643.85 |
||
|
13453
|
13453
13453-0C030
Gear, Flywheel Ring
[07.2011 - 04.2015] 1TRFE,2TRFE..TGN1#,26,36..5F..(ARL,GCC,GEN,IDN,TH) |
13453-0C030 |
— | ||
|
13471
|
13471
13408-0C040
Pulley, Crankshaft
[07.2011 - 04.2015] 1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
13408-0C040 |
— | ||
| replacement | |||||
|
13471
|
13471
13408-0C030 Pulley, Crankshaft[07.2011 - 04.2015] 1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
13408-0C030 |
US $163.76 |
||
|
13471A
|
13471A
90280-T0003
Key, Crankshaft(For Crankshaft Pulley Set)
[07.2011 -] 2TRFE..TGN26..ANCOM;1TRFE,2TRFE..TGN10,15,36..ANCOM,GCC,IDN |
90280-T0003 |
— | ||
|
13471C
|
13471C
90105-16041 Bolt(For Crankshaft Pulley Set)[06.2014 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH (J) |
90105-16041 |
from US $4.52 |
||
|
13471C
|
13471C
90109-T0038 Bolt(For Crankshaft Pulley Set)[07.2011 - 06.2014] 1TRFE,2TRFE..TGN1#,26,36 |
90109-T0038 |
US $5.07 |
||
|
13521
|
13521
13521-0C010
Gear Or Sprocket, Crankshaft Timing
[07.2011 - 06.2014] 1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
13521-0C010 |
— | ||
| replacement | |||||
|
13521
|
13521
13521-0C011 Gear Or Sprocket, Crankshaft Timing[07.2011 - 06.2014] 1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH |
13521-0C011 |
US $29 |
||
|
13521
|
13521
13521-0C011 Gear Or Sprocket, Crankshaft Timing[06.2014 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH (L) |
13521-0C011 |
US $29 |
||
|
13521
|
13521
13521-75021 Gear Or Sprocket, Crankshaft Timing[06.2014 -] 1TRFE,2TRFE..TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,TH (J) |
13521-75021 |
from US $28.90 |
||
|
19315A
|
19315A
19315-0C010
Rotor, Crank Position Sensor
[07.2011 - 12.2015] 1TRFE..TGN10,15 |
19315-0C010 |
— | ||
