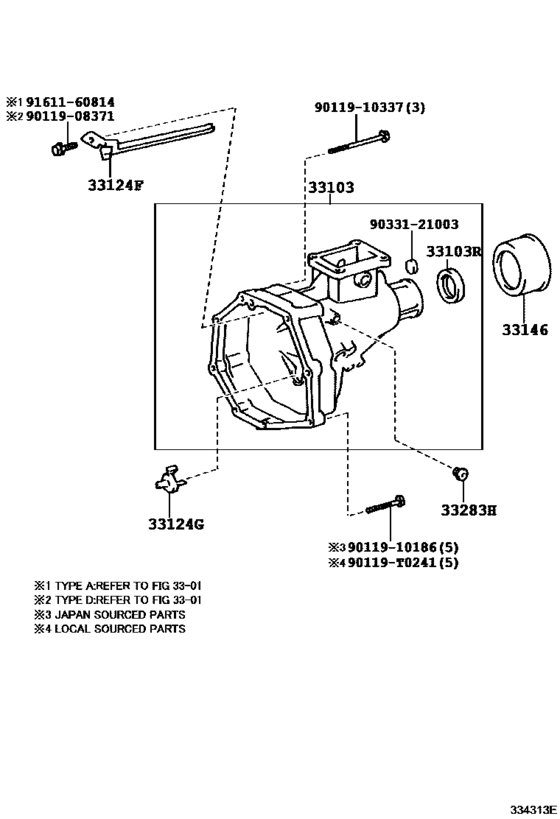

Extension Housing (Mtm) ([07.2011 - ] G50,G55,G58 (1107- )KUN10,15,LAN15,35,TGN10,15..DCR,DEFI, HTWC) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- TGN10
- grade
- DLX
- ENGINE
- 1TRFE
- DESTINATION
- IDN
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 07.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33103
|
33103
33103-0K020
Housing Sub-Assy, Extension(Mtm)
[07.2011 - 04.2015] TGN10,15..GCC,IDN TYPE D:REFER 33-01 |
33103-0K020 |
— | ||
| replacement | |||||
|
33103
|
33103
33103-71010
Housing Sub-Assy, Extension(Mtm)
[07.2011 - 04.2015] TGN10,15..GCC,IDN TYPE D:REFER 33-01 |
33103-71010 |
— | ||
|
33103
|
33103
33103-71010
Housing Sub-Assy, Extension(Mtm)
[07.2011 -] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH) TYPE A:REFER 33-01 |
33103-71010 |
— | ||
|
33103R
|
33103R
90311-38094 Seal, Oil(For Manual Transmission Extension Housing)[07.2011 -] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH) TYPE A:REFER 33-01 |
90311-38094 |
from US $7.17 |
||
|
33103R
|
33103R
90311-T0020
Seal, Oil(For Manual Transmission Extension Housing)
[07.2011 - 11.2012] TGN10,15..GCC,IDN TYPE D:REFER 33-01; KUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
90311-T0020 |
— | ||
| replacement | |||||
|
33103R
|
33103R
90311-T0050 Seal, Oil(For Manual Transmission Extension Housing)[07.2011 - 11.2012] TGN10,15..GCC,IDN TYPE D:REFER 33-01; KUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN,TH) TYPE D:REFER 33-01 |
90311-T0050 |
US $6.63 |
||
|
33103R
|
33103R
90311-T0050 Seal, Oil(For Manual Transmission Extension Housing)[11.2012 - 04.2015] TGN10,15..GCC,IDN TYPE D:REFER 33-01 |
90311-T0050 |
US $6.63 |
||
|
33124F
|
33124F
33124-0K030
Pipe, Oil Receiver, No.1(For Extension Housing)
[07.2011 - 04.2015] TGN10,15..GCC,IDN TYPE D:REFER 33-01 |
33124-0K030 |
— | ||
|
33124F
|
33124F
33124-35011 Pipe, Oil Receiver, No.1(For Extension Housing)[07.2011 -] KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,TH) TYPE A:REFER 33-01 |
33124-35011 |
from US $5.56 |
||
|
33146
|
33146
33146-04010
Deflector, Extension Housing Dust(Mtm)
[07.2011 -] LAN15,35..RHD;GGN15,KUN1#,3#,TGN1#,36..5F..(ANCOM,ARL,GCC,GEN,IDN,PHL,PKN,TH) |
33146-04010 |
— | ||
|
33283H
|
33283H
90341-12008 Plug, W/head Straight Screw(For Transfer Adapter)[07.2011 -] LAN15..LHD; KUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN) TYPE D:REFER 33-01; KUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA) TYPE A:REFER 33-01 |
90341-12008 |
from US $3.33 |
||
|
90119T0241
|
90119T0241
90119-T0241
New Genuine Part
|
90119-T0241 |
— | ||
|
9011908371
|
9011908371
90119-08371 New Genuine Part |
90119-08371 |
US $1.46 |
||
|
9011910186
|
9011910186
90119-10186 BOLT |
90119-10186 |
US $2.51 |
||
|
9011910337
|
9011910337
90119-10337
BOLT
|
90119-10337 |
— | ||
|
9033121003
|
9033121003
90331-21003 Plug(For Transfer Adapter) |
90331-21003 |
US $2.04 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
