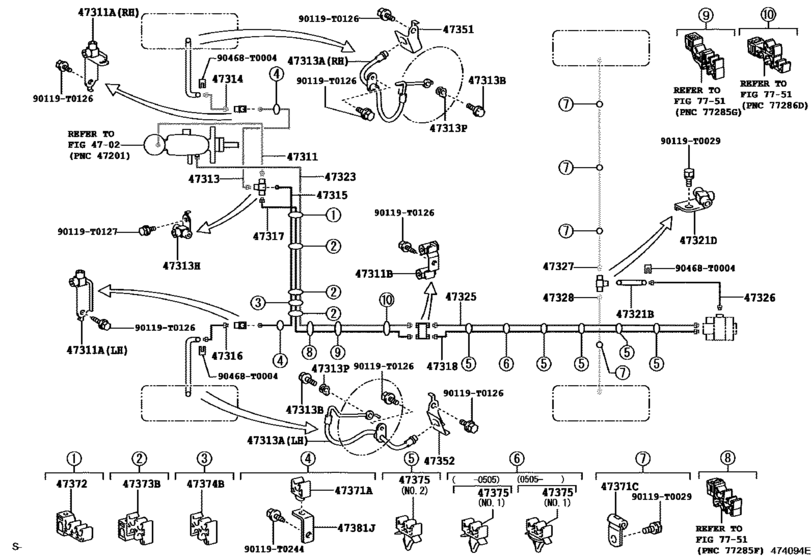

Brake Tube & Clamp ([08.2004 - ] (0408- )KUN16..SCB,SMT,XTR ; (0408- )TGN16 ..RHD..DCB,SCB,SMT ; (0408- )GGN 15,KUN15,LAN15,TG N10..RHD..ARL,GEN,IDN,PKN,TH) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Frame
- TGN10
- grade
- STD
- ENGINE
- 1TRFE
- DESTINATION
- IDN
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2009
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-0K010
Tube, Front Brake, No.1
[08.2008 - 02.2012] KUN15,26,36..XTR..SA;KUN26..RHD..4FC..(ARL,GEN);KUN25..RHD..(GEN,MA,PKN,TH);KUN26. .RHD..5F..(ARL,GEN,IDN,TH);GGN15,25,KUN15,16,3#,TGN10,16..RHD..(ARL,GEN,IDN,TH) |
47311-0K010 |
— | ||
|
47311A
|
47311A
90412-10251
Way(For Front Brake Tube)
[08.2008 -] GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC, SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA) ;GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,S |
90412-10251 |
— | ||
|
47311A
|
47311A
90412-10252
Way(For Front Brake Tube)
[08.2008 -] GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC, SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA) ;GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,S |
90412-10252 |
— | ||
|
47311B
|
47311B
90412-10253
Way, No.1(For Front Brake Tube)
[08.2008 -] GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC, SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA) ;GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,S |
90412-10253 |
— | ||
|
47313
|
47313
47313-0K020
Tube, Front Brake, No.3
[08.2008 -] KUN25..TH;TGN16..SMT..DLX;TGN16..RHD..(DCB,SCB);GGN15,25,KUN16..DCB..DLX;GGN15,KUN 16..SCB,SMT,XTR;KUN26..RHD..4FC..(ARL,GEN);GGN15,25..DCB..5FC..SR..ARL;KUN26..RHD. .5F..(ARL,GEN,TH);KUN25..RHD..DLX..(GEN,MA,PKN);KUN15,3#,TGN10..RHD..(GEN,IDN |
47313-0K020 |
— | ||
|
47313A
|
47313A
90947-T2004 Hose, Flexible, No.1(For Front)FLEXIBLE, NO.1(FOR FRONT) [08.2008 - 08.2011] TGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN 15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH RH |
90947-T2004 |
US $40.25 |
||
|
47313A
|
47313A
90947-T2005 Hose, Flexible, No.1(For Front)FLEXIBLE, NO.1(FOR FRONT) [08.2008 - 08.2011] TGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN 15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH LH |
90947-T2005 |
US $37.30 |
||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[08.2008 - 08.2011] GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH |
90401-10015 |
from US $3.58 |
||
|
47313H
|
47313H
90414-10055
Way, No.3(For Front Brake Tube)
[08.2008 -] KUN15..XTR..TH;GGN15..DCB..DLX;KUN25,3#..SR..TH;TGN36..ANCOM..IV3;TGN36..4FC..DLX. .LA;KUN15..(DLX,STD)..PHL;TGN16..(SMT,XTR)..DLX;TGN26..DLX..ANCOM..CBU;GGN15,KUN16 ..SCB,SMT,XTR;KUN26..RHD..4FC..(ARL,GEN);GGN15,25..DCB..5FC..SR..ARL;KUN26..R |
90414-10055 |
— | ||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[08.2008 - 08.2010] TGN15..GCC,SA;TGN16..DCB,SCB,XTR;GGN15,KUN1#,LAN15,TGN10,11..ARL,GCC,GEN,IDN,PHL,S A,TH |
47389-50020 |
from US $4.91 |
||
|
47313P
|
47313P
47389-50021 Gasket(For Front Flexible Hose)[09.2010 - 08.2011] TGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN 15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH |
47389-50021 |
from US $4.70 |
||
|
47314
|
47314
47314-0K020
Tube, Front Brake, No.4
[08.2008 - 08.2011] TGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN 15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH |
47314-0K020 |
— | ||
|
47315
|
47315
47315-0K020
Tube, Front Brake, No.5
[08.2008 -] KUN25..TH;TGN16..SMT..DLX;TGN16..RHD..(DCB,SCB);GGN15,25,KUN16..DCB..DLX;GGN15,KUN 16..SCB,SMT,XTR;KUN26..RHD..4FC..(ARL,GEN);GGN15,25..DCB..5FC..SR..ARL;KUN26..RHD. .5F..(ARL,GEN,TH);KUN25..RHD..DLX..(GEN,MA,PKN);KUN15,3#,TGN10..RHD..(GEN,IDN |
47315-0K020 |
— | ||
|
47316
|
47316
47316-0K020
Tube, Front Brake, No.6
[08.2008 - 08.2011] TGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN 15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH |
47316-0K020 |
— | ||
|
47317
|
47317
47317-0K010
Tube, Front Brake, No.7
[08.2008 -] KUN26,36..XTR..SA;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;KUN26..RHD..4FC.. (ARL,GEN);KUN26..RHD..5F..(ARL,GEN,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,3#,TG N10,16..RHD..(ARL,GEN,IDN,TH);GGN25,KUN25..RHD..(DCB,SCB,SMT)..(ARL,GEN,MA,PK |
47317-0K010 |
— | ||
|
47318
|
47318
47318-0K010
Tube, Front Brake, No.8
[08.2008 - 07.2011] KUN10,TGN10,11 |
47318-0K010 |
— | ||
|
47321B
|
47321B
90947-T2011
Hose, Flexible(For Rear Brake Tube)
[08.2008 - 08.2011] TGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN 15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH |
90947-T2011 |
— | ||
|
47321D
|
47321D
90413-10311
Way, No.1(For Rear Brake Tube)
[08.2008 - 08.2011] TGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN 15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH |
90413-10311 |
— | ||
|
47323
|
47323
47323-0K020
Tube, Rear Brake, No.3
[08.2008 -] KUN25..TH;TGN16..SMT..DLX;TGN16..RHD..(DCB,SCB);GGN15,25,KUN16..DCB..DLX;GGN15,KUN 16..SCB,SMT,XTR;KUN26..RHD..4FC..(ARL,GEN);GGN15,25..DCB..5FC..SR..ARL;KUN26..RHD. .5F..(ARL,GEN,TH);KUN25..RHD..DLX..(GEN,MA,PKN);KUN15,3#,TGN10..RHD..(GEN,IDN |
47323-0K020 |
— | ||
|
47325
|
47325
47325-0K010
Tube, Rear Brake, No.5
[08.2008 - 07.2011] KUN10,TGN10,11 |
47325-0K010 |
— | ||
|
47326
|
47326
47329-0K011
Tube, Rear Brake, No.6
[08.2008 - 08.2011] TGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN 15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH |
47329-0K011 |
— | ||
|
47327
|
47327
47327-0K010
Tube, Rear Brake, No.7
[08.2008 - 07.2010] GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH |
47327-0K010 |
— | ||
| replacement | |||||
|
47327
|
47327
47327-0K011
Tube, Rear Brake, No.7
[08.2008 - 07.2010] GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH |
47327-0K011 |
— | ||
|
47327
|
47327
47327-0K011
Tube, Rear Brake, No.7
[08.2010 - 08.2011] TGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN 15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH |
47327-0K011 |
— | ||
|
47328
|
47328
47328-0K010
Tube, Rear Brake, No.8
[08.2008 - 07.2010] GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH |
47328-0K010 |
— | ||
| replacement | |||||
|
47328
|
47328
47328-0K011
Tube, Rear Brake, No.8
[08.2008 - 07.2010] GGN15,KUN1#,LAN15,TGN1#..ARL,GCC,GEN,IDN,PHL,SA,TH |
47328-0K011 |
— | ||
|
47328
|
47328
47328-0K011
Tube, Rear Brake, No.8
[08.2010 - 08.2011] TGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN 15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH |
47328-0K011 |
— | ||
|
47351
|
47351
47353-0K010
Bracket, Flexible Hose(For Front Rh)
[08.2008 - 08.2011] TGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN 15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH |
47353-0K010 |
— | ||
|
47352
|
47352
47354-0K010
Bracket, Flexible Hose(For Front Lh)
[08.2008 - 08.2011] TGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN 15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH |
47354-0K010 |
— | ||
|
47371A
|
47371A
90949-T1011
Clamp, Brake Tube, No.1
[08.2008 -] GGN25..5FC..SA;KUN15..XTR..TH;GGN25..DCB..ARL;GGN15,KUN16..DCB..DLX;KUN26..RHD..(A RL,GEN,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN25,3#,LAN25,35,TGN10,16,36. .RHD;KUN15,TGN15..RHD..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN15,KUN16,LAN15..RHD..( |
90949-T1011 |
— | ||
|
47371C
|
47371C
90461-T0001
Clamp, Brake Tube, No.7
[08.2008 -] GGN25..5FC..SA;GGN15..DCB..DLX;GGN25..DCB..(ARL,LA);TGN16..ARL,GCC,SA,TH;KUN15,TGN 16..XTR..DLX;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN1 6..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,3 |
90461-T0001 |
— | ||
|
47372
|
47372
90949-T1014
Clamp, Brake Tube, No.2
[08.2008 -] GGN25..5FC..SA;KUN15..XTR..TH;GGN25..DCB..ARL;GGN15,KUN16..DCB..DLX;KUN26..RHD..(A RL,GEN,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN25,3#,LAN25,35,TGN10,16,36. .RHD;KUN15,TGN15..RHD..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN15,KUN16,LAN15..RHD..( |
90949-T1014 |
— | ||
|
47373B
|
47373B
90949-T1008
Clamp, Brake Tube, No.3
[08.2008 -] GGN25..5FC..SA;KUN15..XTR..TH;GGN25..DCB..ARL;GGN15,KUN16..DCB..DLX;KUN26..RHD..(A RL,GEN,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN25,3#,LAN25,35,TGN10,16,36. .RHD;KUN15,TGN15..RHD..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN15,KUN16,LAN15..RHD..( |
90949-T1008 |
— | ||
|
47374B
|
47374B
90949-T1009
Clamp, Brake Tube, No.4
[08.2008 -] GGN25..5FC..SA;KUN15..XTR..TH;GGN25..DCB..ARL;GGN15,KUN16..DCB..DLX;KUN26..RHD..(A RL,GEN,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN25,3#,LAN25,35,TGN10,16,36. .RHD;KUN15,TGN15..RHD..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN15,KUN16,LAN15..RHD..( |
90949-T1009 |
— | ||
|
47375
|
47375
90469-T0007
Clamp, Brake Tube, No.5
[08.2008 - 08.2011] TGN16..XTR;GGN25..5FC..SA;GGN25..DCB..ARL;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..D LX;TGN26..LHD..(GCC,GEN,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC, 5FC)..SR;GGN35,KUN10,15,2#,3#,LAN15,25,35,TGN11,15,36..ARL,GCC,GEN,PH |
90469-T0007 |
— | ||
|
47375
|
47375
90949-T1006 Clamp, Brake Tube, No.8BRAKE TUBE, NO.5 [08.2008 - 07.2011] KUN10,TGN10,11 NO.2 |
90949-T1006 |
US $1.46 |
||
|
47381J
|
47381J
90949-T2001
Bracket, Brake Tube Clamp, No.2
[08.2008 -] GGN25..5FC..SA;KUN15..XTR..TH;GGN25..DCB..ARL;GGN15,KUN16..DCB..DLX;KUN26..RHD..(A RL,GEN,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN25,3#,LAN25,35,TGN10,16,36. .RHD;KUN15,TGN15..RHD..(DCB,SCB,SMT)..(DLX,SR)..CBU;GGN15,KUN16,LAN15..RHD..( |
90949-T2001 |
— | ||
|
90119T0029
|
90119T0029
90119-T0029 Bolt (For Transmission Control Cable Bracket) |
90119-T0029 |
US $1.02 |
||
|
90119T0126
|
90119T0126
90119-T0126
BOLT WWASHER
|
90119-T0126 |
— | ||
|
90119T0127
|
90119T0127
90119-T0127
New Genuine Part
|
90119-T0127 |
— | ||
|
90119T0244
|
90119T0244
90119-T0244
BOLT WWASHER
|
90119-T0244 |
— | ||
|
90468T0004
|
90468T0004
90468-T0004
CLIP
|
90468-T0004 |
— | ||
