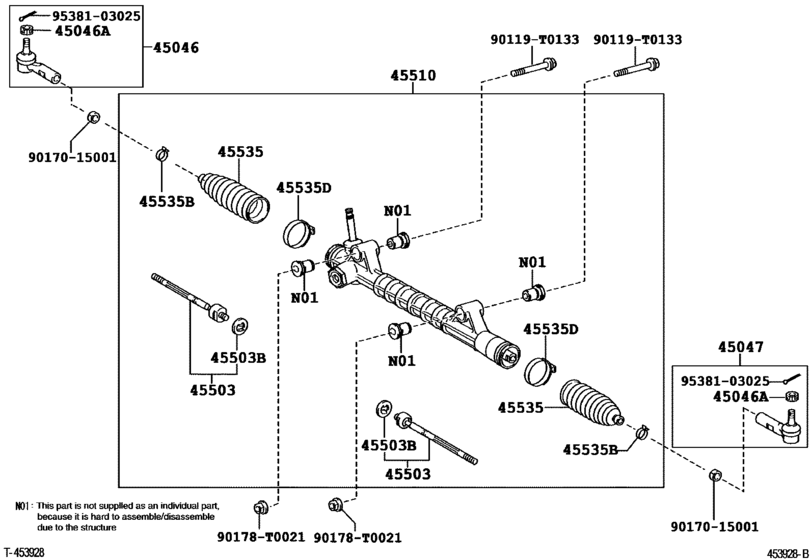

Front Steering Gear & Link ([08.2004 - ] (0408- )TGN10..IV3 ; (0408- )KUN15..SCB,XT R..DLX..TH) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2009 - 2011
- Sales region
- U.S.A.
- Frame
- TGN10
- grade
- STD
- ENGINE
- 1TRFE
- DESTINATION
- IDN
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2009
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-09320
End Sub-Assy, Tie Rod, Rh
[08.2008 - 07.2011] TGN10..IV3;KUN15..(SCB,XTR)..TH |
45046-09320 |
— | ||
|
45046A
|
45046A
90171-T0004
Nut, Castle(For Tie Rod End)
[08.2008 - 08.2011] TGN16..XTR;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..DCB..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN 15,KUN16..DCB..(4FC,5FC)..SR;KUN10,15,LAN15,TGN10,11,15..GCC,GEN,IDN,PHL,SA,TH |
90171-T0004 |
— | ||
|
45047
|
45047
45046-09320
End Sub-Assy, Tie Rod, Rh
[08.2008 - 07.2011] TGN10..IV3;KUN15..(SCB,XTR)..TH |
45046-09320 |
— | ||
|
45503
|
45503
45503-09410
End Sub-Assy, Steering Rack
[08.2008 - 07.2011] TGN10..IV3;KUN15..(SCB,XTR)..TH |
45503-09410 |
— | ||
|
45503B
|
45503B
90214-T0003
Washer, Claw(For Steering Rack End)
[08.2008 - 07.2011] TGN10..IV3;KUN15..(SCB,XTR)..TH OD=43 |
90214-T0003 |
— | ||
|
45510
|
45510
45510-0K030
Gear Assy, Steering
[08.2008 - 02.2011] TGN10..IV3;KUN15..(SCB,XTR)..TH |
45510-0K030 |
— | ||
| replacement | |||||
|
45510
|
45510
45510-0K040
Gear Assy, Steering
[08.2008 - 02.2011] TGN10..IV3;KUN15..(SCB,XTR)..TH |
45510-0K040 |
— | ||
|
45510
|
45510
45510-0K040
Gear Assy, Steering
[02.2011 -] TGN10..IV3;KUN15..(SCB,XTR)..TH |
45510-0K040 |
— | ||
|
45535
|
45535
45535-0K010 Boot, Steering Rack, No.1STEERING RACK, NO.1 [08.2008 - 07.2011] TGN10..IV3;KUN15..(SCB,XTR)..TH |
45535-0K010 |
from US $14.37 |
||
|
45535B
|
45535B
90080-46334
Clip(For Steering Rack Boot)
[08.2008 - 07.2011] TGN10..IV3;KUN15..(SCB,XTR)..TH |
90080-46334 |
— | ||
|
45535D
|
45535D
90460-T0003
Clamp(For Steering Rack Boot No.1)
[08.2008 - 07.2011] TGN10..IV3;KUN15..(SCB,XTR)..TH |
90460-T0003 |
— | ||
|
90119T0133
|
90119T0133
90119-T0133 BOLT WWASHER |
90119-T0133 |
US $4.72 |
||
|
90178T0021
|
90178T0021
90178-T0021
NUT FLANGE
|
90178-T0021 |
— | ||
|
9017015001
|
9017015001
90170-15001 Nut, Rack End Lock |
90170-15001 |
from US $1.46 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.78 |
||
