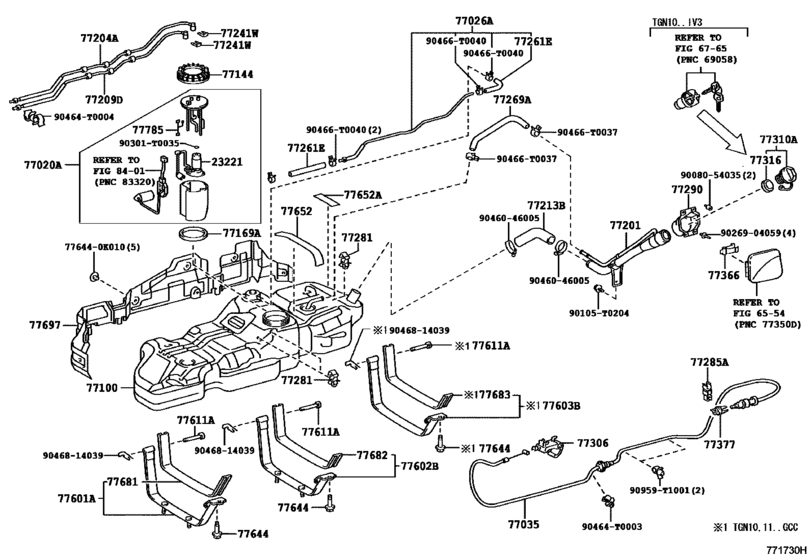

Fuel Tank & Tube ([07.2005 - ] FUEL TANK (0507- )TGN10,11) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- TGN11
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- GCC
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 10.2005
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23221
|
23221
23220-0C050
Pump, Fuel
[01.2005 - 12.2008] 2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26 ..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA);1TRFE,2TRFE..TGN1#..5F..(A RL,GCC,GEN,SA) |
23220-0C050 |
— | ||
| replacement | |||||
|
23221
|
23221
23220-0C051 Pump, Fuel[01.2005 - 12.2008] 2TRFE..TGN36..SCB;2TRFE..TGN16..XTR..TH;2TRFE..TGN26,36..DCB..DLX..LA;2TRFE..TGN26 ..ANCOM,GCC,GEN,SA,TH;2TRFE..TGN36..DCB..(ANCOM,PHL,SA);1TRFE,2TRFE..TGN1#..5F..(A RL,GCC,GEN,SA) |
23220-0C051 |
US $143.89 |
||
|
77020A
|
77020A
77020-0K020 Tube Assy, Fuel Suction W/pump & GageFUEL SUCTION W/PUMP & GAGE [10.2005 - 08.2008] TGN10,11..GCC |
77020-0K020 |
US $250.97 |
||
|
77026A
|
77026A
77026-0K020
Tube Sub-Assy, Fuel Evaporation, No.1
[10.2005 - 08.2008] TGN10,11 |
77026-0K020 |
— | ||
|
77035
|
77035
77035-0K240
Cable Sub-Assy, Fuel Lid Lock Control
[10.2005 - 08.2008] KUN10,TGN10,11..GCC |
77035-0K240 |
— | ||
|
77100
|
77100
77001-0K030
Tank Assy, Fuel
[10.2005 - 08.2008] TGN10,11 |
77001-0K030 |
— | ||
|
77144
|
77144
77144-0K010 Retainer, Fuel Pump GaugeFUEL PUMP GAUGE [08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
77144-0K010 |
from US $7.53 |
||
|
77169A
|
77169A
77169-0K010 Gasket, Fuel Suction Tube SetFUEL SUCTION TUBE SET [08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
77169-0K010 |
from US $1.93 |
||
|
77201
|
77201
77201-0K010
Pipe Sub-Assy, Fuel Tank Inlet
[10.2005 - 08.2008] TGN10,11 |
77201-0K010 |
— | ||
|
77204A
|
77204A
77204-0K030
Tube, Fuel Tank Return
[10.2005 - 08.2008] TGN10,11 |
77204-0K030 |
— | ||
|
77209D
|
77209D
77209-0K030
Tube Sub-Assy, Fuel Tank Main
[10.2005 - 08.2008] TGN10,11 |
77209-0K030 |
— | ||
|
77213B
|
77213B
77213-0K050
Hose, Fuel Tank To Filler Pipe
[10.2005 - 08.2008] TGN10,11 |
77213-0K050 |
— | ||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[01.2005 - 12.2008] TGN36..SCB;TGN16..XTR..TH;TGN26,36..DCB..DLX..LA;GGN15,25,TGN1#..5F,5FC;TGN26..ANC OM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA) |
77241-33011 |
from US $0.88 |
||
|
77261E
|
77261E
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[10.2005 - 08.2008] TGN10,11 *H,L=140 |
95333-06020 |
— | ||
| replacement | |||||
|
77261E
|
77261E
95337-06020 Hose, Differential Pressure Control[10.2005 - 08.2008] TGN10,11 *H,L=140 |
95337-06020 |
from US $10.21 |
||
|
77269A
|
77269A
77269-0K010
Hose, Fuel Tank Breather
[10.2005 - 08.2008] KUN10,TGN10,11 |
77269-0K010 |
— | ||
|
77281
|
77281
77281-0K040
Bracket, Fuel Main Tube, No.1
[10.2005 - 08.2008] KUN10,TGN10,11 |
77281-0K040 |
— | ||
| replacement | |||||
|
77281
|
77281
77281-0K070 Bracket, Fuel Main Tube, No.1[10.2005 - 08.2008] KUN10,TGN10,11 |
77281-0K070 |
US $0.99 |
||
|
77281
|
77281
77281-0K070 Bracket, Fuel Main Tube, No.1[12.2010 - 07.2011] KUN10,TGN10,11 |
77281-0K070 |
US $0.99 |
||
|
77285A
|
77285A
77285-0K190 Support, Fuel Return And Main TubeFUEL RETURN AND MAIN TUBE [08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5 F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB. .(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB) |
77285-0K190 |
from US $1.31 |
||
|
77290
|
77290
77290-0K010 Shield Assy, Fuel Tank Filler PipeFUEL TANK FILLER PIPE [08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;KUN26..(DCB,XTR).. (ARL,PHL,TH)..CBU;KUN16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN)..CBU;GGN15,25,KUN 10,35,LAN15,TGN1#..(5F,5FC)..(ARL,GCC,GEN,IDN,PKN)..CBU;KUN15,16,36,T |
77290-0K010 |
US $24.39 |
||
|
77306
|
77306
77306-0K010 Lever Sub-Assy, Fuel Lid Lock OpenFUEL LID LOCK OPEN [08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN16..5F..(A RL,GCC,GEN)..CBU;KUN16,36..(DCB,SCB,XTR)..(LA,TH);KUN26..(DCB,XTR)..(ARL,LA,PHL,TH )..CBU;TGN16,36..(DCB,XTR)..4FC..(ANCOM,PHL,TH);KUN16,25,35,TGN36..(D |
77306-0K010 |
US $8.39 |
||
|
77310A
|
77310A
77300-28010 Cap Assy, Fuel Tank[01.2005 - 12.2008] TGN16..XTR..TH;TGN36..SCB..CBU;TGN26,36..DCB..DLX..LA;TGN36..DCB..(ANCOM,PHL,SA);G GN15,25,TGN1#..(5F,5FC)..CBU;TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU |
77300-28010 |
from US $29 |
||
|
77310A
|
77310A
77300-52030 Cap Assy, Fuel Tank[08.2008 -] GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25.. DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GG N15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB, |
77300-52030 |
from US $26.03 |
||
|
77316
|
77316
77316-16010 Gasket (For Fuel Tank Cap)[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN15..GCC..IV3;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN 36..(DCB,SCB)..5F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX ..LA;TGN36..DCB..(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN |
77316-16010 |
from US $11.06 |
||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[08.2008 -] GGN25..5FC..SA;TGN26..LHD..CBU;KUN15,TGN16..XTR..DLX;GGN15,KUN16..DCB..DLX;GGN25.. DCB..(ANCOM,ARL,LA);TGN16..(ARL,GCC,SA,TH)..CBU;GGN15,KUN16..DCB..(4FC,5FC)..SR;GG N15,KUN16..(SCB,SMT,XTR)..CBU;KUN26..(ARL,GEN,LA,PHL,SA,TH)..CBU;KUN15..(DCB, |
77316-52040 |
from US $4.12 |
||
|
77366
|
77366
77360-0K030 Spring, Fuel Filler Opening Lid HingeFUEL FILLER OPENING LID HINGE [08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5 F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB. .(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB) |
77360-0K030 |
US $3.41 |
||
|
77377
|
77377
77377-0K010 Retainer, Fuel Filler Opening Lid LockFUEL FILLER OPENING LID LOCK [08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;TGN36..SCB..CBU;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5 F;KUN36,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..5F..DLX..LA;TGN36..DCB. .(ANCOM,PHL,SA);TGN26..(ANCOM,GCC,GEN,SA,TH)..CBU;KUN15,16..(DCB,SCB) |
77377-0K010 |
from US $2.07 |
||
|
77601A
|
77601A
77601-0K020
Band Sub-Assy, Fuel Tank, No.1
[10.2005 - 08.2008] KUN10,TGN10,11 |
77601-0K020 |
— | ||
|
77602B
|
77602B
77602-0K020
Band Sub-Assy, Fuel Tank, No.1 Lh
[10.2005 - 08.2008] KUN10,TGN10,11 |
77602-0K020 |
— | ||
|
77603B
|
77603B
77603-0K030
Band Sub-Assy, Fuel Tank, No.2 Rh
[10.2005 - 08.2008] KUN10,TGN10,11..GCC |
77603-0K030 |
— | ||
|
77611A
|
77611A
77653-0K040
Pin (For Fuel Tank Band)
[10.2005 - 08.2006] KUN10,TGN10,11 |
77653-0K040 |
— | ||
| replacement | |||||
|
77611A
|
77611A
77653-0K041 Pin (For Fuel Tank Band)[10.2005 - 08.2006] KUN10,TGN10,11 |
77653-0K041 |
US $13.08 |
||
|
77611A
|
77611A
77653-0K041 Pin (For Fuel Tank Band)[09.2006 - 08.2008] KUN10,TGN10,11..GCC |
77653-0K041 |
US $13.08 |
||
|
77644
|
77644
77644-35030 Bolt, Fuel Tank[10.2005 - 08.2008] KUN10,TGN10,11..GCC |
77644-35030 |
from US $1.44 |
||
|
77652
|
77652
77652-0K030
Cushion, Fuel Tank, No.1
[10.2005 - 08.2008] KUN10,TGN10,11 |
77652-0K030 |
— | ||
|
77652A
|
77652A
77652-0K040
Cushion, Fuel Tank, No.2
[10.2005 - 08.2008] KUN10,TGN10,11..GCC |
77652-0K040 |
— | ||
|
77681
|
77681
77681-0K050
Seat, Fuel Tank Band, Rh
[10.2005 - 08.2008] KUN10,TGN10,11 |
77681-0K050 |
— | ||
|
77682
|
77682
77682-0K010
Seat, Fuel Tank Band, Lh
[10.2005 - 08.2008] KUN10,TGN10,11 |
77682-0K010 |
— | ||
|
77683
|
77683
77683-0K010
Seat, Fuel Tank Band, No.3
[10.2005 - 08.2008] KUN10,TGN10,11..GCC |
77683-0K010 |
— | ||
|
77697
|
77697
77697-0K020
Insulator, Fuel Tank Heat, No.1
[10.2005 - 08.2008] KUN10,TGN10,11 |
77697-0K020 |
— | ||
|
77785
|
77785
77785-0K010
Harness, Fuel Pump
[01.2005 - 12.2008] TGN36..SCB;TGN16..XTR..TH;TGN26,36..DCB..DLX..LA;GGN15,25,TGN1#..5F,5FC;TGN26..ANC OM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA) |
77785-0K010 |
— | ||
| replacement | |||||
|
77785
|
77785
77785-0K011
Harness, Fuel Pump
[01.2005 - 12.2008] TGN36..SCB;TGN16..XTR..TH;TGN26,36..DCB..DLX..LA;GGN15,25,TGN1#..5F,5FC;TGN26..ANC OM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA) |
77785-0K011 |
— | ||
|
90105T0204
|
90105T0204
90105-T0204
New Genuine Part
|
90105-T0204 |
— | ||
|
90301T0035
|
90301T0035
90301-T0035 Ring, O(For Fuel Pump) |
90301-T0035 |
from US $2.77 |
||
|
90464T0003
|
90464T0003
90464-T0003
New Genuine Part
|
90464-T0003 |
— | ||
|
90464T0004
|
90464T0004
90464-T0004
New Genuine Part
|
90464-T0004 |
— | ||
|
90466T0037
|
90466T0037
90466-T0037
CLIP HOSE
|
90466-T0037 |
— | ||
|
90466T0040
|
90466T0040
90466-T0040 Clip(For Fuel Hose No.2) |
90466-T0040 |
US $1.79 |
||
|
90959T1001
|
90959T1001
90959-T1001 CLAMP |
90959-T1001 |
US $1.44 |
||
|
776440K010
|
776440K010
77644-0K010 Bracket, Fuel Tank |
77644-0K010 |
US $0.76 |
||
|
9008054035
|
9008054035
90080-54035
CUSHION
|
90080-54035 |
— | ||
| replacement | |||||
|
9008054035
|
9008054035
90541-06058 CUSHION |
90541-06058 |
from US $2.20 |
||
|
9026904059
|
9026904059
90269-04059 RIVET |
90269-04059 |
from US $0.78 |
||
|
9046046005
|
9046046005
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.69 |
||
|
9046814039
|
9046814039
90468-14039 CLIP |
90468-14039 |
US $1.43 |
||
