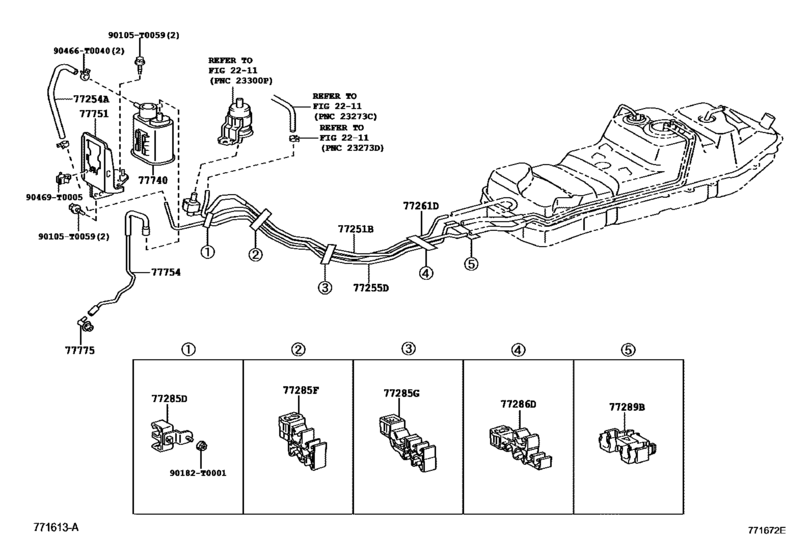

Fuel Tank & Tube ([07.2005 - ] FUEL TUBE (0507- )TGN10,11..CBU) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- TGN11
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- GCC
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 10.2005
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-0K040
Tube, Fuel Main
[10.2005 - 08.2008] TGN10,11 |
77251-0K040 |
— | ||
|
77254A
|
77254A
95333-06030
Hose, Fuel
[01.2005 - 12.2008] TGN36..SCB;TGN26..THDCB;TGN16..XTR..TH;GGN15,25,TGN10,11,15;TGN26..ANCOM,GCC,SA,TH ;TGN26,36..DCB..DLX..LA;TGN16..5F..(ARL,GCC,SA);TGN36..DCB..(ANCOM,PHL,SA) *H,L=220 |
95333-06030 |
— | ||
| replacement | |||||
|
77254A
|
77254A
95338-06030 HOSE, FUEL[01.2005 - 12.2008] TGN36..SCB;TGN26..THDCB;TGN16..XTR..TH;GGN15,25,TGN10,11,15;TGN26..ANCOM,GCC,SA,TH ;TGN26,36..DCB..DLX..LA;TGN16..5F..(ARL,GCC,SA);TGN36..DCB..(ANCOM,PHL,SA) *H,L=220 |
95338-06030 |
from US $10.39 |
||
|
77255D
|
77255D
77255-0K040
Tube, Fuel Return
[10.2005 - 08.2008] TGN10,11 |
77255-0K040 |
— | ||
|
77261D
|
77261D
77261-0K020
Tube, Fuel Tank To Canister
[10.2005 - 08.2008] TGN10,11 |
77261-0K020 |
— | ||
|
77285D
|
77285D
77285-0K020
Clamp, Fuel Tube, No.1
[01.2005 - 12.2008] TGN36..SCB;TGN16..XTR..TH;TGN26,36..DCB..DLX..LA;GGN15,25,TGN1#..5F,5FC;TGN26..ANC OM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA) |
77285-0K020 |
— | ||
|
77285F
|
77285F
77285-0K040
Clamp, Fuel Tube, No.1
[08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
77285-0K040 |
— | ||
|
77285G
|
77285G
77285-0K050
Clamp, Fuel Tube, No.1
[08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
77285-0K050 |
— | ||
|
77286D
|
77286D
77286-0K090
Clamp, Fuel Tube, No.2
[08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
77286-0K090 |
— | ||
|
77289B
|
77289B
77289-0K010
Clamp, Fuel Tube, No.3
[01.2005 - 12.2008] TGN36..SCB;TGN16..XTR..TH;TGN26,36..DCB..DLX..LA;GGN15,25,TGN1#..5F,5FC;TGN26..ANC OM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA) |
77289-0K010 |
— | ||
|
77740
|
77740
77704-0K010 Canister Sub-Assy, CharcoalCHARCOAL [01.2005 - 12.2008] TGN36..SCB;TGN26..THDCB;TGN16..XTR..TH;GGN15,25,TGN10,11,15;TGN26..ANCOM,GCC,SA,TH ;TGN26,36..DCB..DLX..LA;TGN16..5F..(ARL,GCC,SA);TGN36..DCB..(ANCOM,PHL,SA) |
77704-0K010 |
US $185.97 |
||
|
77751
|
77751
77751-0K010
Bracket, Charcoal Canister Base
[01.2005 - 12.2008] TGN36..DLX;TGN26..THDCB;TGN26..ANCOM,GCC,TH;TGN26..DCB..DLX..LA;TGN16..5F..(ARL,GC C);TGN16,36..(DCB,XTR)..(PHL,TH);GGN15,25,TGN10,11,15..ANCOM,ARL,GCC,GEN,IDN |
77751-0K010 |
— | ||
|
77754
|
77754
77754-0K010 Hose, Charcoal Canister Outlet, No.1[01.2005 - 12.2008] TGN36..SCB;TGN26..THDCB;TGN16..XTR..TH;GGN15,25,TGN10,11,15;TGN26..ANCOM,GCC,SA,TH ;TGN26,36..DCB..DLX..LA;TGN16..5F..(ARL,GCC,SA);TGN36..DCB..(ANCOM,PHL,SA) |
77754-0K010 |
US $8.68 |
||
|
77775
|
77775
77775-0K010
Guide, Charcoal Canister Outlet
[01.2005 - 12.2008] TGN36..SCB;TGN26..THDCB;TGN16..XTR..TH;GGN15,25,TGN10,11,15;TGN26..ANCOM,GCC,SA,TH ;TGN26,36..DCB..DLX..LA;TGN16..5F..(ARL,GCC,SA);TGN36..DCB..(ANCOM,PHL,SA) |
77775-0K010 |
— | ||
|
90105T0059
|
90105T0059
90105-T0059
New Genuine Part
|
90105-T0059 |
— | ||
|
90182T0001
|
90182T0001
90182-T0001 New Genuine Part |
90182-T0001 |
US $0.73 |
||
|
90466T0040
|
90466T0040
90466-T0040 Clip(For Fuel Hose No.2) |
90466-T0040 |
US $1.79 |
||
|
90469T0005
|
90469T0005
90469-T0005
Clamp, Washer, No.3
|
90469-T0005 |
— | ||
