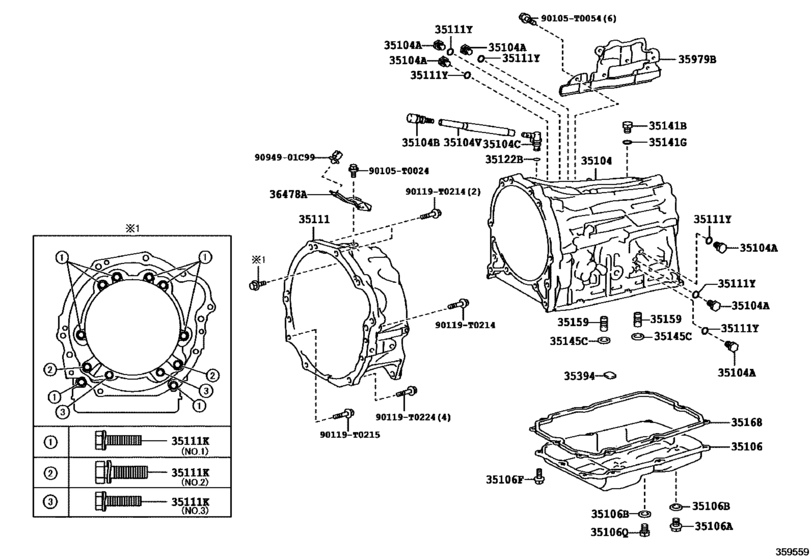

Transmission Case & Oil Pan (Atm) ([05.2015 - ] AC60E,AC60F (1505- )TGN121,126,128,13#..6FC) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- TGN126
- ENGINE
- 2TRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- CAB
- THDCB
- Model
- HILUX
- From
- 05.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- Hilux
- Model Mark
- M
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35104
|
35104
35104-71020 Case Sub-Assy, Automatic Transmission[05.2015 - 08.2017] GUN125,126,13#,TGN121,126,136..(THDCB,THSCB,THXTR)..6FC |
35104-71020 |
US $929.51 |
||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[05.2015 -] GGN12#,135,GUN125,126,13#,TGN121,126,128,13#..6FC |
90341-08001 |
from US $1.52 |
||
|
35104B
|
35104B
90930-03211 Plug, Breather, No.1 (Atm)[05.2015 -] KUN126..5FC..(GEN,LA,PKN,SA);GGN12#,135,GUN125,126,13#,KUN125,TGN121,126,128,13#.. ATM |
90930-03211 |
US $2.97 |
||
|
35104C
|
35104C
90930-03220 Plug, Breather, No.2 (Atm)[05.2015 -] GGN12#,135,GUN125,126,13#,TGN121,126,128,13#..6FC |
90930-03220 |
US $2.48 |
||
|
35104V
|
35104V
90447-11078
Hose (For Breather Plug)
[05.2015 -] TGN121,126,128,13#..6FC |
90447-11078 |
— | ||
|
35106
|
35106
35106-71050 Pan Sub-Assy, Automatic Transmission Oil[05.2015 - 08.2017] GUN125,126,13#,TGN121,126,136..(THDCB,THSCB,THXTR)..6FC |
35106-71050 |
from US $64.18 |
||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[05.2015 -] KUN126..5FC..(GEN,LA,PKN,SA);GGN12#,135,GUN125,126,13#,KUN125,TGN121,126,128,13#.. ATM |
90341-10011 |
from US $1.79 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[05.2015 -] KUN126..5FC..(GEN,LA,PKN,SA);GGN12#,135,GUN125,126,13#,KUN125,TGN121,126,128,13#.. ATM |
35178-30010 |
from US $1.77 |
||
|
35106F
|
35106F
90119-06A02 Bolt (For Automatic Transmission Oil Pan)[05.2015 -] GGN12#,135,GUN125,126,13#,TGN121,126,128,13#..6FC |
90119-06A02 |
US $1.08 |
||
|
35106Q
|
35106Q
90341-10021 Plug, Drain(Hv) (Check)[05.2015 -] KUN126..5FC..(GEN,LA,PKN,SA);GGN12#,135,GUN125,126,13#,KUN125,TGN121,126,128,13#.. ATM |
90341-10021 |
from US $2.07 |
||
|
35111
|
35111
35111-71040 Housing, Automatic Transmission[05.2015 - 08.2017] TGN121,126,136..(THDCB,THSCB)..6FC |
35111-71040 |
US $282.46 |
||
|
35111K
|
35111K
90119-10232 Bolt (For Transmission Housing & Case Setting)[05.2015 -] GGN12#,135,GUN125,126,13#,TGN121,126,128,13#..6FC *10-1.5PX35-30,NO.1:REFER ILLUST. |
90119-10232 |
US $1.97 |
||
|
35111K
|
35111K
90119-10947 Bolt (For Transmission Housing & Case Setting)[05.2015 -] KUN126..5FC..(GEN,LA,PKN,SA);GGN12#,135,GUN125,126,13#,KUN125,TGN121,126,128,13#.. ATM *10-1.50PX35-29.3,NO.3:REFER ILLUST. |
90119-10947 |
from US $0.96 |
||
|
35111K
|
35111K
90119-12378 Bolt (For Transmission Housing & Case Setting)[05.2015 -] KUN126..5FC..(GEN,LA,PKN,SA);GGN12#,135,GUN125,126,13#,KUN125,TGN121,126,128,13#.. ATM *12-1.75PX38-30,NO.2:REFER ILLUST. |
90119-12378 |
from US $1.52 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[05.2015 - 08.2017] GUN125,126,13#,TGN121,126,136..(THDCB,THSCB,THXTR)..6FC |
90301-06196 |
from US $2.24 |
||
|
35122B
|
35122B
90301-08015 Ring, O (For Breather Plug)[05.2015 - 08.2017] GUN125,126,13#,TGN121,126,136..(THDCB,THSCB,THXTR)..6FC |
90301-08015 |
from US $2.13 |
||
|
35141B
|
35141B
90341-14011 Plug, Automatic Transmission Case[05.2015 -] KUN126..5FC..(GEN,LA,PKN,SA);GGN12#,135,GUN125,126,13#,KUN125,TGN121,126,128,13#.. ATM |
90341-14011 |
from US $3.22 |
||
|
35141G
|
35141G
90301-11030 Ring, O(For Oil Cooler Tube Union)[05.2015 - 08.2017] GUN125,126,13#,TGN121,126,136..(THDCB,THSCB,THXTR)..6FC |
90301-11030 |
from US $2.15 |
||
|
35145C
|
35145C
35145-60020 Gasket, Transaxle Case[05.2015 -] GGN12#,135,GUN125,126,13#,TGN121,126,128,13#..6FC |
35145-60020 |
from US $6.45 |
||
|
35159
|
35159
35159-71010 Gasket, Brake Drum[05.2015 -] GGN12#,135,GUN125,126,13#,TGN121,126,128,13#..6FC |
35159-71010 |
US $6.99 |
||
|
35168
|
35168
35168-71010 Gasket, Automatic Transmission Oil Pan[05.2015 -] GGN12#,135,GUN125,126,13#,TGN121,126,128,13#..6FC |
35168-71010 |
from US $22.85 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[05.2015 -] KUN126..5FC..(GEN,LA,PKN,SA);GGN12#,135,GUN125,126,13#,KUN125,TGN121,126,128,13#.. ATM |
35394-30011 |
from US $5.62 |
||
|
35979B
|
35979B
35979-0K010
Insulator, Transmission, Rh
[05.2015 -] GGN12#,135,GUN125,126,13#,TGN121,126,128,13#..6FC |
35979-0K010 |
— | ||
|
36478A
|
36478A
36478-0K040
Bracket, Transmission Breather
[05.2015 -] TGN121,126,128,13#..6FC |
36478-0K040 |
— | ||
|
90105T0024
|
90105T0024
90105-T0024
New Genuine Part
|
90105-T0024 |
— | ||
|
90105T0054
|
90105T0054
90105-T0054
New Genuine Part
|
90105-T0054 |
— | ||
|
90119T0214
|
90119T0214
90119-T0214
Bolt(For Transaxle Case & Engine Setting)
|
90119-T0214 |
— | ||
|
90119T0215
|
90119T0215
90119-T0215
Bolt(For Transaxle Case & Engine Setting)
|
90119-T0215 |
— | ||
|
90119T0224
|
90119T0224
90119-T0224
New Genuine Part
|
90119-T0224 |
— | ||
|
9094901C99
|
9094901C99
90949-01C99 Clip, Radiator Hose, No.5 |
90949-01C99 |
US $1.31 |
