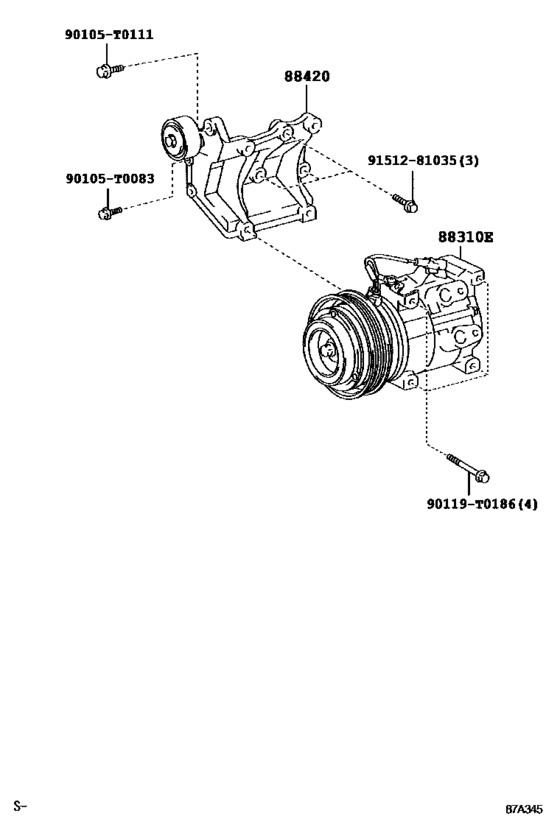

Heating & Air Conditioning - Compressor ([10.2008 - ] (0810- )TGN15,16,26,36..SA) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- TGN15
- grade
- DLX
- ENGINE
- 1TRFE
- DESTINATION
- SA
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 04.2005
- To
- 08.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88310E
|
88310E
88310-0K120
Compressor, W/magnet Clutch
[04.2005 - 11.2007] TGN26,36..RHD..SA; TGN15,16..SA;TGN26..DCB..SA SINGLE AIR CONDITIONER |
88310-0K120 |
— | ||
| replacement | |||||
|
88310E
|
88310E
88310-0K123
Compressor, W/magnet Clutch
[04.2005 - 11.2007] TGN26,36..RHD..SA; TGN15,16..SA;TGN26..DCB..SA SINGLE AIR CONDITIONER |
88310-0K123 |
— | ||
|
88310E
|
88310E
88310-0K121
Compressor, W/magnet Clutch
[12.2007 - 03.2008] TGN26,36..RHD..SA; TGN15,16..SA;TGN26..DCB..SA SINGLE AIR CONDITIONER |
88310-0K121 |
— | ||
| replacement | |||||
|
88310E
|
88310E
88310-0K123
Compressor, W/magnet Clutch
[12.2007 - 03.2008] TGN26,36..RHD..SA; TGN15,16..SA;TGN26..DCB..SA SINGLE AIR CONDITIONER |
88310-0K123 |
— | ||
|
88310E
|
88310E
88310-0K122
Compressor, W/magnet Clutch
[04.2008 - 10.2008] TGN26,36..RHD..SA; TGN15,16..SA;TGN26..DCB..SA SINGLE AIR CONDITIONER |
88310-0K122 |
— | ||
| replacement | |||||
|
88310E
|
88310E
88310-0K123
Compressor, W/magnet Clutch
[04.2008 - 10.2008] TGN26,36..RHD..SA; TGN15,16..SA;TGN26..DCB..SA SINGLE AIR CONDITIONER |
88310-0K123 |
— | ||
|
88420
|
88420
88420-0K060
Pulley Assy, Idle, W/bracket
[10.2007 - 12.2007] TGN15..SA AIR CONDITIONER(DEALER OPTION) |
88420-0K060 |
— | ||
|
90105T0083
|
90105T0083
90105-T0083
BOLT FLANGE
|
90105-T0083 |
— | ||
|
90105T0111
|
90105T0111
90105-T0111
New Genuine Part
|
90105-T0111 |
— | ||
|
90119T0186
|
90119T0186
90119-T0186
BOLT WWASHER
|
90119-T0186 |
— | ||
|
9151281035
|
9151281035
91512-81035 BOLT |
91512-81035 |
from US $0.96 |
||
