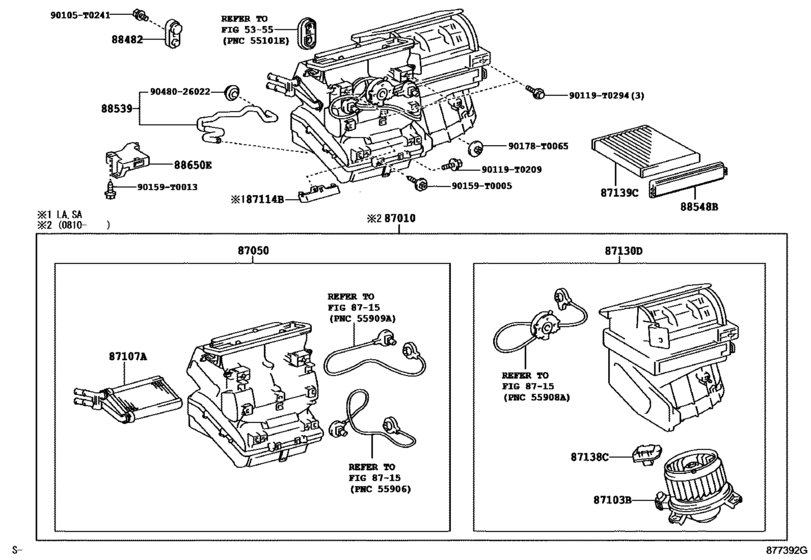

Heating & Air Conditioning - Cooler Unit ([08.2004 - ] FRONT---MANUAL HEATER (0408- )LHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2006 - 2011
- Sales region
- U.S.A.
- Frame
- TGN16
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- GCC
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2006
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- LHD
- Fuel Induction
- HTWC
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-0K020 Radiator Assy, Air ConditionerAIR CONDITIONER [07.2005 - 08.2008] KUN2#,35..THDCB;TGN26..THDCB..DLX;KUN10,15,25,TGN1#,26..GCC |
87050-0K020 |
US $1,071.66 |
||
|
87103B
|
87103B
87103-0K091
Motor Sub-Assy, Blower W/fan
[08.2006 - 08.2008] KUN10,15,2#,35,TGN1#,26,36..LHD..(GCC,GEN,PHL) |
87103-0K091 |
— | ||
| replacement | |||||
|
87103B
|
87103B
87103-0K092 Motor Sub-Assy, Blower W/fan[08.2006 - 08.2008] KUN10,15,2#,35,TGN1#,26,36..LHD..(GCC,GEN,PHL) |
87103-0K092 |
US $160.68 |
||
|
87103B
|
87103B
87103-0K200 Motor Sub-Assy, Blower W/fanBLOWER W/FAN [08.2008 - 07.2011] KUN10,15,2#,35,TGN1#,26..LHD..(GCC,GEN) |
87103-0K200 |
US $182.48 |
||
|
87107A
|
87107A
87107-02290 Unit Sub-Assy, Heater RadiatorHEATER RADIATOR [10.2009 - 08.2011] KUN26..GEN;KUN26..XTR..SA;GGN15..DCB..DLX;GGN25..DCB..ARL;GGN15..DCB..5FC..SR;KUN2 6..(SCB,XTR)..ARL;KUN15,25,TGN15,16,26..ARL,GCC;KUN15,25,36,TGN26..(THDCB,THSCB,XT R)..(GEN,SA);GGN15,KUN10,16,35,TGN10,11..(SCB,THDCB,XTR)..(ARL,GCC,GE |
87107-02290 |
US $365.48 |
||
|
87107A
|
87107A
87107-0K010 Unit Sub-Assy, Heater RadiatorHEATER RADIATOR [02.2005 - 08.2008] KUN26,35..ARL,GEN;KUN25,TGN26..THDCB,THSCB;GGN15,25,KUN1#,25,TGN1#,26..ARL,GCC; KUN15,25,TGN15,16,26..(DCB,SCB,XTR)..GEN FRONT HEATER-WITH |
87107-0K010 |
US $154.22 |
||
|
87130D
|
87130D
87130-0K172 Blower Assy[08.2006 - 08.2008] KUN10,15,25,TGN1#,26..GCC |
87130-0K172 |
US $474.96 |
||
|
87130D
|
87130D
87130-0K173 Blower Assy[08.2008 - 07.2011] KUN10,15,25,TGN1#,26..GCC |
87130-0K173 |
US $414.85 |
||
|
87138C
|
87138C
87138-0K200 Resistor, BlowerBLOWER [07.2005 - 08.2008] KUN10,15,25,TGN1#,26..GCC |
87138-0K200 |
US $48.53 |
||
|
87139C
|
87139C
87139-06080 Filter, Clean AirCLEAN AIR [08.2006 - 02.2012] KUN15..PHL..CBU;KUN16,TGN16..XTR..TH;TGN16..5F..(ARL,GCC);KUN25..(DCB,XTR)..(GCC,T H);KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,PKN,TH);GGN15,25,KU N10,26,36,LAN15,TGN11,15,26,36..(DCB,SCB,XTR)..(ARL,GCC,PHL,PKN,TH) |
87139-06080 |
US $44.82 |
||
|
87139C
|
87139C
87139-52020 Filter, Clean Air[08.2008 - 12.2009] GGN25..ARL;GGN25..5FC..SA;TGN26..LHD..(DCB,SCB)..(GCC,GEN,SA);GGN15,35,KUN1#,2#,3# ,LAN15,25,35,TGN1#,36..(DCB,SCB,XTR)..(ARL,GCC,GEN,SA) |
87139-52020 |
from US $25.92 |
||
|
88482
|
88482
88482-0K010
Cap, Cooler
[09.2004 - 08.2008] KUN2#,35,TGN26..THDCB..DLX;GGN15,25,KUN1#,2#,TGN1#,26..ARL,GCC |
88482-0K010 |
— | ||
|
88539
|
88539
88539-0K010 Hose, Cooler Unit Drain, No.1COOLER UNIT DRAIN, NO.1 [11.2004 - 08.2008] KUN10,15,2#,35,TGN1#,26,36..LHD..(GCC,GEN,PHL) |
88539-0K010 |
US $19.99 |
||
|
88548B
|
88548B
88548-0K020 Case, Air FilterAIR FILTER [08.2006 - 12.2008] KUN35,TGN16..5F..(GCC,GEN);KUN10,15,2#,TGN10,11,15,26,36..LHD..(GCC,GEN,PHL) |
88548-0K020 |
US $10.89 |
||
|
88650E
|
88650E
88650-0K010 Amplifier Assy, Air Conditioner, No.1AIR CONDITIONER, NO.1 [02.2005 - 08.2008] KUN25,TGN26..THDCB..DLX;GGN15,25,KUN10,15,25,TGN1#,26..ARL,GCC;KUN16,26,35..(SCB,T HDCB,XTR)..(ARL,GEN); KUN15,25,TGN15,16,26..(DCB,SCB,XTR)..GEN FRONT HEATER-W(EVAPO)&SINGLE AIR CONDITIONER |
88650-0K010 |
US $198.99 |
||
|
90105T0241
|
90105T0241
90105-T0241
BOLTFLANGE
|
90105-T0241 |
— | ||
|
90119T0209
|
90119T0209
90119-T0209
BOLT WWASHER
|
90119-T0209 |
— | ||
|
90119T0294
|
90119T0294
90119-T0294 BOLT WWASHER |
90119-T0294 |
US $0.73 |
||
|
90159T0005
|
90159T0005
90159-T0005 New Genuine Part |
90159-T0005 |
US $0.87 |
||
|
90159T0013
|
90159T0013
90159-T0013
New Genuine Part
|
90159-T0013 |
— | ||
|
90178T0065
|
90178T0065
90178-T0065
New Genuine Part
|
90178-T0065 |
— | ||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
