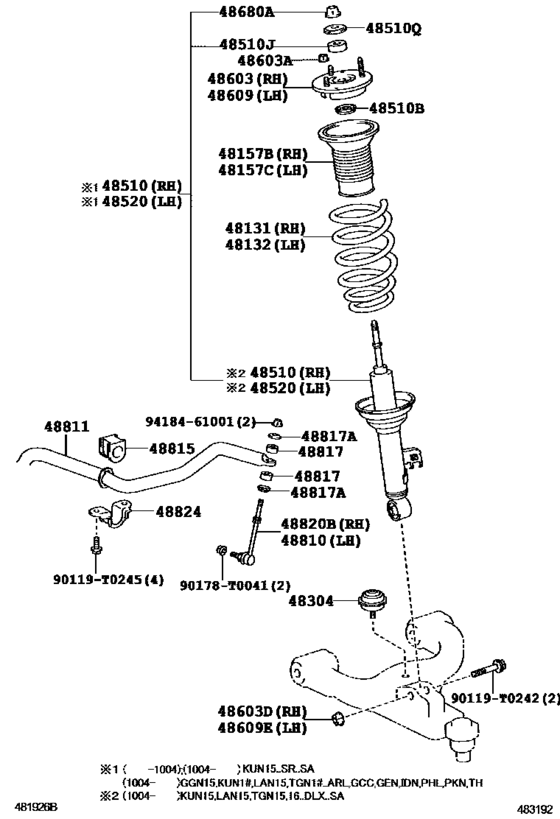

Front Spring & Shock Absorber ([08.2004 - ] (0408- )GGN15,KUN1#,LAN15,TGN1#) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- TGN16
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- ARL
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 02.2005
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-0K030
Spring, Front Coil, Rh
[08.2004 - 08.2008] GGN15,KUN16..XTR;KUN10,TGN15,16..SCB..(ARL,GCC,GEN) |
48131-0K030 |
— | ||
|
48132
|
48132
48131-0K030
Spring, Front Coil, Rh
[08.2004 - 08.2008] GGN15,KUN16..XTR;KUN10,TGN15,16..SCB..(ARL,GCC,GEN) |
48131-0K030 |
— | ||
|
48157B
|
48157B
48157-0K010 Insulator, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [08.2004 - 02.2012] KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX, SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC) ..(ARL,GCC,GEN,PKN,SA) |
48157-0K010 |
from US $15.87 |
||
|
48157C
|
48157C
48157-0K010 Insulator, Front Coil Spring, Upper RhFRONT COIL SPRING, UPPER RH [08.2004 - 02.2012] KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX, SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC) ..(ARL,GCC,GEN,PKN,SA) |
48157-0K010 |
from US $15.87 |
||
|
48304
|
48304
48304-0K010 Bumper Sub-Assy, Front Spring, No.1FRONT SPRING, NO.1 [08.2004 - 02.2012] KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX, SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC) ..(ARL,GCC,GEN,PKN,SA) |
48304-0K010 |
from US $17.62 |
||
|
48510
|
48510
48510-09G80
Absorber Assy, Shock, Front Rh
[09.2004 - 09.2005] GGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,TH) MARK 48510-0K020 |
48510-09G80 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-09Q20 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [09.2004 - 09.2005] GGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,TH) MARK 48510-0K020 |
48510-09Q20 |
US $116.98 |
||
|
48510
|
48510
48510-09Q20 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [09.2005 - 08.2008] GGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,IDN,TH) MARK 48510-0K021 |
48510-09Q20 |
US $116.98 |
||
|
48510
|
48510
48510-09Y90 Absorber Assy, Shock, Front RhSHOCK, FRONT RH [11.2008 - 07.2011] GGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,IDN,PHL,TH) MARK 48510-0K500 |
48510-09Y90 |
US $76.32 |
||
|
48510B
|
48510B
90948-T2003 Retainer, Cushion, No.1(For Front Shock Absorber)CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) [08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR )..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TG N16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KU |
90948-T2003 |
US $5.19 |
||
|
48510J
|
48510J
90948-T1001 Cushion, Front Shock Absorber, No.1FRONT SHOCK ABSORBER, NO.1 [08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR )..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TG N16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KU |
90948-T1001 |
US $4.56 |
||
|
48510Q
|
48510Q
90948-T2004 Retainer, Cushion, No.3(For Front Shock Absorber)CUSHION, NO.3(FOR FRONT SHOCK ABSORBER) [08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR )..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TG N16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KU |
90948-T2004 |
US $8.68 |
||
|
48520
|
48520
48520-09C60
Absorber Assy, Shock, Front Lh
[09.2004 - 09.2005] GGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,TH) MARK 48520-0K020 |
48520-09C60 |
— | ||
| replacement | |||||
|
48520
|
48520
48520-09J70 Absorber Assy, Shock, Front LhSHOCK, FRONT LH [09.2004 - 09.2005] GGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,TH) MARK 48520-0K020 |
48520-09J70 |
US $126.34 |
||
|
48520
|
48520
48520-09J70 Absorber Assy, Shock, Front LhSHOCK, FRONT LH [09.2005 - 08.2008] GGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,IDN,TH) MARK 48520-0K021 |
48520-09J70 |
US $126.34 |
||
|
48520
|
48520
48520-09R70 Absorber Assy, Shock, Front LhSHOCK, FRONT LH [11.2008 - 07.2011] GGN15,KUN1#,TGN1#..SCB..(ARL,GCC,GEN,IDN,PHL,TH) MARK 48520-0K500 |
48520-09R70 |
US $71.12 |
||
|
48603
|
48603
48609-0K010 Support Sub-Assy, Front Suspension, RhFRONT SUSPENSION, RH [08.2004 - 02.2012] KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX, SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC) ..(ARL,GCC,GEN,PKN,SA) |
48609-0K010 |
US $80.69 |
||
|
48603A
|
48603A
90178-T0050 Nut(For Front Suspension Support)[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR )..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TG N16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KU |
90178-T0050 |
US $0.92 |
||
|
48603D
|
48603D
90178-T0048 Nut(For Front Support To Front Shock Absorber Rh)[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR )..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TG N16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KU |
90178-T0048 |
US $1.13 |
||
|
48609
|
48609
48609-0K010 Support Sub-Assy, Front Suspension, RhFRONT SUSPENSION, RH [08.2004 - 02.2012] KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX, SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC) ..(ARL,GCC,GEN,PKN,SA) |
48609-0K010 |
US $80.69 |
||
|
48609E
|
48609E
90178-T0048 Nut(For Front Support To Front Shock Absorber Rh)[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR )..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TG N16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KU |
90178-T0048 |
US $1.13 |
||
|
48680A
|
48680A
94188-01241 Nut(For Front Support To Front Shock Absorber)[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR )..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TG N16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KU |
94188-01241 |
from US $0.90 |
||
|
48810
|
48810
48820-0K010 Link Assy, Front Stabilizer, Lh[08.2004 - 02.2012] KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX, SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC) ..(ARL,GCC,GEN,PKN,SA) |
48820-0K010 |
US $77.71 |
||
| replacement | |||||
|
48810
|
48810
48820-0K011 488200K011[08.2004 - 02.2012] KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX, SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC) ..(ARL,GCC,GEN,PKN,SA) |
48820-0K011 |
from US $56.43 |
||
|
48811
|
48811
48811-0K011
Bar, Stabilizer, Front
[08.2004 - 02.2012] KUN16,TGN10..SCB..DLX;KUN16,TGN16..(SCB,XTR)..SR;TGN16..(SCB,XTR)..5F..DLX..(ARL,G CC,GEN);GGN15,KUN10,15,LAN15,TGN11,15..(SCB,XTR)..(ARL,GCC,GEN,PKN,TH) |
48811-0K011 |
— | ||
|
48815
|
48815
48815-0K070 Bush, Front Stabilizer Bar, No.1FRONT STABILIZER BAR, NO.1 [08.2004 - 02.2012] KUN15..SCB..SA;KUN16,TGN10..SCB..DLX;KUN16,TGN16..(SCB,XTR)..SR;KUN15..(SCB,XTR).. (GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15..SCB,XTR;TGN16..(SCB,XTR)..5F..DLX..(A RL,GCC,GEN,SA) |
48815-0K070 |
US $12.23 |
||
|
48817
|
48817
90948-T1002 Cushion, Front StabilizerFRONT STABILIZER [08.2004 - 02.2012] KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX, SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC) ..(ARL,GCC,GEN,PKN,SA) |
90948-T1002 |
US $2.30 |
||
|
48817A
|
48817A
90948-T2002 Retainer, Cushion, No.1(For Front Stabilizer Bar)CUSHION, NO.1(FOR FRONT STABILIZER BAR) [08.2004 - 02.2012] KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX, SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC) ..(ARL,GCC,GEN,PKN,SA) |
90948-T2002 |
US $19.31 |
||
|
48820B
|
48820B
48820-0K010 Link Assy, Front Stabilizer, Lh[08.2004 - 02.2012] KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX, SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC) ..(ARL,GCC,GEN,PKN,SA) |
48820-0K010 |
US $77.71 |
||
| replacement | |||||
|
48820B
|
48820B
48820-0K011 488200K011[08.2004 - 02.2012] KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX, SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC) ..(ARL,GCC,GEN,PKN,SA) |
48820-0K011 |
from US $56.43 |
||
|
48824
|
48824
48824-0K010
Bracket, Stabilizer, Front
[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR )..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TG N16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KU |
48824-0K010 |
— | ||
| replacement | |||||
|
48824
|
48824
48824-KK030
48824KK030
[08.2004 - 02.2012] KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR )..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;KUN35,TGN36..SCB,THDCB;KUN16,36,TG N16..XTR..TH;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KU |
48824-KK030 |
— | ||
|
90119T0242
|
90119T0242
90119-T0242 BOLT WWASHER |
90119-T0242 |
from US $3.35 |
||
|
90119T0245
|
90119T0245
90119-T0245 BOLT WWASHER |
90119-T0245 |
US $1.29 |
||
|
90178T0041
|
90178T0041
90178-T0041 NUT FLANGE |
90178-T0041 |
US $0.96 |
||
|
9418461001
|
9418461001
94184-61001 Nut(For Front Stabilizer Bar) |
94184-61001 |
from US $0.78 |
||
