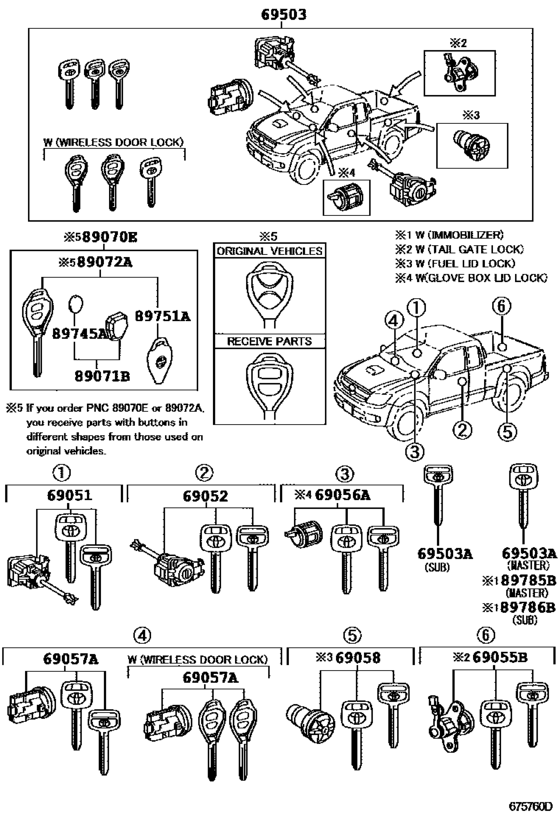

Lock Cylinder Set ([08.2004 - 04.2006] (0408-0604)) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- TGN16
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- ARL
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 02.2005
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-0K011 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [11.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
69051-0K011 |
US $37.81 |
||
|
69052
|
69052
69052-0K010 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
69052-0K010 |
US $33.56 |
||
|
69056A
|
69056A
69056-0K010 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
69056-0K010 |
US $42.69 |
||
|
69057A
|
69057A
69057-04030 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [02.2005 - 12.2008] KUN16,TGN16..(DCB,SCB)..5F..ARL;GGN15,25,KUN2#,35,TGN26,36..DLX..(ANCOM,ARL) |
69057-04030 |
from US $174.72 |
||
|
69057A
|
69057A
69057-0K160
Cylinder & Key Set, Ignition Switch Lock
[08.2009 -] KUN25..ANCOM,MA;TGN26..SCB..(ANCOM,LA);GGN25,TGN26..DCB..DLX..(ANCOM,ARL);GGN15,KU N16,26,35,TGN16,36..DLX..(ANCOM,ARL); TGN36..DLX..LA;KUN25,35,TGN26..THDCB..DLX ANTI-THEFT SYSTEM-IMMOBILIZER; TGN36..4FC..DLX..LA ANTI-THEFT SYSTEM-IMMOBI & TR |
69057-0K160 |
— | ||
|
69058
|
69058
69058-0K020
Cylinder & Key Set, Fuel Filler Lid
[02.2005 - 08.2008] GGN15,25,TGN16..IV3 |
69058-0K020 |
— | ||
|
69503
|
69503
69005-0K201
Cylinder Set, Lock
[02.2005 - 12.2008] GGN15,25,TGN16,26,36..(5F,5FC)..(ANCOM,ARL)..IV3 |
69005-0K201 |
— | ||
|
69503
|
69503
69005-0K202
Cylinder Set, Lock
[08.2009 - 04.2012] GGN15,25,TGN16,26,36..(ANCOM,ARL,LA)..IV3 |
69005-0K202 |
— | ||
|
89785B
|
89785B
89785-08020 Transmitter, Transponder Key MasterTRANSPONDER KEY MASTER [02.2005 - 08.2008] GGN15,25,KUN16,26,TGN16..DLX..ARL |
89785-08020 |
from US $30.77 |
||
|
89785B
|
89785B
89785-08040
Transmitter, Transponder Key Master
[08.2009 - 04.2012] KUN25..ANCOM,MA;TGN26..SCB..(ANCOM,LA);TGN26..DCB..DLX..ANCOM;GGN15,25,KUN16,26,35 ,TGN16,36..DLX..(ANCOM,ARL) MARK G |
89785-08040 |
— | ||
|
89786B
|
89786B
89786-08020 Transmitter, Transponder Key SubTRANSPONDER KEY SUB [08.2004 - 12.2008] KUN16..DCB..TH;TGN26..SR..GEN;TGN26..ANCOM,TH;KUN2#..ANCOM,ARL;KUN35..DLX..(ANCOM, SA);KUN36..5F..SR..(LA,SA);GGN15,25,TGN15,36..ANCOM,ARL,SA;KUN26..(DCB,THDCB)..5F. .SR..(GEN,LA,SA);KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,TH);KUN15 |
89786-08020 |
from US $45.53 |
||
|
89786B
|
89786B
89786-08040 Transmitter, Transponder Key SubTRANSPONDER KEY SUB [08.2009 - 04.2012] KUN25..ANCOM,MA;TGN26..SCB..(ANCOM,LA);TGN26..DCB..DLX..ANCOM;GGN15,25,KUN16,26,35 ,TGN16,36..DLX..(ANCOM,ARL) BLANK KEY,MARK G; KUN26..THDCB..SR;KUN25..RHD..SCB..SA;KUN26,TGN16..4FC..TH;KUN15,35,TGN15..RHD..SA; KUN26,36..SR..(ARL,LA,S |
89786-08040 |
US $87.36 |
