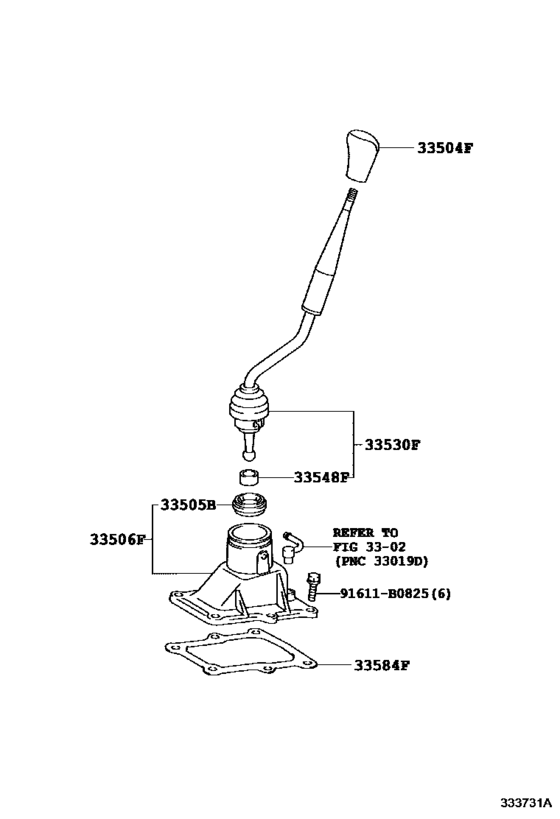

Shift Lever & Retainer ([08.2008 - ] (0808- )KUN16,36..5F..ARL,TH ; (0808- )GGN 15,KUN15,35,TGN11,16..5F..HDCR,HTWC ..ARL,GCC,GEN,PHL ,TH) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- TGN16
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- ARL
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 02.2005
- To
- 07.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-0D050-B0
Knob Sub-Assy, Shift Lever
[08.2004 - 12.2011] KUN25..SCB..MA;KUN15..XTR..DLX;KUN25..DCB..5F..SR;KUN25..ANCOM,GEN,LA;TGN26..DCB.. DLX..LA;KUN15..SR..DCR..(PHL,TH);KUN26..(THDCB,XTR)..5F..(ARL,GEN);KUN26..(DCB,SCB )..5F..(ARL,LA,TH);KUN15,TGN10,36..5F..DLX..(ANCOM,IDN,LA,PHL);GGN15, |
33504-0D050-B0 |
— | ||
|
33505B
|
33505B
33505-0K010 Seat Sub-Assy, Shift LeverSHIFT LEVER [08.2009 - 08.2011] KUN26,36..XTR..SA;KUN16,26,36..5F..(ARL,GEN,IDN,PHL,TH);GGN15,25,KUN15,25,35,TGN11 ,16,26..5F..(HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH) TYPE B:REFER 33-01 |
33505-0K010 |
from US $29.13 |
||
|
33505B
|
33505B
33505-35030 Seat Sub-Assy, Shift Lever[08.2004 - 05.2005] GGN15,25..5F..ARL TYPE C:REFER 33-01; KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
33505-35030 |
from US $23.18 |
||
| replacement | |||||
|
33505B
|
33505B
33505-0K010 Seat Sub-Assy, Shift LeverSHIFT LEVER [08.2004 - 05.2005] GGN15,25..5F..ARL TYPE C:REFER 33-01; KUN16,2#..XTR..TH;KUN16,2#,TGN16,26..5F..(ARL,GEN,PHL) TYPE A:REFER 33-01 |
33505-0K010 |
from US $29.13 |
||
|
33506F
|
33506F
33570-0K020
Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
[05.2005 - 08.2008] KUN15..XTR..HDCR;GGN15,KUN16,35,TGN11,16..5F..(ARL,GCC,GEN) TYPE B:REFER 33-01 |
33570-0K020 |
— | ||
| replacements | |||||
|
33506F
|
33506F
33019-71010
Breather Sub-Assy, Transmission
[05.2005 - 08.2008] KUN15..XTR..HDCR;GGN15,KUN16,35,TGN11,16..5F..(ARL,GCC,GEN) TYPE B:REFER 33-01 |
33019-71010 |
— | ||
|
33506F
|
33506F
33019-71020
Breather Sub-Assy, Transmission
[05.2005 - 08.2008] KUN15..XTR..HDCR;GGN15,KUN16,35,TGN11,16..5F..(ARL,GCC,GEN) TYPE B:REFER 33-01 |
33019-71020 |
— | ||
|
33506F
|
33506F
33019-71060 Breather Sub-Assy, Transmission[05.2005 - 08.2008] KUN15..XTR..HDCR;GGN15,KUN16,35,TGN11,16..5F..(ARL,GCC,GEN) TYPE B:REFER 33-01 |
33019-71060 |
US $15.64 |
||
|
33506F
|
33506F
33570-0K030
Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
[05.2005 - 08.2008] KUN15..XTR..HDCR;GGN15,KUN16,35,TGN11,16..5F..(ARL,GCC,GEN) TYPE B:REFER 33-01 |
33570-0K030 |
— | ||
|
33506F
|
33506F
36149-60070 2 Way(For Transmission Breather Hose)[05.2005 - 08.2008] KUN15..XTR..HDCR;GGN15,KUN16,35,TGN11,16..5F..(ARL,GCC,GEN) TYPE B:REFER 33-01 |
36149-60070 |
US $5.91 |
||
|
33506F
|
33506F
87616-0K010
Clamp, Cooling Unit Case
[05.2005 - 08.2008] KUN15..XTR..HDCR;GGN15,KUN16,35,TGN11,16..5F..(ARL,GCC,GEN) TYPE B:REFER 33-01 |
87616-0K010 |
— | ||
|
33506F
|
33506F
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.2005 - 08.2008] KUN15..XTR..HDCR;GGN15,KUN16,35,TGN11,16..5F..(ARL,GCC,GEN) TYPE B:REFER 33-01 |
96132-51000 |
from US $1.48 |
||
|
33506F
|
33506F
33570-0K030
Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
[08.2008 - 08.2011] KUN36..XTR;KUN16,36..5F..(ARL,TH);GGN15,KUN15,35,TGN11,16..5F..(HDCR,HTWC)..(ARL,G CC,GEN,PHL,TH) TYPE B:REFER 33-01 |
33570-0K030 |
— | ||
|
33506F
|
33506F
33570-0K040
Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
[06.2009 - 04.2012] TGN11,16..5F..(ARL,GCC,GEN) TYPE C:REFER 33-01 |
33570-0K040 |
— | ||
|
33506F
|
33506F
33570-71010 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)[08.2004 - 05.2005] KUN16..XTR;KUN16,TGN16..ARL,GEN TYPE A:REFER 33-01 |
33570-71010 |
US $66.83 |
||
|
33506F
|
33506F
33570-71030
Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
[08.2008 - 07.2010] KUN16,36..5F;TGN36..5F..CBU;TGN36..ANCOM..IV3;GGN15,KUN15,35,TGN11,16..5F..(HDCR,H TWC) TYPE D:REFER 33-01 |
33570-71030 |
— | ||
| replacement | |||||
|
33506F
|
33506F
33570-0K030
Retainer Sub-Assy, Control Shift Lever (For Floor Shift)
[08.2008 - 07.2010] KUN16,36..5F;TGN36..5F..CBU;TGN36..ANCOM..IV3;GGN15,KUN15,35,TGN11,16..5F..(HDCR,H TWC) TYPE D:REFER 33-01 |
33570-0K030 |
— | ||
|
33530F
|
33530F
33530-0K120
Lever Assy, Shift (For Floor Shift)
[02.2005 - 11.2005] TGN16,36..RHD..5F |
33530-0K120 |
— | ||
| replacement | |||||
|
33530F
|
33530F
33530-0K122
Lever Assy, Shift (For Floor Shift)
[02.2005 - 11.2005] TGN16,36..RHD..5F |
33530-0K122 |
— | ||
|
33530F
|
33530F
33530-0K121
Lever Assy, Shift (For Floor Shift)
[12.2005 - 04.2006] TGN16,36..RHD..5F |
33530-0K121 |
— | ||
| replacement | |||||
|
33530F
|
33530F
33530-0K122
Lever Assy, Shift (For Floor Shift)
[12.2005 - 04.2006] TGN16,36..RHD..5F |
33530-0K122 |
— | ||
|
33530F
|
33530F
33530-0K122
Lever Assy, Shift (For Floor Shift)
[05.2006 - 07.2008] TGN16..ARL |
33530-0K122 |
— | ||
|
33530F
|
33530F
33530-0K431
Lever Assy, Shift (For Floor Shift)
[08.2008 - 08.2011] TGN16,36..RHD..5F |
33530-0K431 |
— | ||
|
33548F
|
33548F
33548-04010 Bush, No.1, Shift Lever (For Floor Shift)[08.2004 - 02.2012] TGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB ,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR )..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR).. |
33548-04010 |
US $3.63 |
||
| replacement | |||||
|
33548F
|
33548F
33548-31010 Bush, Shift Lever[08.2004 - 02.2012] TGN36..SCB;KUN25..SCB..MA;KUN16,36..XTR..TH;TGN26,36..DCB..5F..DLX..LA;KUN15..(DCB ,SCB)..(PHL,SA)..CBU;KUN26..DCB..5F..(ARL,LA,PHL,SA,TH);KUN25,TGN36..RHD..(DCB,XTR )..5F..SR;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN15..(DCB,SCB,XTR).. |
33548-31010 |
from US $3.49 |
||
|
33584F
|
33584F
33182-35020
Gasket, Extension Housing Cover(Mtm)
[08.2004 - 05.2005] GGN15..5F TYPE C:REFER 33-01; KUN16..XTR;KUN16,TGN16..ARL,GEN TYPE A:REFER 33-01 |
33182-35020 |
— | ||
| replacement | |||||
|
33584F
|
33584F
33584-71010 Gasket, Extension Housing Cover(Mtm)[08.2004 - 05.2005] GGN15..5F TYPE C:REFER 33-01; KUN16..XTR;KUN16,TGN16..ARL,GEN TYPE A:REFER 33-01 |
33584-71010 |
from US $7.16 |
||
|
91611B0825
|
91611B0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
