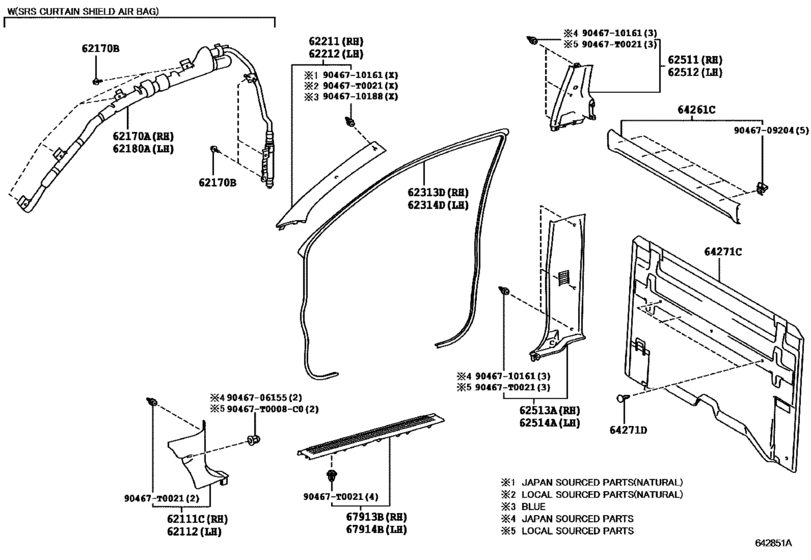

Inside Trim Board ([07.2011 - ] (1107- )SCB,THSCB) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- TGN16
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- ARL
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 07.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62111C
|
62111C
62111-0K010-B1
Board, Cowl Side Trim, Rh
[07.2011 -] KUN26..4FC..TH;KUN35..SR..GEN;KUN15..(DLX,STD)..PHL;TGN16..DLX..HTWC..(ARL,GEN,TH) ;KUN15,16..(4FC,5F)..DCR..(GEN,PKN,TH);KUN26..(DCB,THDCB)..(4FC,5F)..(GEN,MA,PHL); KUN15,35..LHD..(DCB,THDCB,XTR)..DLX..HDCR..(GEN,PHL);GGN15,25,KUN10,25,36,TGN |
62111-0K010-B1 |
— | ||
|
62112
|
62112
62112-0K010-B1
Board, Cowl Side Trim, Lh
[07.2011 -] KUN26..4FC..TH;KUN35..SR..GEN;KUN15..(DLX,STD)..PHL;TGN16..DLX..HTWC..(ARL,GEN,TH) ;KUN15,16..(4FC,5F)..DCR..(GEN,PKN,TH);KUN26..(DCB,THDCB)..(4FC,5F)..(GEN,MA,PHL); KUN15,35..LHD..(DCB,THDCB,XTR)..DLX..HDCR..(GEN,PHL);GGN15,25,KUN10,25,36,TGN |
62112-0K010-B1 |
— | ||
|
62211
|
62211
62211-0K010-B0
Garnish, Front Pillar, Rh
[07.2011 -] KUN16..4FC..TH;GGN15,KUN10,16,TGN10..RHD..(SCB,SMT);KUN15,TGN16..(SCB,XTR)..(ARL,P HL,PKN,TH);GGN15,KUN15..(DCB,SMT)..5F..(DCR,HTWC)..(ARL,TH) LT.GRAY,TRIM1# |
62211-0K010-B0 |
— | ||
|
62212
|
62212
62212-0K010-B0
Garnish, Front Pillar, Lh
[07.2011 -] KUN16..4FC..TH;GGN15,KUN10,16,TGN10..RHD..(SCB,SMT);KUN15,TGN16..(SCB,XTR)..(ARL,P HL,PKN,TH);GGN15,KUN15..(DCB,SMT)..5F..(DCR,HTWC)..(ARL,TH) LT.GRAY,TRIM1# |
62212-0K010-B0 |
— | ||
|
62313D
|
62313D
62313-0K010
Trim, Front Door Opening, Rh
[07.2011 -] GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,THSCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,S A,TH) |
62313-0K010 |
— | ||
|
62314D
|
62314D
62314-0K010
Trim, Front Door Opening, Lh
[07.2011 -] GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,THSCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,S A,TH) |
62314-0K010 |
— | ||
|
62511
|
62511
62511-0K260-B0
Board, Quarter Inside Trim, Rh
[07.2011 - 04.2015] KUN10,15,TGN1#,26..SCB..GCC LT.GRAY,TRIM1#,3#; KUN15,25,TGN16,26..(SCB,THSCB)..GEN LT.GRAY,TRIM1#,2#; GGN15,KUN1#,2#,TGN10,16..SCB..(ARL,IDN,MA,PHL,TH) LT.GRAY,TRIM1# |
62511-0K260-B0 |
— | ||
|
62512
|
62512
62512-0K260-B0
Board, Quarter Inside Trim, Lh
[07.2011 - 04.2015] KUN10,15,TGN1#,26..SCB..GCC LT.GRAY,TRIM1#,3#; KUN15,25,TGN16,26..(SCB,THSCB)..GEN LT.GRAY,TRIM1#,2#; GGN15,KUN1#,2#,TGN10,16..SCB..(ARL,IDN,MA,PHL,TH) LT.GRAY,TRIM1# |
62512-0K260-B0 |
— | ||
|
62513A
|
62513A
62513-0K040-B1
Panel, Quarter Trim, Lower Rh
[07.2011 -] GGN15,KUN1#,2#,TGN10,16,26,36..(SCB,THSCB)..(ANCOM,ARL,GEN,IDN,PHL,PKN,TH) MD.GRAY,TRIM1# |
62513-0K040-B1 |
— | ||
|
62514A
|
62514A
62514-0K040-B1
Panel, Quarter Trim, Lower Lh
[07.2011 -] GGN15,KUN1#,2#,TGN10,16,26,36..(SCB,THSCB)..(ANCOM,ARL,GEN,IDN,PHL,PKN,TH) MD.GRAY,TRIM1# |
62514-0K040-B1 |
— | ||
|
64261C
|
64261C
64261-0K010-B1
Garnish, Back Panel, Upper
[07.2011 -] GGN25..5FC..DLX;TGN10..IDN..CBU;KUN16,36..4FC..TH;KUN26..4FC..ARL..CBU;GGN25,KUN25 ..(4FC,5F)..(ARL,PKN);GGN15,KUN15..DCB..5F..(DCR,HTWC)..(ARL,TH);GGN15,KUN15,16,26 ,TGN16..SCB..(ARL,PHL,PKN,TH) LT.GRAY,TRIM1# |
64261-0K010-B1 |
— | ||
|
67913B
|
67913B
67913-0K040-B1
Plate, Front Door Scuff, Rh
[07.2011 -] GGN15,KUN1#,2#,35,TGN10,16,26,36..(SCB,THSCB,XTR)..(ANCOM,ARL,GEN,IDN,LA,MA,PHL,PK N,TH) MD.GRAY,TRIM1# |
67913-0K040-B1 |
— | ||
|
67914B
|
67914B
67914-0K040-B1
Plate, Front Door Scuff, Lh
[07.2011 -] GGN15,KUN1#,2#,35,TGN10,16,26,36..(SCB,THSCB,XTR)..(ANCOM,ARL,GEN,IDN,LA,MA,PHL,PK N,TH) MD.GRAY,TRIM1# |
67914-0K040-B1 |
— | ||
|
90467T0008C0
|
90467T0008C0
90467-T0008-C0
CLIP
|
90467-T0008-C0 |
— | ||
|
90467T0021
|
90467T0021
90467-T0021 Clip(For Cowl Side Trim) |
90467-T0021 |
US $1.01 |
||
|
9046706155
|
9046706155
90467-06155 Clip |
90467-06155 |
from US $0.74 |
||
|
9046709204
|
9046709204
90467-09204 Clip(For Front Body Pillar Garnish) |
90467-09204 |
from US $0.88 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.90 |
||
|
9046710188
|
9046710188
90467-10188 Clip(For Deck Boad) |
90467-10188 |
from US $0.90 |
