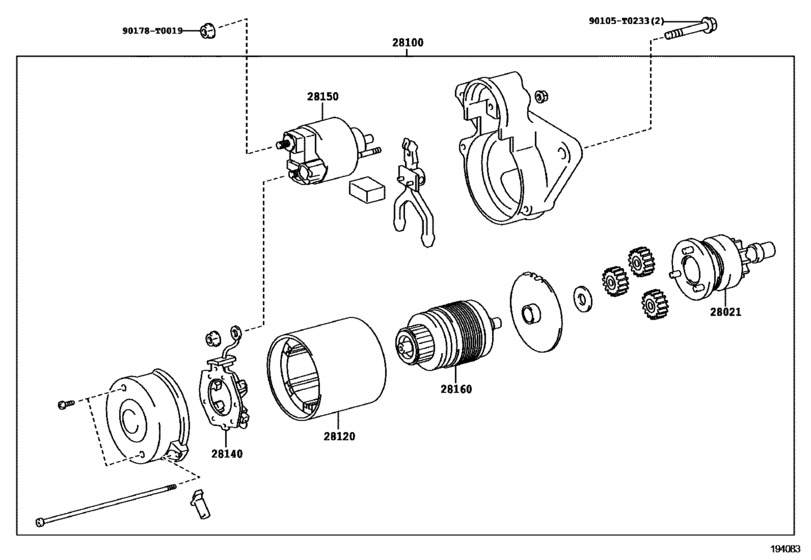

Starter ([12.2012 - ] 12V 1.6KW (1212- )2TRFE..TGN16,26,36..ARL,GEN,TH) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2011 - 2015
- Sales region
- General
- Frame
- TGN16
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- ARL
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 07.2011
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28021
|
28021
28021-73020 Clutch Sub-Assy, Starter Center Bearing[07.2011 - 12.2012] 2TRFE..TGN16,26,36..ARL,GEN,TH |
28021-73020 |
from US $64.02 |
||
|
28021
|
28021
28021-75210 Clutch Sub-Assy, Starter Center BearingSTARTER CENTER BEARING [12.2012 - 04.2015] 2TRFE..TGN16,26,36..ARL,GEN,TH |
28021-75210 |
from US $62.13 |
||
|
28100
|
28100
28100-75191 Starter Assy[07.2011 - 11.2012] 2TRFE..TGN16,26,36..ARL,GEN,TH 12V 1.6KW |
28100-75191 |
from US $592.94 |
||
|
28100
|
28100
28100-75210 Starter Assy[12.2012 - 04.2015] 2TRFE..TGN16,26,36..ARL,GEN,TH 12V 1.6KW |
28100-75210 |
from US $530.77 |
||
|
28120
|
28120
28120-28060
Yoke Assy, Starter
[07.2011 - 12.2012] 2TRFE..TGN16,26,36..ARL,GEN,TH |
28120-28060 |
— | ||
|
28120
|
28120
28120-75210
Yoke Assy, Starter
[12.2012 - 04.2015] 2TRFE..TGN16,26,36..ARL,GEN,TH |
28120-75210 |
— | ||
|
28140
|
28140
28140-37050 Holder Assy, Starter BrushSTARTER BRUSH [12.2012 - 04.2015] 2TRFE..TGN16,26,36..ARL,GEN,TH |
28140-37050 |
US $27.50 |
||
|
28150
|
28150
28150-40130 Switch Assy, Magnet StarterMAGNET STARTER [12.2012 - 04.2015] 2TRFE..TGN16,26,36..ARL,GEN,TH |
28150-40130 |
from US $106 |
||
|
28160
|
28160
28160-21060 Armature Assy, Starter[07.2011 - 12.2012] 2TRFE..TGN16,26,36..ARL,GEN,TH |
28160-21060 |
from US $97.60 |
||
|
28160
|
28160
28160-37050 Armature Assy, Starter[12.2012 - 04.2015] 2TRFE..TGN16,26,36..ARL,GEN,TH |
28160-37050 |
US $176.18 |
||
|
90105T0233
|
90105T0233
90105-T0233 BOLT FLANGE |
90105-T0233 |
US $1.35 |
||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.92 |
