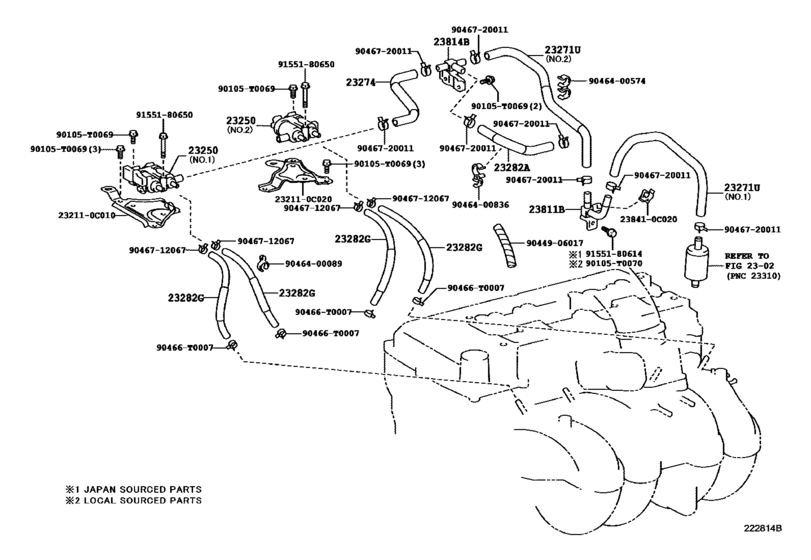

Fuel Injection System ([05.2012 - ] (1205- )2TRFE..TGN16..CNG) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2012 - 2015
- Sales region
- General
- Frame
- TGN16
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- TH
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 05.2012
- To
- 04.2015
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CNG
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23250
|
23250
23070-0C010
Injector Assy, Fuel
[05.2012 - 04.2015] 2TRFE..TGN16..CNG NO.2 |
23070-0C010 |
— | ||
|
23250
|
23250
23209-09045 Injector Assy, Fuel[07.2011 -] 2TRFE..TGN16..SCB..GEN;2TRFE..TGN36..ANCOM,GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN 16,26..ANCOM,ARL,TH |
23209-09045 |
US $235.74 |
||
| replacement | |||||
|
23250
|
23250
23209-79155
Injector Assy, Fuel
[07.2011 -] 2TRFE..TGN16..SCB..GEN;2TRFE..TGN36..ANCOM,GEN;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN 16,26..ANCOM,ARL,TH |
23209-79155 |
— | ||
|
23250
|
23250
23250-0C060
Injector Assy, Fuel
[05.2012 - 04.2015] 2TRFE..TGN16..CNG NO.1 |
23250-0C060 |
— | ||
|
23271U
|
23271U
23273-75390
Hose, Fuel, No.1
[05.2012 - 04.2015] 2TRFE..TGN16..CNG NO.1 |
23273-75390 |
— | ||
|
23271U
|
23271U
23286-75010
Hose, Fuel, No.1
[05.2012 - 04.2015] 2TRFE..TGN16..CNG NO.2 |
23286-75010 |
— | ||
|
23274
|
23274
23274-75020
Hose, Fuel, No.3
[05.2012 - 04.2015] 2TRFE..TGN16..CNG |
23274-75020 |
— | ||
|
23282A
|
23282A
23282-75030
Hose, Fuel, No.4
[05.2012 - 04.2015] 2TRFE..TGN16..CNG |
23282-75030 |
— | ||
|
23282G
|
23282G
23284-0C020
Hose, Fuel, No.5
[05.2012 - 04.2015] 2TRFE..TGN16..CNG |
23284-0C020 |
— | ||
|
23811B
|
23811B
23811-75020
Pipe, Fuel, No.1
[05.2012 - 04.2015] 2TRFE..TGN16..CNG |
23811-75020 |
— | ||
|
23814B
|
23814B
23814-75080
Pipe, Fuel Delivery
[05.2012 - 04.2015] 2TRFE..TGN16..CNG |
23814-75080 |
— | ||
|
90105T0069
|
90105T0069
90105-T0069
New Genuine Part
|
90105-T0069 |
— | ||
|
90105T0070
|
90105T0070
90105-T0070
New Genuine Part
|
90105-T0070 |
— | ||
|
90466T0007
|
90466T0007
90466-T0007
New Genuine Part
|
90466-T0007 |
— | ||
|
232110C010
|
232110C010
23211-0C010
Bracket, Wire
|
23211-0C010 |
— | ||
|
232110C020
|
232110C020
23211-0C020
Bracket, Wire
|
23211-0C020 |
— | ||
|
238410C020
|
238410C020
23841-0C020
Clamp, Fuel Pipe(hose), No.1
|
23841-0C020 |
— | ||
|
9044906017
|
9044906017
90449-06017 New Genuine Part |
90449-06017 |
US $2.48 |
||
|
9046400089
|
9046400089
90464-00089 New Genuine Part |
90464-00089 |
US $2.48 |
||
|
9046400574
|
9046400574
90464-00574 Clamp Or Clip(For Water By-Pass Hose) |
90464-00574 |
US $3.05 |
||
|
9046400836
|
9046400836
90464-00836 Clamp, Fuel Hose, No.1 |
90464-00836 |
US $5.02 |
||
|
9046712067
|
9046712067
90467-12067 Clip(For Fuel Pump Hose) |
90467-12067 |
from US $1.27 |
||
|
9046720011
|
9046720011
90467-20011 Clamp Or Clip(For Water By-Pass Hose No.2) |
90467-20011 |
from US $2.36 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.66 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
from US $0.80 |
||
