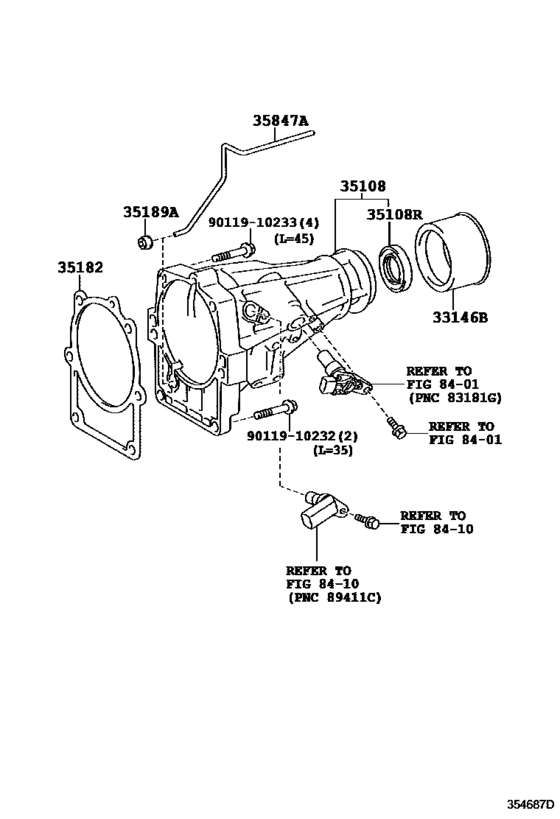

Extension Housing (Atm) ([01.2005 - ] A340E,A343E (0408- )KUN16,36..4FC ; (0501- )TGN16,36.. 4FC) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2008 - 2011
- Sales region
- U.S.A.
- Frame
- TGN16
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- ARL
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2008
- To
- 07.2011
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33146B
|
33146B
33146-30020 Deflector, Extension Housing Dust(Mtm)[08.2008 -] GGN15,35,KUN16,36,TGN16,36..4FC,5FC |
33146-30020 |
from US $17.74 |
||
|
35108
|
35108
35108-35060 Housing Sub-Assy, Extension (Atm)[08.2008 -] KUN16,36,TGN16,36..4FC |
35108-35060 |
US $235.87 |
||
|
35108R
|
35108R
90311-40001 Seal, Oil(For Extension Housing)[08.2008 - 09.2009] KUN16,36,TGN16,36..4FC |
90311-40001 |
from US $7.17 |
||
|
35108R
|
35108R
90311-40034
Seal, Oil (For Automatic Transmission Extension Housing)
[09.2009 -] TGN36..4FC..SR;KUN16,36,TGN16,36..4FC..(ANCOM,ARL,GCC,SA,TH) |
90311-40034 |
— | ||
| replacement | |||||
|
35108R
|
35108R
90311-40045 Seal, Oil (For Automatic Transmission Extension Housing)[09.2009 -] TGN36..4FC..SR;KUN16,36,TGN16,36..4FC..(ANCOM,ARL,GCC,SA,TH) |
90311-40045 |
from US $7.17 |
||
|
35182
|
35182
35182-28010 Gasket, Extension Housing (Atm)[08.2008 -] KUN16,36,TGN16,36..4FC |
35182-28010 |
from US $7.14 |
||
|
35189A
|
35189A
35189-30010 Gasket, Extension Housing Bush Apply Tube[08.2008 -] KUN16,36,TGN16,36..4FC |
35189-30010 |
US $5.77 |
||
|
35847A
|
35847A
35847-30020 Tube, Extension Housing Bush Apply[08.2008 -] KUN16,36,TGN16,36..4FC |
35847-30020 |
US $5.42 |
||
|
9011910232
|
9011910232
90119-10232 Bolt (For Transmission Housing & Case Setting) |
90119-10232 |
US $1.97 |
||
|
9011910233
|
9011910233
90119-10233 New Genuine Part |
90119-10233 |
US $1.05 |
||
