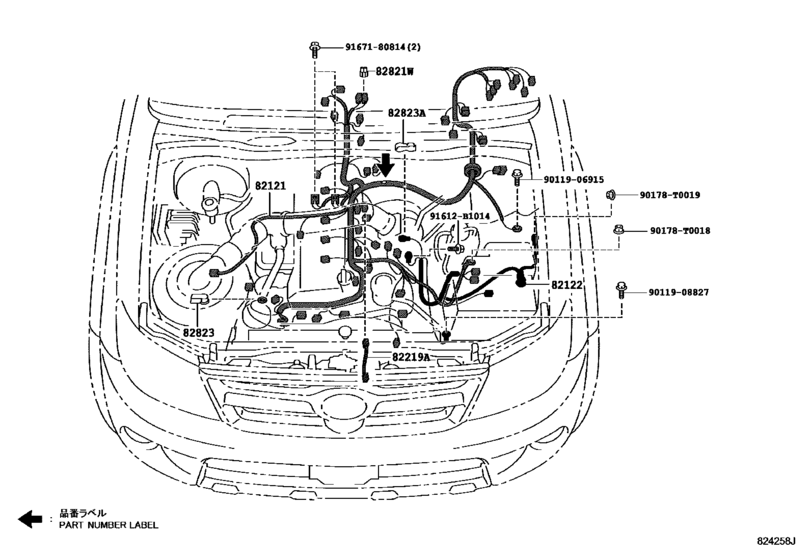

Wiring & Clamp ([01.2005 - ] ENGINE (0501- )TGN1#,26,36) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2008 - 2011
- Sales region
- U.S.A.
- Frame
- TGN16
- grade
- DLX
- ENGINE
- 2TRFE
- DESTINATION
- ARL
- DECK
- SD
- CAB
- SCB
- Model
- HILUX
- From
- 08.2008
- To
- 07.2011
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-0KD60
Wire, Engine
[08.2008 - 08.2009] TGN16..RHD..4FC |
82121-0KD60 |
— | ||
|
82121
|
82121
82121-0KP80
Wire, Engine
[08.2009 - 02.2011] TGN16..RHD..4FC |
82121-0KP80 |
— | ||
|
82121
|
82121
82121-0KP81
Wire, Engine
[02.2011 - 07.2011] TGN16..4FC..ARL |
82121-0KP81 |
— | ||
|
82122
|
82122
82122-0K020
Wire, Engine, No.2
[08.2008 -] TGN16..RHD;TGN16..XTR;TGN26..GEN,LA;TGN36..LHD..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM ..IV3 |
82122-0K020 |
— | ||
|
82219A
|
82219A
82219-0K010
Wire, Sensor
[08.2008 - 04.2012] TGN36..CBU;TGN1#..DLX,SR;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN, LA,SA) (L) |
82219-0K010 |
— | ||
|
82219A
|
82219A
82219-71010
Wire, Sensor
[08.2008 - 06.2011] TGN36..CBU;TGN1#..DLX,SR;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN, LA,SA) (J) |
82219-71010 |
— | ||
| replacement | |||||
|
82219A
|
82219A
82219-0K010
Wire, Sensor
[08.2008 - 06.2011] TGN36..CBU;TGN1#..DLX,SR;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN, LA,SA) (J) |
82219-0K010 |
— | ||
|
82823
|
82823
82823-22050 Cap, Terminal, No.1[08.2008 -] GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;KUN15..LHD..SCB ..SA;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;KUN15..LHD..(GCC,GEN,PHL);GGN25..D CB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR |
82823-22050 |
US $6.99 |
||
|
82823A
|
82823A
82823-0K010
Cap, Terminal, No.2
[08.2008 -] TGN16..XTR;TGN15,36..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN, LA,SA);TGN10,11,16..ARL,GCC,IDN,SA,TH (L) |
82823-0K010 |
— | ||
|
82823A
|
82823A
82823-35040 Cap, Terminal, No.1[08.2008 -] TGN16..XTR;TGN15,36..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN, LA,SA);TGN10,11,16..ARL,GCC,IDN,SA,TH (J) |
82823-35040 |
US $6.26 |
||
|
90178T0018
|
90178T0018
90178-T0018 NUT FLANGE |
90178-T0018 |
US $0.76 |
||
|
90178T0019
|
90178T0019
90178-T0019 Nut (For Connecting Rod Swivel) |
90178-T0019 |
US $0.92 |
||
|
91612B1014
|
91612B1014
91612-B1014 BOLT WWASHER |
91612-B1014 |
US $1.16 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.55 |
||
|
9011908827
|
9011908827
90119-08827 New Genuine Part |
90119-08827 |
US $1.61 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.43 |
||
