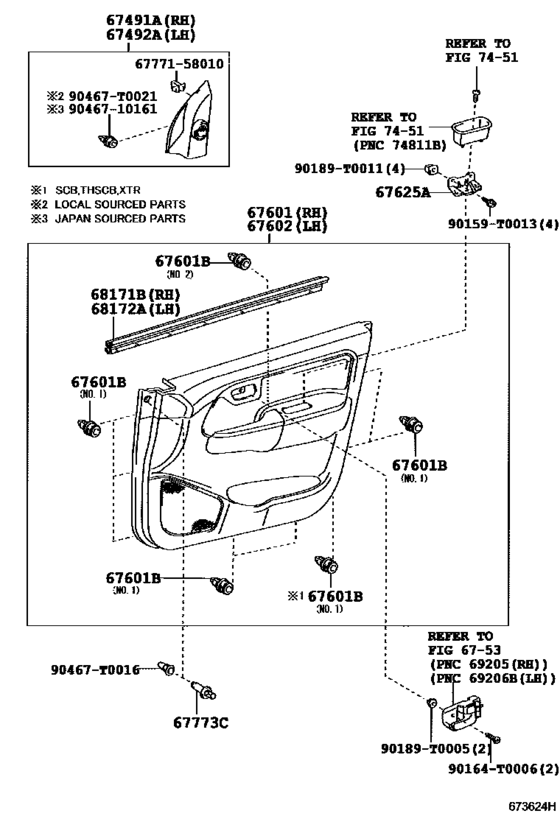

Front Door Panel & Glass ([08.2004 - ] DOOR TRIM (0408- )) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- TGN36
- grade
- SR
- ENGINE
- 2TRFE
- DESTINATION
- SA
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 04.2005
- To
- 08.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67491A
|
67491A
67491-0K030-C0
Garnish, Front Door Lower Frame Bracket, Rh
[04.2005 - 10.2008] GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA BLACK,TRIM1# |
67491-0K030-C0 |
— | ||
|
67492A
|
67492A
67492-0K030-C0
Garnish, Front Door Lower Frame Bracket, Lh
[04.2005 - 10.2008] GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA BLACK,TRIM1# |
67492-0K030-C0 |
— | ||
|
67601
|
67601
67610-0K230-A0
Board Sub-Assy, Front Door Trim, Rh
[08.2005 - 10.2008] GGN25,KUN26,36,TGN36..DCB..SA IVORY,TRIM0# |
67610-0K230-A0 |
— | ||
|
67601
|
67601
67610-0K230-B0
Board Sub-Assy, Front Door Trim, Rh
[08.2005 - 10.2008] GGN25,KUN26,36,TGN36..DCB..SA GRAY,TRIM1# |
67610-0K230-B0 |
— | ||
|
67601
|
67601
67610-0K230-B1
Board Sub-Assy, Front Door Trim, Rh
[04.2005 - 08.2005] GGN25,KUN26,36,TGN36..DCB..SA GRAY,TRIM1# |
67610-0K230-B1 |
— | ||
| replacement | |||||
|
67601
|
67601
67610-0K230-B0
Board Sub-Assy, Front Door Trim, Rh
[04.2005 - 08.2005] GGN25,KUN26,36,TGN36..DCB..SA GRAY,TRIM1# |
67610-0K230-B0 |
— | ||
|
67601
|
67601
67610-0K290-B1
Board Sub-Assy, Front Door Trim, Rh
[10.2008 - 10.2009] GGN25,35,KUN26,3#,TGN36..DCB..SR..SA SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
67610-0K290-B1 |
— | ||
|
67601
|
67601
67610-0K290-B2
Board Sub-Assy, Front Door Trim, Rh
[10.2009 - 08.2011] GGN25,35,KUN26,3#,TGN36..DCB..SR..SA SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
67610-0K290-B2 |
— | ||
|
67601
|
67601
67610-0K600-B0
Board Sub-Assy, Front Door Trim, Rh
[10.2009 - 08.2011] GGN25,35,KUN26,3#,TGN36..DCB..SR..SA GRAY,TRIM1# |
67610-0K600-B0 |
— | ||
|
67601B
|
67601B
90467-09203 Clip(For Rear Floor Mat Plate)[08.2004 - 01.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
90467-09203 |
from US $0.84 |
||
|
67601B
|
67601B
90467-T0019 Clip(For Door Trim)[08.2004 - 12.2008] KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26.. (DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC, GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(A |
90467-T0019 |
US $0.90 |
||
|
67602
|
67602
67620-0K230-A0
Board Sub-Assy, Front Door Trim, Lh
[08.2005 - 10.2008] GGN25,KUN26,36,TGN36..DCB..SA IVORY,TRIM0# |
67620-0K230-A0 |
— | ||
|
67602
|
67602
67620-0K230-B0
Board Sub-Assy, Front Door Trim, Lh
[08.2005 - 10.2008] GGN25,KUN26,36,TGN36..DCB..SA GRAY,TRIM1# |
67620-0K230-B0 |
— | ||
|
67602
|
67602
67620-0K230-B1
Board Sub-Assy, Front Door Trim, Lh
[04.2005 - 08.2005] GGN25,KUN26,36,TGN36..DCB..SA GRAY,TRIM1# |
67620-0K230-B1 |
— | ||
| replacement | |||||
|
67602
|
67602
67620-0K230-B0
Board Sub-Assy, Front Door Trim, Lh
[04.2005 - 08.2005] GGN25,KUN26,36,TGN36..DCB..SA GRAY,TRIM1# |
67620-0K230-B0 |
— | ||
|
67602
|
67602
67620-0K290-B1
Board Sub-Assy, Front Door Trim, Lh
[10.2008 - 10.2009] GGN25,35,KUN26,3#,TGN36..DCB..SR..SA SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
67620-0K290-B1 |
— | ||
|
67602
|
67602
67620-0K290-B2
Board Sub-Assy, Front Door Trim, Lh
[10.2009 - 08.2011] GGN25,35,KUN26,3#,TGN36..DCB..SR..SA SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
67620-0K290-B2 |
— | ||
|
67602
|
67602
67620-0K600-B0
Board Sub-Assy, Front Door Trim, Lh
[10.2009 - 08.2011] GGN25,35,KUN26,3#,TGN36..DCB..SR..SA GRAY,TRIM1# |
67620-0K600-B0 |
— | ||
|
67625A
|
67625A
67625-0K020
Bracket, Front Door Trim, No.1
[04.2005 - 10.2008] GGN25,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA |
67625-0K020 |
— | ||
|
67773C
|
67773C
90467-T0027-A0
Clip, Rear Door Trim Upper Retainer, No.1
[08.2004 - 10.2008] GGN15,25,KUN15,16,2#,36,TGN16,26,36..(DCB,XTR)..SR..(ARL,GCC,MA,PHL,SA,TH) IVORY,TRIM0# |
90467-T0027-A0 |
— | ||
|
67773C
|
67773C
90467-T0027-B0 Clip, Rear Door Trim Upper Retainer, No.1REAR DOOR TRIM UPPER RETAINER, NO.1 [08.2004 - 01.2012] TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN16,TGN 16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GEN,SA,TH;TGN26,36..DCB..5F..DLX..LA ;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GEN,LA,SA);KUN26..( |
90467-T0027-B0 |
US $1.01 |
||
|
68171B
|
68171B
68171-0K010 Weatherstrip, Front Door Glass, Inner Rh[08.2004 - 12.2008] KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26.. (DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC, GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(A |
68171-0K010 |
US $20.12 |
||
|
68172A
|
68172A
68172-0K010 Weatherstrip, Front Door Glass, Inner Lh[08.2004 - 12.2008] KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26.. (DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC, GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(A |
68172-0K010 |
US $15.15 |
||
|
90159T0013
|
90159T0013
90159-T0013
New Genuine Part
|
90159-T0013 |
— | ||
|
90164T0006
|
90164T0006
90164-T0006
SCREW BINDING
|
90164-T0006 |
— | ||
|
90189T0005
|
90189T0005
90189-T0005
GROMMET SCREW
|
90189-T0005 |
— | ||
|
90189T0011
|
90189T0011
90189-T0011
New Genuine Part
|
90189-T0011 |
— | ||
|
90467T0016
|
90467T0016
90467-T0016
CLIP
|
90467-T0016 |
— | ||
|
90467T0021
|
90467T0021
90467-T0021 Clip(For Cowl Side Trim) |
90467-T0021 |
US $1.01 |
||
|
6777158010
|
6777158010
67771-58010 Clip, Front Pillar Garnish |
67771-58010 |
from US $1.79 |
||
|
9046710161
|
9046710161
90467-10161 Clip |
90467-10161 |
from US $0.90 |
||
