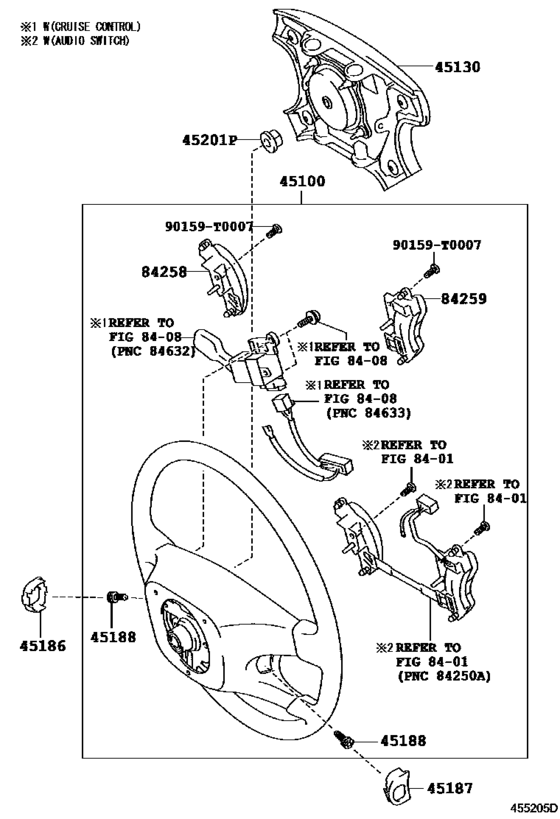

Steering Wheel ([10.2008 - ] 4-SPOKE (0810- )DCB..SR..LA,SA) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Frame
- TGN36
- grade
- SR
- ENGINE
- 2TRFE
- DESTINATION
- SA
- DECK
- SD
- CAB
- DCB
- Model
- HILUX
- From
- 04.2005
- To
- 08.2011
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-0K161-B0
Wheel Assy, Steering
[10.2008 - 08.2011] KUN35,TGN36..DCB..SR..SA 4-SPOKE,LEATHER,DK.GRAY,TRIM1# |
45100-0K161-B0 |
— | ||
|
45100
|
45100
45100-0K191-B0
Wheel Assy, Steering
[04.2005 - 10.2008] GGN25,KUN26,36,TGN36..5F..SA 4-SPOKE,URETHANE,DK.GRAY,TRIM1# |
45100-0K191-B0 |
— | ||
|
45130
|
45130
45130-0K060-B0
Button Assy, Horn
[08.2008 - 10.2011] KUN26..THDCB..SR;GGN25,35..5FC..(LA,SA);KUN26,3#,TGN26,36..DCB..SR..(LA,SA) DK.GRAY,TRIM1# |
45130-0K060-B0 |
— | ||
|
45130
|
45130
45130-0K070-B0
Button Assy, Horn
[04.2005 - 10.2008] GGN25,KUN26,36,TGN36..SA DK.GRAY,TRIM1# |
45130-0K070-B0 |
— | ||
| replacement | |||||
|
45130
|
45130
45130-0K310-B0
Button Assy, Horn
[04.2005 - 10.2008] GGN25,KUN26,36,TGN36..SA DK.GRAY,TRIM1# |
45130-0K310-B0 |
— | ||
|
45186
|
45186
45186-06090-B0
Cover, Steering Wheel, Lower No.2
[08.2008 - 10.2011] KUN16..SMT;KUN35..SR..SA;KUN25..DCB..DLX..MA;KUN26,36..LHD..5F..SR..(GEN,LA);KUN15 ,TGN26,36..(DCB,SMT)..SR..(LA,SA,TH) DK.GRAY,TRIM1# |
45186-06090-B0 |
— | ||
|
45187
|
45187
45187-06050-B0
Cover, Steering Wheel, Lower No.3
[08.2008 - 10.2011] KUN16..SMT;KUN26..THDCB..SR;KUN25..DCB..DLX..MA;GGN25..5FC..(LA,SA);KUN26,3#..DCB. .SR..(LA,SA);GGN35,KUN15,TGN26,36..(DCB,SMT)..SR..(LA,SA,TH) DK.GRAY,TRIM1# |
45187-06050-B0 |
— | ||
|
45188
|
45188
45188-0K010
Screw, Steering Wheel Pad Attaching
[01.2005 - 12.2008] KUN26..4FC..LA;TGN36..4FC..ANCOM;KUN36..5F..SR..(LA,SA);TGN26,36..SR..(ANCOM,SA);G GN25,KUN26..DCB..(5F,5FC)..SR..(ANCOM,LA,SA) L=18 |
45188-0K010 |
— | ||
|
45188
|
45188
45188-60010 Screw, Steering Wheel Pad Attaching[08.2008 - 10.2011] GGN25..ARL,LA;KUN25..DCB..MA;KUN26..SCB..IV3;KUN35..DLX..PHL;KUN26..THDCB..4FC;KUN 26..4FC..(LA,TH);KUN26..LHD..5F..SR..(GEN,LA);GGN25,TGN16..(4FC,5FC)..(SA,TH);KUN3 #..(DCB,XTR)..SR..(LA,PHL,SA);KUN26..(DCB,XTR)..(ARL,GEN,PHL,SA);GGN1 |
45188-60010 |
US $2.87 |
||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[08.2004 - 02.2012] TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN 25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM, GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA).. |
90179-12071 |
from US $1.52 |
||
|
90159T0007
|
90159T0007
90159-T0007
New Genuine Part
|
90159-T0007 |
— | ||
