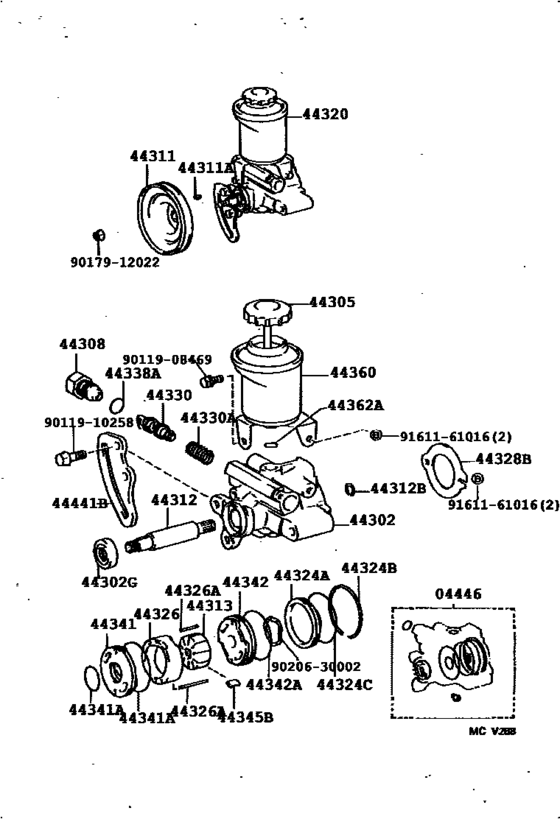

Vane Pump & Reservoir (Power Steering) ([08.1988 - ] (8808- )VZN100,110) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1993 - 1995
- Sales region
- U.S.A.
- Frame
- VZN110
- grade
- DLX
- ENGINE
- 3VZE
- TRANSMISSION
- MTM
- PRODUCT
- NAP
- DESTINATION
- USA
- DECK
- T1
- CAB
- XTR
- Model
- 4RUNNER TRUCK
- From
- 03.1993
- To
- 01.1995
- Gear Shift Type
- 5F
- Vehicle Model
- 4RUNNER
- Fuel Induction
- EFI
- Building Condition
- CBU
- Transmission Model
- R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44302
|
44302
44302-35010
Housing Sub-Assy, Vane Pump, Front
[02.1992 - 01.1995] VZN100,110 |
44302-35010 |
— | ||
|
44302G
|
44302G
90311-18007 Seal, Oil, No.2(For Vane Pump Housing)[02.1992 - 01.1995] VZN100,110 |
90311-18007 |
from US $4.30 |
||
|
44305
|
44305
44305-22040
Cap Sub-Assy, Vane Pump Oil Reservoir
[02.1992 - 01.1995] VZN100,110 |
44305-22040 |
— | ||
| replacement | |||||
|
44305
|
44305
44305-22061 Cap Sub-Assy, Vane Pump Oil Reservoir[02.1992 - 01.1995] VZN100,110 |
44305-22061 |
from US $15.88 |
||
|
44308
|
44308
44308-35040 Union Sub-Assy, Pressure Port[02.1992 - 01.1995] VZN100,110 |
44308-35040 |
US $26.50 |
||
|
44311
|
44311
44311-35020
Pulley, Vane Pump
[02.1992 - 01.1995] VZN100,110 |
44311-35020 |
— | ||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[02.1992 - 01.1995] RN101,110,VZN100,110 |
90280-05008 |
US $3.94 |
||
|
44312
|
44312
44312-12030 Shaft, Vane Pump[02.1992 - 01.1995] VZN100,110 |
44312-12030 |
from US $16.11 |
||
|
44312B
|
44312B
90520-10003 Ring, Snap, No.1(For Vane Pump Shaft)[02.1992 - 01.1995] VZN100,110 |
90520-10003 |
US $1.22 |
||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[02.1992 - 01.1995] RN101,110,VZN100,110 NO MARK |
44313-22040 |
US $103.38 |
||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[02.1992 - 01.1995] RN101,110,VZN100,110 MARK 1 |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[02.1992 - 01.1995] RN101,110,VZN100,110 MARK 2 |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[02.1992 - 01.1995] RN101,110,VZN100,110 MARK 3 |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[02.1992 - 01.1995] RN101,110,VZN100,110 MARK 4 |
44313-22080 |
US $103.38 |
||
|
44320
|
44320
44320-35430 Pump Assy, VaneVANE [02.1992 - 01.1995] VZN100,110 |
44320-35430 |
US $1,256.53 |
||
|
44324A
|
44324A
44324-12031 Housing Sub-Assy, Vane Pump, Rear[02.1992 - 01.1995] VZN100,110 |
44324-12031 |
US $81.54 |
||
|
44324B
|
44324B
90521-62002 Ring, Snap, No.1(For Vane Pump Housing)[02.1992 - 01.1995] VZN100,110 |
90521-62002 |
US $3.14 |
||
|
44324C
|
44324C
90301-53004 Ring, O(For Pump Housing Rear)[02.1992 - 01.1995] VZN100,110 |
90301-53004 |
from US $2.44 |
||
|
44326
|
44326
44325-35010 Ring, Cam(For Vane Pump)[02.1992 - 01.1995] VZN100,110 NO MARK |
44325-35010 |
US $115.02 |
||
| replacement | |||||
|
44326
|
44326
44325-50010 Ring, Cam(For Vane Pump)[02.1992 - 01.1995] VZN100,110 NO MARK |
44325-50010 |
US $62.32 |
||
|
44326
|
44326
44325-35020 Ring, Cam(For Vane Pump)[02.1992 - 01.1995] VZN100,110 MARK 1 |
44325-35020 |
US $115.02 |
||
| replacement | |||||
|
44326
|
44326
44325-50020 Ring, Cam(For Vane Pump)[02.1992 - 01.1995] VZN100,110 MARK 1 |
44325-50020 |
US $62.32 |
||
|
44326
|
44326
44325-35030 Ring, Cam(For Vane Pump)[02.1992 - 01.1995] VZN100,110 MARK 2 |
44325-35030 |
US $115.02 |
||
| replacement | |||||
|
44326
|
44326
44325-50030 Ring, Cam(For Vane Pump)[02.1992 - 01.1995] VZN100,110 MARK 2 |
44325-50030 |
US $62.32 |
||
|
44326
|
44326
44325-35040 Ring, Cam(For Vane Pump)[02.1992 - 01.1995] VZN100,110 MARK 3 |
44325-35040 |
US $115.02 |
||
| replacement | |||||
|
44326
|
44326
44325-50040 Ring, Cam(For Vane Pump)[02.1992 - 01.1995] VZN100,110 MARK 3 |
44325-50040 |
US $62.32 |
||
|
44326
|
44326
44325-35050 Ring, Cam(For Vane Pump)[02.1992 - 01.1995] VZN100,110 MARK 4 |
44325-35050 |
US $115.02 |
||
| replacement | |||||
|
44326
|
44326
44325-50050 Ring, Cam(For Vane Pump)[02.1992 - 01.1995] VZN100,110 MARK 4 |
44325-50050 |
US $62.32 |
||
|
44326A
|
44326A
90250-04047 Pin, Straight(For Vane Pump Cam Ring)[02.1992 - 01.1995] VZN100,110 L=28,OD=4.0 |
90250-04047 |
US $1.05 |
||
|
44326A
|
44326A
90250-04049 Pin, Straight(For Vane Pump Cam Ring)[02.1992 - 01.1995] VZN100,110 L=43,OD=4.0 |
90250-04049 |
US $2.62 |
||
|
44328B
|
44328B
44328-35010 End, Vane Pump Housing[02.1992 - 01.1995] VZN100,110 |
44328-35010 |
US $4.37 |
||
|
44330
|
44330
44330-20310 Valve Assy, Flow Control[02.1992 - 01.1995] VZN100,110 MARK A |
44330-20310 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35250 Valve Assy, Flow Control[02.1992 - 01.1995] VZN100,110 MARK A |
44330-35250 |
US $115.02 |
||
|
44330
|
44330
44330-20320 Valve Assy, Flow Control[02.1992 - 01.1995] VZN100,110 MARK B |
44330-20320 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35260 Valve Assy, Flow Control[02.1992 - 01.1995] VZN100,110 MARK B |
44330-35260 |
US $115.02 |
||
|
44330
|
44330
44330-20330 Valve Assy, Flow Control[02.1992 - 01.1995] VZN100,110 MARK C |
44330-20330 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35270 Valve Assy, Flow Control[02.1992 - 01.1995] VZN100,110 MARK C |
44330-35270 |
US $115.02 |
||
|
44330
|
44330
44330-20340 Valve Assy, Flow Control[02.1992 - 01.1995] VZN100,110 MARK D |
44330-20340 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35280 Valve Assy, Flow Control[02.1992 - 01.1995] VZN100,110 MARK D |
44330-35280 |
US $115.02 |
||
|
44330
|
44330
44330-20350
Valve Assy, Flow Control
[02.1992 - 01.1995] VZN100,110 MARK E |
44330-20350 |
— | ||
| replacement | |||||
|
44330
|
44330
44330-35290
Valve Assy, Flow Control
[02.1992 - 01.1995] VZN100,110 MARK E |
44330-35290 |
— | ||
|
44330
|
44330
44330-20360 Valve Assy, Flow Control[02.1992 - 01.1995] VZN100,110 MARK F |
44330-20360 |
US $115.02 |
||
| replacement | |||||
|
44330
|
44330
44330-35300 Valve Assy, Flow Control[02.1992 - 01.1995] VZN100,110 MARK F |
44330-35300 |
US $115.02 |
||
|
44330A
|
44330A
90501-12103 Spring, Compression(For Flow Control Valve)[02.1992 - 01.1995] RN101,110,VZN100,110 |
90501-12103 |
US $2.87 |
||
|
44338A
|
44338A
90301-19003
Ring, O(For Pressure Port Union)
[02.1992 - 01.1995] VZN100,110 ID=19.5,OD=22.5 |
90301-19003 |
— | ||
| replacement | |||||
|
44338A
|
44338A
90301-19018 Ring, O(For Pressure Port Union)[02.1992 - 01.1995] VZN100,110 ID=19.5,OD=22.5 |
90301-19018 |
from US $2.18 |
||
|
44341
|
44341
44341-20010 Plate, Vane Pump Side, Front[02.1992 - 01.1995] VZN100,110 |
44341-20010 |
US $39.17 |
||
|
44341A
|
44341A
90301-25008 Ring, O(For Vane Pump Front Side Plate)[02.1992 - 01.1995] VZN100,110 INNER |
90301-25008 |
US $3.72 |
||
|
44341A
|
44341A
90301-53004 Ring, O(For Pump Housing Rear)[02.1992 - 01.1995] VZN100,110 OUTER |
90301-53004 |
from US $2.44 |
||
|
44342
|
44342
44342-20010 Plate, Vane Pump Side, Rear[02.1992 - 01.1995] VZN100,110 |
44342-20010 |
US $38.73 |
||
|
44342A
|
44342A
90301-53004 Ring, O(For Pump Housing Rear)[02.1992 - 01.1995] VZN100,110 |
90301-53004 |
from US $2.44 |
||
|
44345B
|
44345B
44345-12010 Plate, Vane Pump[02.1992 - 01.1995] RN101,110,VZN100,110 L=14.997 |
44345-12010 |
US $11.83 |
||
|
44345B
|
44345B
44345-12020 Plate, Vane Pump[02.1992 - 01.1995] RN101,110,VZN100,110 L=14.995 |
44345-12020 |
US $6.12 |
||
|
44345B
|
44345B
44345-12030 Plate, Vane Pump[02.1992 - 01.1995] RN101,110,VZN100,110 L=14.993 |
44345-12030 |
US $6.12 |
||
|
44345B
|
44345B
44345-12040 Plate, Vane Pump[02.1992 - 01.1995] RN101,110,VZN100,110 L=14.991 |
44345-12040 |
US $6.12 |
||
|
44345B
|
44345B
44345-12050 Plate, Vane Pump[02.1992 - 01.1995] RN101,110,VZN100,110 L=14.989 |
44345-12050 |
US $6.12 |
||
|
44360
|
44360
44306-35190 Reservoir Assy, Vane Pump OilVANE PUMP OIL [02.1992 - 01.1995] VZN100,110 |
44306-35190 |
US $138.32 |
||
| replacement | |||||
|
44360
|
44360
44306-35150
Reservoir Assy, Vane Pump Oil
[02.1992 - 01.1995] VZN100,110 |
44306-35150 |
— | ||
|
44362A
|
44362A
90301-12003
Ring, O(For Power Steering Suction Port)
[02.1992 - 01.1995] VZN100,110 |
90301-12003 |
— | ||
| replacement | |||||
|
44362A
|
44362A
90301-11016 Ring, O(For Power Steering Suction Port)[02.1992 - 01.1995] VZN100,110 |
90301-11016 |
from US $1.48 |
||
|
44441B
|
44441B
44441-35030
Bracket, Pump, Front
[02.1992 - 01.1995] VZN100,110 |
44441-35030 |
— | ||
|
9011908469
|
9011908469
90119-08469
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
90119-08469 |
— | ||
|
9011910258
|
9011910258
90119-10258 New Genuine Part |
90119-10258 |
US $4.37 |
||
|
9017912022
|
9017912022
90179-12022 Nut(For Vane Pump Pulley) |
90179-12022 |
US $6.63 |
||
|
9020630002
|
9020630002
90206-30002 New Genuine Part |
90206-30002 |
US $4.37 |
||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.51 |
||
