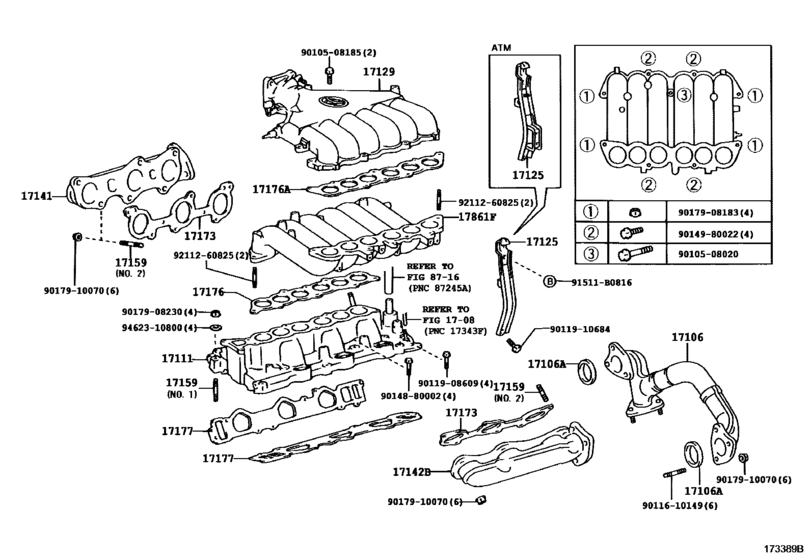

Manifold ([08.2002 - 02.2005] (0208-0502)5VZFE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2005
- Sales region
- General
- Frame
- VZN167
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- CAB
- SCB
- Model
- HILUX
- From
- 08.2002
- To
- 02.2005
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17106
|
17106
17106-62040 Pipe Sub-Assy, Exhaust Crossover[08.2002 - 04.2003] 5VZFE..VZN167,172 |
17106-62040 |
US $334.88 |
||
| replacement | |||||
|
17106
|
17106
17106-62041 Pipe Sub-Assy, Exhaust Crossover[08.2002 - 04.2003] 5VZFE..VZN167,172 |
17106-62041 |
US $334.88 |
||
|
17106
|
17106
17106-62041 Pipe Sub-Assy, Exhaust Crossover[04.2003 - 02.2005] 5VZFE..VZN167,172 |
17106-62041 |
US $334.88 |
||
|
17106A
|
17106A
90917-06083 Gasket, Exhaust Pipe[08.2002 - 02.2005] 5VZFE..VZN167,172 |
90917-06083 |
from US $4.82 |
||
|
17111
|
17111
17101-62020 Manifold, Intake[08.2002 - 02.2005] 5VZFE..VZN167,172 |
17101-62020 |
US $548.91 |
||
|
17125
|
17125
17125-62041 Stay, Surge Tank, No.1[08.2002 - 02.2005] 5VZFE..VZN167,172..MTM |
17125-62041 |
US $36.40 |
||
|
17129
|
17129
17109-62090 Tank, Intake Air Surge[08.2002 - 02.2005] 5VZFE..VZN167,172 |
17109-62090 |
US $1,183.73 |
||
|
17141
|
17141
17141-62110 Manifold, Exhaust[08.2002 - 02.2005] 5VZFE..VZN167,172 |
17141-62110 |
US $365.46 |
||
|
17142B
|
17142B
17142-62110 Manifold, Exhaust, Lh[08.2002 - 02.2005] 5VZFE..VZN167,172 |
17142-62110 |
US $365.46 |
||
|
17159
|
17159
90116-08251 Bolt, Stud(For Manifold To Cylinder Head)[08.2002 - 02.2005] 5VZFE..VZN167,172 NO.1 |
90116-08251 |
US $3.32 |
||
|
17159
|
17159
90116-10150 Bolt, Stud(For Manifold To Cylinder Head)[08.2002 - 02.2005] 5VZFE..VZN167,172 NO.2 |
90116-10150 |
US $4.12 |
||
|
17173
|
17173
17173-62060 Gasket, Exhaust Manifold To Head[08.2002 - 02.2005] 5VZFE..VZN167,172 |
17173-62060 |
from US $26.83 |
||
|
17176
|
17176
17176-62040 Gasket, Air Surge Tank To Intake Manifold[08.2002 - 02.2005] 5VZFE..VZN167,172 |
17176-62040 |
from US $10.12 |
||
|
17176A
|
17176A
17176-62040 Gasket, Air Surge Tank To Intake Manifold[08.2002 - 02.2005] 5VZFE..VZN167,172 |
17176-62040 |
from US $10.12 |
||
|
17177
|
17177
17177-62060 Gasket, Intake Manifold To Head, No.1[08.2002 - 02.2005] 5VZFE..VZN167,172 |
17177-62060 |
from US $46.90 |
||
|
17861F
|
17861F
17861-62012 Connector, Intake Air[08.2002 - 02.2005] 5VZFE..VZN167,172 |
17861-62012 |
US $430.98 |
||
|
91511B0816
|
91511B0816
91511-B0816 BOLT |
91511-B0816 |
US $0.84 |
||
| replacement | |||||
|
91511B0816
|
91511B0816
90080-10159 New Genuine Part |
90080-10159 |
US $3.21 |
||
|
9010508020
|
9010508020
90105-08020 Bolt(For Transaxle Case & Transmission Case Setting) |
90105-08020 |
US $3.32 |
||
|
9010508185
|
9010508185
90105-08185 New Genuine Part |
90105-08185 |
US $1.51 |
||
|
9011610149
|
9011610149
90116-10149 Bolt, Stud(For Manifold To Exhaust Pipe) |
90116-10149 |
from US $1.85 |
||
|
9011908609
|
9011908609
90119-08609 New Genuine Part |
90119-08609 |
US $3.06 |
||
| replacement | |||||
|
9011908609
|
9011908609
90148-80018 New Genuine Part |
90148-80018 |
US $1.49 |
||
|
9011910684
|
9011910684
90119-10684 New Genuine Part |
90119-10684 |
US $2.61 |
||
|
9014880002
|
9014880002
90148-80002 New Genuine Part |
90148-80002 |
US $3.06 |
||
| replacement | |||||
|
9014880002
|
9014880002
90148-80017 New Genuine Part |
90148-80017 |
US $1.49 |
||
|
9014980022
|
9014980022
90149-80022 New Genuine Part |
90149-80022 |
US $1.65 |
||
|
9017908183
|
9017908183
90179-08183 NUT |
90179-08183 |
from US $1.07 |
||
|
9017908230
|
9017908230
90179-08230 New Genuine Part |
90179-08230 |
US $2.33 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.35 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $44.70 |
||
|
9211260825
|
9211260825
92112-60825 Bolt, Stud(For Oil Filter) |
92112-60825 |
US $2.87 |
||
|
9462310800
|
9462310800
94623-10800 Spacer, Shift Lever |
94623-10800 |
US $1.61 |
||
