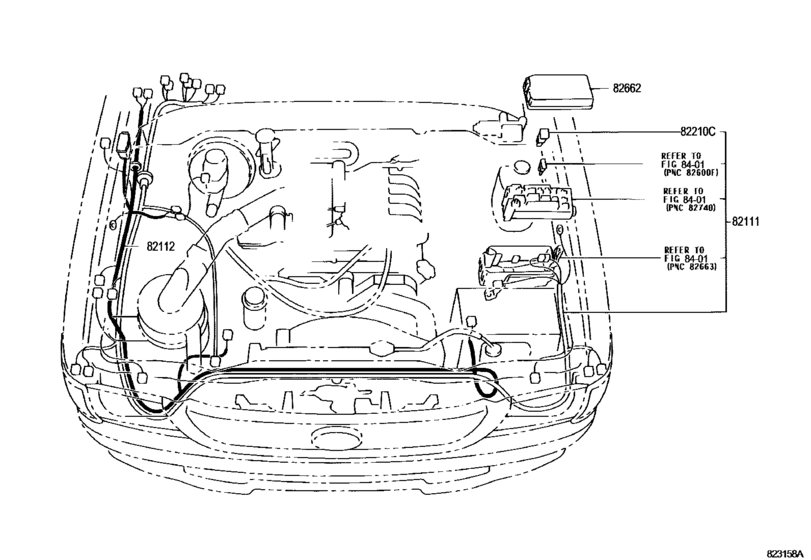

Wiring & Clamp ([08.2002 - ] ENGINE ROOM WIRE (0208- )VZN167,172) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2005
- Sales region
- General
- Frame
- VZN167
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- CAB
- SCB
- Model
- HILUX
- From
- 08.2002
- To
- 02.2005
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Building Condition
- IV3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-3M370 Wire, Engine Room MainENGINE ROOM MAIN [08.2002 - 02.2005] VZN167,172..MTM |
82111-3M370 |
US $1,191.01 |
||
|
82112
|
82112
82112-35040 Wire, Engine Room, No.2[09.2001 - 02.2005] LN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN147,152,172,RZN149,154,VZN167,172..( DCB,SCB,XTR)..ARL |
82112-35040 |
US $218.40 |
||
|
82210C
|
82210C
90982-08202 Fusible Link[08.2001 - 02.2005] RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL 60A,TERMINAL:MALE |
90982-08202 |
US $12.54 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[08.2001 - 02.2005] LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN1 72,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL 100A,TERMINAL:MALE |
90982-08246 |
from US $7.29 |
||
|
82210C
|
82210C
90982-08280 Fusible Link[08.2001 - 02.2005] LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN1 72,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL 30A,TERMINAL:FEMALE,YAZAKI |
90982-08280 |
from US $3.88 |
||
|
82210C
|
82210C
90982-08281 Fusible Link[08.2001 - 02.2005] LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN1 72,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL 40A,TERMINAL:FEMALE,YAZAKI |
90982-08281 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08282 Fusible Link[08.2001 - 02.2005] LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN1 72,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL 50A,TERMINAL:FEMALE,YAZAKI |
90982-08282 |
from US $7.88 |
||
|
82210C
|
82210C
90982-08283 Fusible Link[08.2001 - 02.2005] LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN1 72,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL 30A,TERMINAL:FEMALE |
90982-08283 |
from US $1.38 |
||
|
82210C
|
82210C
90982-08284 Fusible Link[08.2001 - 02.2005] LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN1 72,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL 40A,TERMINAL:FEMALE |
90982-08284 |
from US $10.57 |
||
|
82210C
|
82210C
90982-08285 Fusible Link[08.2001 - 02.2005] LN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN1 72,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.88 |
||
|
82662
|
82662
82662-35700
Cover, Relay Block, Upper
[08.2001 - 02.2005] RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL |
82662-35700 |
— |
