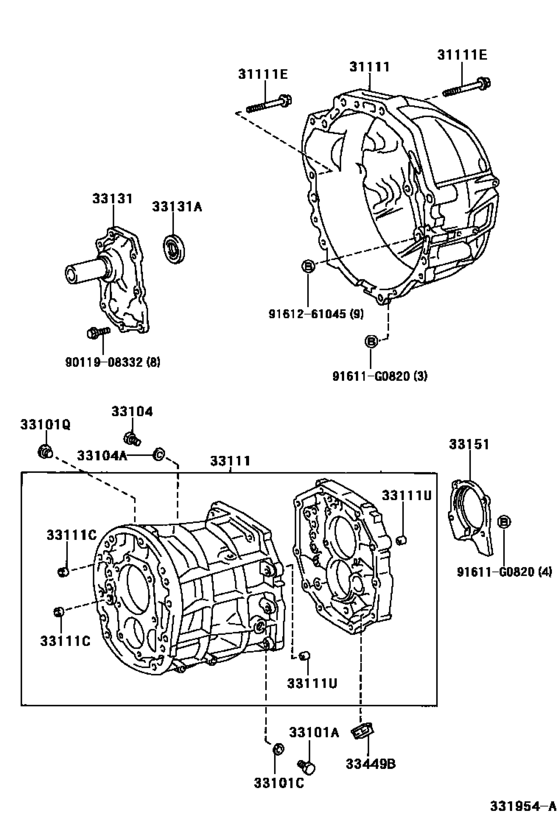

Clutch Housing & Transmission Case (Mtm) ([08.2002 - 01.2005] R151 (0208-0501)VZN167,172..MTM) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2005
- Sales region
- General
- Frame
- VZN172
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- CAB
- XTR
- Model
- HILUX
- From
- 08.2002
- To
- 02.2005
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-35090 Housing, Clutch[08.2002 - 01.2005] VZN167,172..MTM |
31111-35090 |
US $471.74 |
||
|
31111E
|
31111E
90119-12005 Bolt(For Transaxle Case & Engine Setting)[08.2002 -] VZN167,172..MTM *12-1.25PX70-30 |
90119-12005 |
US $2.80 |
||
|
31111E
|
31111E
90119-12287 Bolt(For Transaxle & Engine Setting)[08.2002 -] VZN167,172..MTM *12-1.25PX115-30 |
90119-12287 |
US $6.70 |
||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[08.2001 - 01.2005] LN147..SCB..IV3;KZN165..(DCB,SCB)..DLX;LN147,152..(DCB,XTR)..ARL..CBU;RZN149,154,V ZN167,172..(DCB,SCB,XTR)..MTM..ARL |
90341-18006 |
from US $3.23 |
||
|
33101C
|
33101C
90430-18008 Gasket[08.2001 - 01.2005] VZN167,172..MTM;LN147..SCB..IV3;KZN165..(DCB,SCB)..DLX;LN147,152..(DCB,XTR)..ARL.. CBU |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.2001 - 01.2005] VZN167,172..MTM;LN147..SCB..IV3;KZN165..(DCB,SCB)..DLX;LN147,152..(DCB,XTR)..ARL.. CBU |
90430-T0021 |
US $1.01 |
||
|
33101Q
|
33101Q
90341-16013 Plug, W/head Straight Screw, No.1(For Cylinder Block)[08.2002 - 01.2005] VZN167,172..MTM |
90341-16013 |
US $2.97 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[08.2001 - 01.2005] KZN165..(DCB,SCB)..DLX;RZN149,154,VZN167,172..(DCB,SCB,XTR)..MTM..ARL |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.2001 - 01.2005] VZN167,172..MTM;LN147..SCB..IV3;KZN165..(DCB,SCB)..DLX;LN147,152..(DCB,XTR)..ARL.. CBU |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.2001 - 01.2005] VZN167,172..MTM;LN147..SCB..IV3;KZN165..(DCB,SCB)..DLX;LN147,152..(DCB,XTR)..ARL.. CBU |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33101-60050 Case, Manual Transmission[02.2002 - 01.2005] VZN167,172..MTM;KZN165..(DCB,SCB)..DLX |
33101-60050 |
US $564.93 |
||
| replacement | |||||
|
33111
|
33111
33101-60051 Case, Manual Transmission[02.2002 - 01.2005] VZN167,172..MTM;KZN165..(DCB,SCB)..DLX |
33101-60051 |
US $679.95 |
||
|
33111C
|
33111C
90331-14004 Plug, Manual Transmission Case[09.2001 - 01.2005] VZN167,172..MTM;KZN165..(DCB,SCB)..DLX OD=14 |
90331-14004 |
US $4.68 |
||
|
33111C
|
33111C
96411-41800 Plug, Tight, No.1[09.2001 - 01.2005] VZN167,172..MTM;KZN165..(DCB,SCB)..DLX OD=18 |
96411-41800 |
from US $1.66 |
||
|
33111U
|
33111U
90253-15001 Pin, Straight(For Clutch Housing Set)[09.2001 - 01.2005] VZN167,172..MTM;KZN165..(DCB,SCB)..DLX L=14,OD=15 |
90253-15001 |
from US $1.07 |
||
|
33131
|
33131
33131-35031
Retainer, Bearing, Front(Mtm)
[09.2001 - 01.2005] VZN167,172..MTM;KZN165..(DCB,SCB)..DLX |
33131-35031 |
— | ||
| replacement | |||||
|
33131
|
33131
33131-35032 RETAINER BEARING[09.2001 - 01.2005] VZN167,172..MTM;KZN165..(DCB,SCB)..DLX |
33131-35032 |
from US $55.27 |
||
|
33131A
|
33131A
90311-32012 Seal, Oil(For Transmission Front Bearing Retainer)[09.2001 - 01.2005] VZN167,172..MTM;KZN165..(DCB,SCB)..DLX |
90311-32012 |
from US $6.27 |
||
|
33151
|
33151
33151-35020 Retainer, Output Shaft Rear Bearing(Mtm)[09.2001 - 01.2005] VZN167,172..MTM;KZN165..(DCB,SCB)..DLX |
33151-35020 |
from US $23.52 |
||
|
33449B
|
33449B
33449-35030 Magnet, Transmission[09.2001 - 01.2005] VZN167,172..MTM;KZN165..(DCB,SCB)..DLX |
33449-35030 |
US $2.97 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.23 |
||
|
9161261045
|
9161261045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
