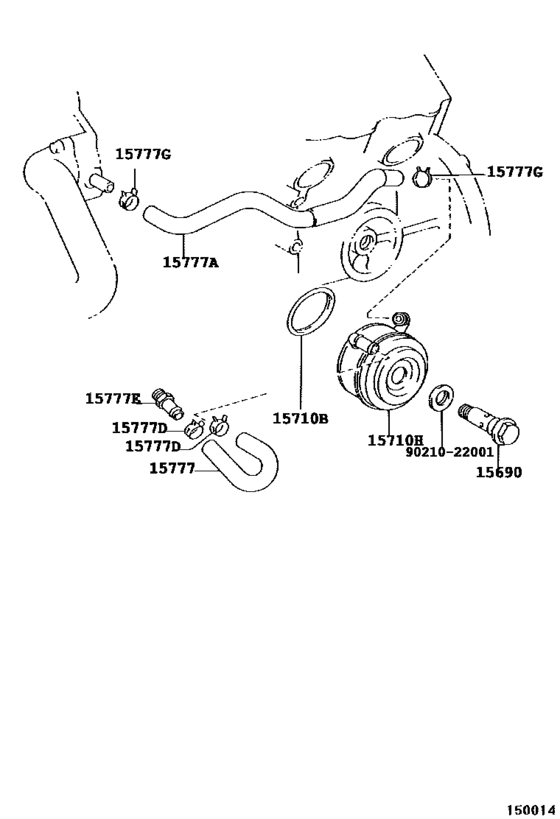

Engine Oil Cooler ([08.2002 - 02.2005] (0208-0502)5VZFE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2005
- Sales region
- General
- Frame
- VZN172
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- CAB
- XTR
- Model
- HILUX
- From
- 08.2002
- To
- 02.2005
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15690
|
15690
15695-62010 Valve Assy, Oil Cooler Relief[08.2002 - 02.2005] 5VZFE..VZN167,172 |
15695-62010 |
US $14.15 |
||
|
15710B
|
15710B
90301-67004 Ring, O(For Oil Thermostat Housing)[08.2002 - 02.2005] 5VZFE..VZN167,172 |
90301-67004 |
from US $3.12 |
||
|
15710H
|
15710H
15710-62040
Cooler Assy, Oil, No.2
[08.2002 - 02.2005] 5VZFE..VZN167,172 |
15710-62040 |
— | ||
|
15777
|
15777
15777-62020 Hose, Oil CoolerOIL COOLER [08.2002 - 02.2005] 5VZFE..VZN167,172 |
15777-62020 |
from US $14.06 |
||
|
15777A
|
15777A
15778-62030 Hose, Oil CoolerOIL COOLER [08.2002 - 02.2005] 5VZFE..VZN167,172 |
15778-62030 |
from US $30.62 |
||
|
15777D
|
15777D
96134-41900 Clip Or Clamp(For Ventilation Hose)[08.2002 - 02.2005] 5VZFE..VZN167,172 |
96134-41900 |
from US $1.61 |
||
|
15777E
|
15777E
90404-53070 Union(For Cylinder Block)[08.2002 - 02.2005] 5VZFE..VZN167,172 |
90404-53070 |
US $7.16 |
||
|
15777G
|
15777G
96134-41900 Clip Or Clamp(For Ventilation Hose)[08.2002 - 02.2005] 5VZFE..VZN167,172 |
96134-41900 |
from US $1.61 |
||
|
9021022001
|
9021022001
90210-22001 Ring, O(For Oil Cooler) |
90210-22001 |
from US $2.75 |
