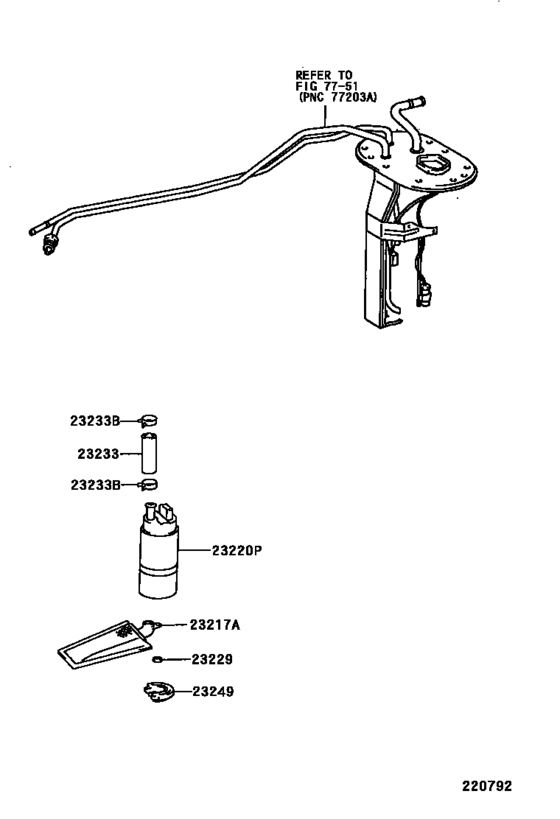

Fuel Injection System ([08.2002 - ] (0208- )5VZFE) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 2002 - 2005
- Sales region
- General
- Frame
- VZN172
- grade
- DLX
- ENGINE
- 5VZFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- CAB
- XTR
- Model
- HILUX
- From
- 08.2002
- To
- 02.2005
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- EFI
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23217A
|
23217A
23217-46090 Filter, Fuel Pump[08.2002 - 02.2005] 5VZFE..VZN167,172 |
23217-46090 |
from US $7.29 |
||
|
23220P
|
23220P
23221-46010 Pump Assy, Fuel[08.2002 - 02.2005] 5VZFE..VZN167,172 |
23221-46010 |
from US $309.50 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[08.2002 - 02.2005] 5VZFE..VZN167,172 |
23229-16010 |
from US $0.82 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[08.2002 - 02.2005] 5VZFE..VZN167,172 |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23239-11010 Hose, Fuel Pump[08.2002 - 02.2005] 5VZFE..VZN167,172 |
23239-11010 |
from US $7.62 |
||
|
23233B
|
23233B
90467-12067 Clip(For Fuel Pump Hose)[08.2002 - 02.2005] 5VZFE..VZN167,172 |
90467-12067 |
from US $1.27 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[08.2002 - 02.2005] 5VZFE..VZN167,172 |
23249-74610 |
from US $8.15 |
||
