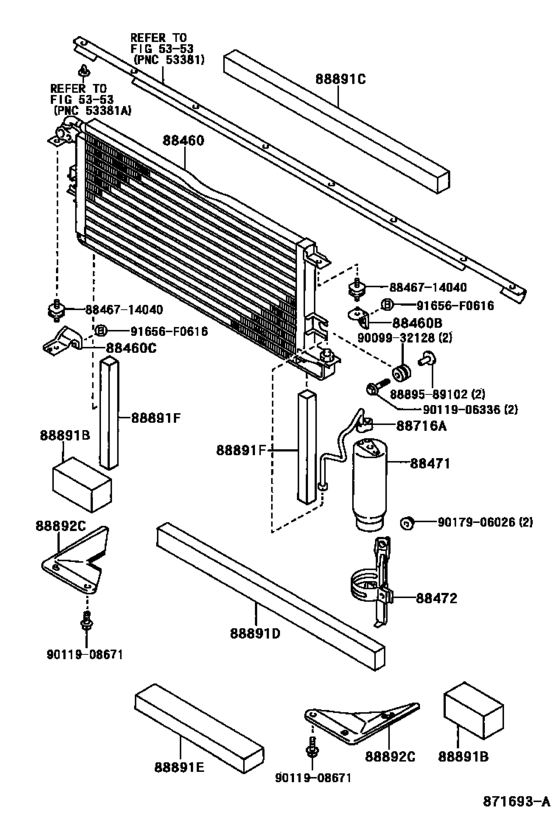

Heating & Air Conditioning - Cooler Piping ([08.1988 - ] CONDENSER & RECEIVER (8808- )LN10#,110,85,90,YN110,85,90..JPP..LHD) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1988 - 1994
- Sales region
- Europe
- Frame
- YN110
- grade
- DLX
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- HILUX
- From
- 08.1988
- To
- 08.1994
- Body
- XTR
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (JPP)
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-35130 Condenser Assy, Cooler[01.1994 - 08.1994] LN10#,110,85,90,YN110,85,90..JPP..LHD |
88460-35130 |
US $323.23 |
||
|
88460
|
88460
88460-89115
Condenser Assy, Cooler
[08.1988 - 10.1990] LN105..JPP..LHD..CBU;LN110,85,90,YN110,85,90..JPP..LHD |
88460-89115 |
— | ||
| replacement | |||||
|
88460
|
88460
88460-35020
Condenser Assy, Cooler
[08.1988 - 10.1990] LN105..JPP..LHD..CBU;LN110,85,90,YN110,85,90..JPP..LHD |
88460-35020 |
— | ||
|
88460B
|
88460B
88688-89120
Bracket, Cooler Condenser, No.1
[08.1988 - 10.1990] LN105..JPP..LHD..CBU;LN110,85,90,YN110,85,90..JPP..LHD |
88688-89120 |
— | ||
|
88460C
|
88460C
88688-89121
Bracket, Cooler Condenser, No.2
[08.1988 - 10.1990] LN105..JPP..LHD..CBU;LN110,85,90,YN110,85,90..JPP..LHD |
88688-89121 |
— | ||
|
88471
|
88471
88471-16040
Receiver & Dryer Assy, Cooler
[08.1988 - 10.1990] LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110,85,90..JPP..LHD |
88471-16040 |
— | ||
| replacement | |||||
|
88471
|
88471
88471-16050 Receiver & Dryer Assy, Cooler[08.1988 - 10.1990] LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110,85,90..JPP..LHD |
88471-16050 |
US $57.46 |
||
|
88471
|
88471
88471-20050
Receiver & Dryer Assy, Cooler
[01.1994 -] LN10#,110,85,90,YN110,85,90..JPP..LHD |
88471-20050 |
— | ||
| replacement | |||||
|
88471
|
88471
88471-34010 Receiver & Dryer Assy, Cooler[01.1994 -] LN10#,110,85,90,YN110,85,90..JPP..LHD |
88471-34010 |
from US $47.25 |
||
|
88471
|
88471
88471-50010
Tank, Receiver Air Conditioner
[05.1993 - 01.1994] LN10#,110,85,90,YN110,85,90..JPP..LHD |
88471-50010 |
— | ||
| replacement | |||||
|
88471
|
88471
88471-16050 Receiver & Dryer Assy, Cooler[05.1993 - 01.1994] LN10#,110,85,90,YN110,85,90..JPP..LHD |
88471-16050 |
US $57.46 |
||
|
88472
|
88472
88472-89110
Bracket, Receiver Tank, No.1
[08.1988 - 10.1990] LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110,85,90..JPP..LHD |
88472-89110 |
— | ||
|
88716A
|
88716A
88716-35230
Pipe, Cooler Refrigerant Liquid, A
[01.1994 -] LN10#,110,85,90,YN110,85,90..JPP..LHD |
88716-35230 |
— | ||
|
88716A
|
88716A
88716-89163
Pipe, Cooler Refrigerant Liquid, A
[08.1988 - 10.1990] LN105..JPP..LHD..CBU;LN110,85,90,YN110,85,90..JPP..LHD |
88716-89163 |
— | ||
|
88891B
|
88891B
88578-89111
Packing B (For Cooler)
[08.1988 - 10.1990] LN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110..JPP |
88578-89111 |
— | ||
|
88891C
|
88891C
88578-89118
Packing C (For Cooler)
[08.1988 - 08.1994] YN110,85,90..JPP..LHD |
88578-89118 |
— | ||
|
88891D
|
88891D
88578-89119
Packing A (For Cooler)
[08.1988 - 10.1990] LN85,90,YN110,85,90..JPP..LHD |
88578-89119 |
— | ||
|
88891F
|
88891F
88578-89122
Packing E (For Cooler)
[08.1988 - 10.1990] LN105..JPP..LHD..CBU;LN110,85,90,YN110,85,90..JPP..LHD LH |
88578-89122 |
— | ||
|
88891F
|
88891F
88578-89123
Packing F (For Cooler)
[08.1988 - 10.1990] LN105..JPP..LHD..CBU;LN110,85,90,YN110,85,90..JPP..LHD RH |
88578-89123 |
— | ||
| replacement | |||||
|
88891F
|
88891F
88578-89122
Packing E (For Cooler)
[08.1988 - 10.1990] LN105..JPP..LHD..CBU;LN110,85,90,YN110,85,90..JPP..LHD RH |
88578-89122 |
— | ||
|
91656F0616
|
91656F0616
91656-F0616
New Genuine Part
|
91656-F0616 |
— | ||
| replacement | |||||
|
91656F0616
|
91656F0616
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
8846714040
|
8846714040
88467-14040 Cushion, Cooler Condenser, No.1 |
88467-14040 |
from US $2.06 |
||
|
8889589102
|
8889589102
88895-89102 Bush |
88895-89102 |
US $1.67 |
||
|
9009932128
|
9009932128
90099-32128 New Genuine Part |
90099-32128 |
US $2.61 |
||
|
9011906336
|
9011906336
90119-06336 SCREW |
90119-06336 |
US $1.43 |
||
|
9011908671
|
9011908671
90119-08671 Bolt |
90119-08671 |
US $1.10 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
