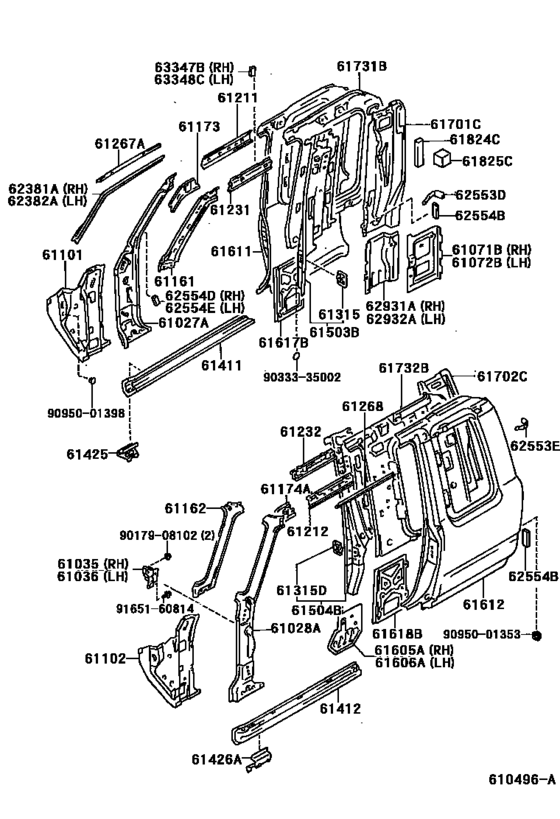

Side Member ([08.1988 - ] (8808- )LN110,90,RN110,YN110,90..JPP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1988 - 1994
- Sales region
- Europe
- Frame
- YN110
- grade
- DLX
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- HILUX
- From
- 08.1988
- To
- 08.1994
- Body
- XTR
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (JPP)
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61027A
|
61027A
61027-89115
Pillar Sub-Assy, Front Body, Outer Rh
[08.1988 -] LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
61027-89115 |
— | ||
|
61028A
|
61028A
61028-89115
Pillar Sub-Assy, Front Body, Outer Lh
[08.1988 -] LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
61028-89115 |
— | ||
|
61035
|
61035
61035-89101 Bracket Sub-Assy, Instrument Panel To Cowl Side, RhINSTRUMENT PANEL TO COWL SIDE, RH [08.1988 -] KZN130,LN10#,110,130,85,90,RN106,110,VZN130,YN110,85,90..JPP..LHD |
61035-89101 |
US $45.43 |
||
|
61071B
|
61071B
61071-89101 Panel Sub-Assy, Roof Side, Inner Rear RhROOF SIDE, INNER REAR RH [08.1988 -] LN110,90,RN110,YN110,90..JPP |
61071-89101 |
US $25.63 |
||
|
61072B
|
61072B
61072-89101 Panel Sub-Assy, Roof Side, Inner Rear LhROOF SIDE, INNER REAR LH [08.1988 -] LN110,90,RN110,YN110,90..JPP |
61072-89101 |
US $25.63 |
||
|
61101
|
61101
61101-89136
Panel Sub-Assy, Cowl Side, Rh
[08.1988 -] LN10#,110,85,90,YN110,85,90..JPP..LHD |
61101-89136 |
— | ||
|
61102
|
61102
61102-89132
Panel Sub-Assy, Cowl Side, Lh
[08.1988 -] LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
61102-89132 |
— | ||
| replacements | |||||
|
61102
|
61102
61102-89135
Panel Sub-Assy, Cowl Side, Lh
[08.1988 -] LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
61102-89135 |
— | ||
|
61102
|
61102
90333-20001 PLUG[08.1988 -] LN10#,110,85,90,RN106,110,YN110,85,90..JPP..LHD |
90333-20001 |
from US $1.21 |
||
|
61161
|
61161
61161-89108 Pillar, Front Body, Upper Inner Rh[08.1988 - 08.1991] LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
61161-89108 |
US $81.54 |
||
|
61162
|
61162
61162-89108 Pillar, Front Body, Upper Inner Lh[08.1988 - 08.1991] LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
61162-89108 |
US $81.54 |
||
|
61173
|
61173
61173-89103 Reinforcement, Front Body Pillar, Upper Inner[08.1988 -] LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
61173-89103 |
US $20.09 |
||
|
61174A
|
61174A
61174-89102 Reinforcement, Front Body Pillar, Upper Inner Lh[08.1988 -] LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
61174-89102 |
US $20.09 |
||
|
61211
|
61211
61211-89107
Rail, Roof Side, Outer Rh
[08.1988 -] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
61211-89107 |
— | ||
|
61212
|
61212
61212-89107 Rail, Roof Side, Outer Lh[08.1988 - 08.1997] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
61212-89107 |
US $44.12 |
||
|
61231
|
61231
61231-89113 Rail, Roof Side, Inner Rh[08.1988 -] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
61231-89113 |
US $38.88 |
||
|
61232
|
61232
61232-89113 Rail, Roof Side, Inner Lh[08.1988 -] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
61232-89113 |
US $38.88 |
||
|
61267A
|
61267A
61267-89101
Channel, Roof Drip Side, Rear Rh
[08.1988 -] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
61267-89101 |
— | ||
|
61268
|
61268
61268-89101
Channel, Roof Drip Side, Rear Lh
[08.1988 -] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
61268-89101 |
— | ||
|
61315
|
61315
61315-22020 Retainer, Door Lock Striker Plate[08.1988 - 08.1991] LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
61315-22020 |
US $18.64 |
||
|
61315D
|
61315D
61315-22020 Retainer, Door Lock Striker Plate[08.1988 - 08.1991] LN105,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP |
61315-22020 |
US $18.64 |
||
|
61411
|
61411
61411-35010 Panel, Rocker, Outer Rh[08.1990 -] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
61411-35010 |
US $209.43 |
||
|
61411
|
61411
61411-89109 Panel, Rocker, Outer Rh[08.1988 - 08.1990] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
61411-89109 |
US $211.12 |
||
| replacement | |||||
|
61411
|
61411
61411-35010 Panel, Rocker, Outer Rh[08.1988 - 08.1990] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
61411-35010 |
US $209.43 |
||
|
61412
|
61412
61412-35010 Panel, Rocker, Outer Lh[08.1990 -] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
61412-35010 |
from US $105.34 |
||
|
61412
|
61412
61412-89109 Panel, Rocker, Outer Lh[08.1988 - 08.1990] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
61412-89109 |
US $211.12 |
||
| replacement | |||||
|
61412
|
61412
61412-35010 Panel, Rocker, Outer Lh[08.1988 - 08.1990] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
61412-35010 |
from US $105.34 |
||
|
61425
|
61425
61425-35010
Reinforcement, Rocker Panel, No.4 Rh
[08.1990 -] LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
61425-35010 |
— | ||
|
61426A
|
61426A
61426-35010 Reinforcement, Rocker Panel, No.4 Lh[08.1990 -] LN10#,110,85,90,RN106,110,YN106,110,85,90..JPP |
61426-35010 |
US $24.32 |
||
|
61503B
|
61503B
61503-89111 Reinforcement Sub-Assy, Quarter Lock Pillar, RhQUARTER LOCK PILLAR, RH [01.1989 -] LN110,90,RN110,YN110,90..JPP |
61503-89111 |
US $158.70 |
||
|
61503B
|
61503B
61503-89113 Reinforcement Sub-Assy, Quarter Lock Pillar, RhQUARTER LOCK PILLAR, RH [08.1988 - 01.1989] LN110,90,RN110,YN110,90..JPP |
61503-89113 |
US $158.70 |
||
| replacement | |||||
|
61503B
|
61503B
61503-89111 Reinforcement Sub-Assy, Quarter Lock Pillar, RhQUARTER LOCK PILLAR, RH [08.1988 - 01.1989] LN110,90,RN110,YN110,90..JPP |
61503-89111 |
US $158.70 |
||
|
61504B
|
61504B
61504-89111 Reinforcement Sub-Assy, Quarter Lock Pillar, LhQUARTER LOCK PILLAR, LH [01.1989 -] LN110,90,RN110,YN110,90..JPP |
61504-89111 |
US $158.70 |
||
|
61504B
|
61504B
61504-89112 Reinforcement Sub-Assy, Quarter Lock Pillar, LhQUARTER LOCK PILLAR, LH [08.1988 - 01.1989] LN110,90,RN110,YN110,90..JPP |
61504-89112 |
US $158.70 |
||
| replacement | |||||
|
61504B
|
61504B
61504-89111 Reinforcement Sub-Assy, Quarter Lock Pillar, LhQUARTER LOCK PILLAR, LH [08.1988 - 01.1989] LN110,90,RN110,YN110,90..JPP |
61504-89111 |
US $158.70 |
||
|
61605A
|
61605A
61605-89101 Reinforcement Sub-Assy, Quarter Panel, RhQUARTER PANEL, RH [08.1988 -] LN110,90,RN110,YN110,90..JPP |
61605-89101 |
US $45.14 |
||
|
61606A
|
61606A
61606-89101 Reinforcement Sub-Assy, Quarter Panel, LhQUARTER PANEL, LH [08.1988 -] LN110,90,RN110,YN110,90..JPP |
61606-89101 |
US $45.14 |
||
|
61611
|
61611
61611-89110
Panel, Quarter, Rh
[08.1988 -] LN110,90,RN110,YN110,90..JPP |
61611-89110 |
— | ||
|
61612
|
61612
61612-89114 Panel, Quarter, LhQUARTER, LH [08.1988 -] LN110,90,RN110,YN110,90..JPP |
61612-89114 |
US $361.09 |
||
|
61617B
|
61617B
61617-35010 Panel, Quarter Inner, Lower RhQUARTER INNER, LOWER RH [08.1992 -] LN110,90,RN110,YN110,90..JPP |
61617-35010 |
US $41.20 |
||
|
61617B
|
61617B
61617-89102 Panel, Quarter Inner, Lower RhQUARTER INNER, LOWER RH [08.1988 - 08.1992] LN110,90,RN110,YN110,90..JPP |
61617-89102 |
US $35.53 |
||
| replacement | |||||
|
61617B
|
61617B
61617-35030 Panel, Quarter Inner, Lower Rh[08.1988 - 08.1992] LN110,90,RN110,YN110,90..JPP |
61617-35030 |
US $41.06 |
||
|
61618B
|
61618B
61618-35010 Panel, Quarter, Inner Lower LhQUARTER, INNER LOWER LH [08.1992 -] LN110,90,RN110,YN110,90..JPP |
61618-35010 |
US $41.20 |
||
|
61618B
|
61618B
61618-89102 Panel, Quarter, Inner Lower LhQUARTER, INNER LOWER LH [08.1988 - 08.1992] LN110,90,RN110,YN110,90..JPP |
61618-89102 |
US $35.53 |
||
| replacement | |||||
|
61618B
|
61618B
61618-35030 Panel, Quarter, Inner Lower Lh[08.1988 - 08.1992] LN110,90,RN110,YN110,90..JPP |
61618-35030 |
US $41.06 |
||
|
61701C
|
61701C
61701-89102 Panel Sub-Assy, Roof Side, Outer RhROOF SIDE, OUTER RH [01.1989 - 11.1996] LN110,90,RN110,YN110,90..JPP |
61701-89102 |
US $190.74 |
||
|
61701C
|
61701C
61701-89103 Panel Sub-Assy, Roof Side, Outer RhROOF SIDE, OUTER RH [08.1988 - 01.1989] LN110,90,RN110,YN110,90..JPP |
61701-89103 |
US $192.19 |
||
| replacement | |||||
|
61701C
|
61701C
61701-89102 Panel Sub-Assy, Roof Side, Outer RhROOF SIDE, OUTER RH [08.1988 - 01.1989] LN110,90,RN110,YN110,90..JPP |
61701-89102 |
US $190.74 |
||
|
61702C
|
61702C
61702-89102 Panel Sub-Assy, Roof Side, Outer LhROOF SIDE, OUTER LH [01.1989 -] LN110,90,RN110,YN110,90..JPP |
61702-89102 |
US $190.74 |
||
|
61702C
|
61702C
61702-89103 Panel Sub-Assy, Roof Side, Outer LhROOF SIDE, OUTER LH [08.1988 - 01.1989] LN110,90,RN110,YN110,90..JPP |
61702-89103 |
US $192.19 |
||
| replacement | |||||
|
61702C
|
61702C
61702-89102 Panel Sub-Assy, Roof Side, Outer LhROOF SIDE, OUTER LH [08.1988 - 01.1989] LN110,90,RN110,YN110,90..JPP |
61702-89102 |
US $190.74 |
||
|
61731B
|
61731B
61731-89101 Panel, Roof Side, Inner RhROOF SIDE, INNER RH [08.1988 -] LN110,90,RN110,YN110,90..JPP |
61731-89101 |
US $142.69 |
||
|
61732B
|
61732B
61732-89101 Panel, Roof Side, Inner LhROOF SIDE, INNER LH [08.1988 -] LN110,90,RN110,YN110,90..JPP |
61732-89101 |
US $142.69 |
||
|
61824C
|
61824C
61824-89105 Pad, Noise Shutter, No.1NOISE SHUTTER, NO.1 [08.1988 -] LN110,90,RN110,YN110,90..JPP |
61824-89105 |
US $4.51 |
||
|
61825C
|
61825C
61825-89102 Pad, Noise Shutter, No.2[08.1988 - 08.1991] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
61825-89102 |
US $5.24 |
||
| replacement | |||||
|
61825C
|
61825C
62151-52010 Pad, Cowl Side Silencer[08.1988 - 08.1991] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
62151-52010 |
US $3.64 |
||
|
61825C
|
61825C
62151-20170 Pad, Noise Shutter, No.1[08.1991 -] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
62151-20170 |
US $5.53 |
||
| replacement | |||||
|
61825C
|
61825C
62151-52010 Pad, Cowl Side Silencer[08.1991 -] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
62151-52010 |
US $3.64 |
||
|
62381A
|
62381A
62381-89101 Weatherstrip, Roof Side Rail, Rh[08.1988 -] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
62381-89101 |
from US $77.78 |
||
|
62382A
|
62382A
62382-89101 Weatherstrip, Roof Side Rail, Lh[08.1988 -] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
62382-89101 |
US $83.52 |
||
|
62553D
|
62553D
62553-89102
Pad, Pillar, No.3
[08.1988 -] LN110,90,RN110,YN110,90..JPP |
62553-89102 |
— | ||
|
62553E
|
62553E
62553-89102
Pad, Pillar, No.3
[08.1988 -] LN110,90,RN110,YN110,90..JPP |
62553-89102 |
— | ||
|
62554B
|
62554B
62554-89101
Pad, Pillar, No.4
[08.1988 -] LN110,90,RN110,YN110,90..JPP |
62554-89101 |
— | ||
|
62554D
|
62554D
62554-89102
Pad, Front Piller
[09.1989 -] LN105..JPP..T1;LN105,VZN130..JPP..LHD..(4D,TW1);LN108,110,130,85,90,RN106,110,YN10 6,110,85,90..JPP |
62554-89102 |
— | ||
|
62554E
|
62554E
62554-89102
Pad, Front Piller
[09.1989 -] LN105..JPP..T1;LN105,VZN130..JPP..LHD..(4D,TW1);LN108,110,130,85,90,RN106,110,YN10 6,110,85,90..JPP |
62554-89102 |
— | ||
|
62931A
|
62931A
62931-89109 Duct, Quarter Vent, RhQUARTER VENT, RH [08.1988 -] LN110,90,RN110,YN110,90..JPP |
62931-89109 |
US $41.93 |
||
|
62932A
|
62932A
62932-89105 Duct, Quarter Vent, LhQUARTER VENT, LH [08.1988 -] LN110,90,RN110,YN110,90..JPP |
62932-89105 |
US $41.93 |
||
|
63347B
|
63347B
63347-89102
Pad, Roof Side Rail Silencer, Rh
[09.1989 -] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
63347-89102 |
— | ||
|
63348C
|
63348C
63347-89102
Pad, Roof Side Rail Silencer, Rh
[09.1989 -] LN105,110,85,90,RN106,110,YN106,110,85,90..JPP..T1 |
63347-89102 |
— | ||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.87 |
||
|
9033335002
|
9033335002
90333-35002 Plug, Hole(For Rear Door Panel) |
90333-35002 |
US $1.43 |
||
|
9095001353
|
9095001353
90950-01353 Plug, Hole(For Rocker Inner Panel) |
90950-01353 |
US $2.33 |
||
|
9095001398
|
9095001398
90950-01398 CUSHION |
90950-01398 |
from US $0.92 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
