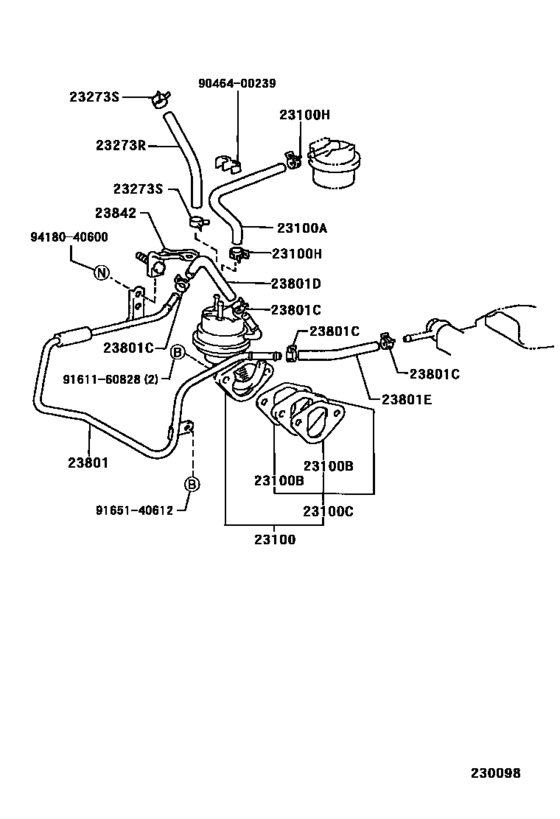

Fuel Pump & Pipe ([08.1998 - ] (9808- )2Y) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1998 - 2000
- Sales region
- General
- Frame
- YN140
- grade
- DLX
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- SA
- CAB
- SCB
- Model
- HILUX
- From
- 08.1998
- To
- 10.2000
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-79027 Pump Assy, Fuel[08.1998 - 10.2000] 2Y..YN140 |
23100-79027 |
from US $72.81 |
||
|
23100A
|
23100A
95334-06040
Hose, Fuel, No.2(For Fuel Main Tube)
[08.1998 - 10.2000] 2Y..YN140 |
95334-06040 |
— | ||
| replacement | |||||
|
23100A
|
23100A
95334-06055
Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
[08.1998 - 10.2000] 2Y..YN140 |
95334-06055 |
— | ||
|
23100B
|
23100B
90923-05022 Gasket, Fuel Pump(For Cylinder Block Plate Plug)[08.1998 - 10.2000] 2Y..YN140 |
90923-05022 |
US $4.08 |
||
|
23100C
|
23100C
90923-06014 Insulator, Fuel Pump[08.1998 - 10.2000] 2Y..YN140 |
90923-06014 |
US $11.71 |
||
|
23100H
|
23100H
96133-41300 Clip(For Air Hose No.6)[08.1998 - 10.2000] 2Y..YN140 |
96133-41300 |
US $1.61 |
||
|
23273R
|
23273R
95334-06040
Hose, Fuel, No.2(For Fuel Main Tube)
[08.1998 - 10.2000] 2Y..YN140 |
95334-06040 |
— | ||
| replacement | |||||
|
23273R
|
23273R
95334-06055
Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
[08.1998 - 10.2000] 2Y..YN140 |
95334-06055 |
— | ||
|
23273S
|
23273S
96133-41300 Clip(For Air Hose No.6)[08.1998 - 10.2000] 2Y..YN140 |
96133-41300 |
US $1.61 |
||
|
23801
|
23801
23811-72010 Pipe Or Hose Sub-Assy, Carburetor Fuel, No.1CARBURETOR FUEL, NO.1 [08.1998 - 10.2000] 2Y..YN140 |
23811-72010 |
US $43.53 |
||
|
23801C
|
23801C
96132-30600
Clip(For Actuator Hose)
[08.1998 - 10.2000] 2Y..YN140 |
96132-30600 |
— | ||
| replacement | |||||
|
23801C
|
23801C
96132-51100 Clip (For Hose)[08.1998 - 10.2000] 2Y..YN140 |
96132-51100 |
from US $1.42 |
||
|
23801D
|
23801D
90910-05225 Hose, Fuel Pipe, No.1[12.1999 - 10.2000] 2Y..YN140 |
90910-05225 |
US $6.55 |
||
|
23801D
|
23801D
95333-06010 Hose, Fuel[08.1998 - 12.1999] 2Y..YN140 *H,L=100 |
95333-06010 |
US $5.38 |
||
|
23801E
|
23801E
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1998 - 10.2000] 2Y..YN140 |
95333-06020 |
— | ||
| replacement | |||||
|
23801E
|
23801E
95337-06020 Hose, Differential Pressure Control[08.1998 - 10.2000] 2Y..YN140 |
95337-06020 |
from US $10.21 |
||
|
23842
|
23842
23841-71012 Clamp, Fuel Pipe(Hose), No.2[08.1998 - 10.2000] 2Y..YN140 |
23841-71012 |
US $2.91 |
||
|
9046400239
|
9046400239
90464-00239 New Genuine Part |
90464-00239 |
from US $3.49 |
||
|
9161160828
|
9161160828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.97 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.61 |
||
