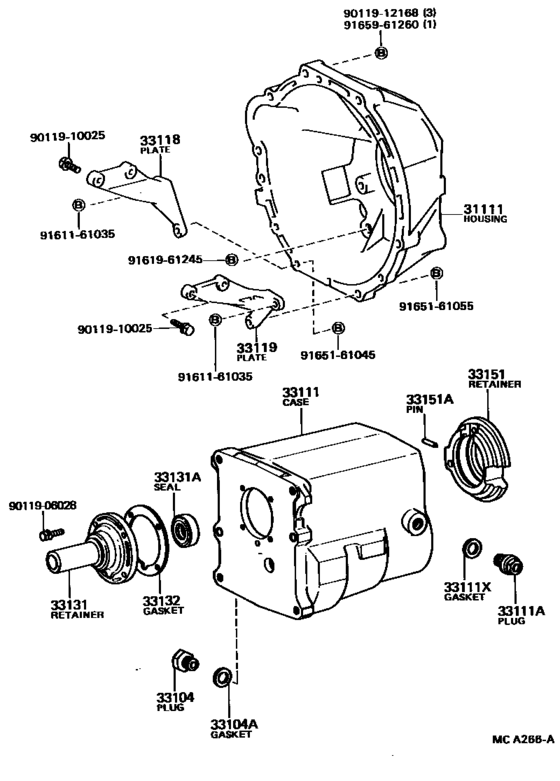

Clutch Housing & Transmission Case (Mtm) ([08.1983 - 08.1991] (8308-9108)4H ; (8308- )YN50,55..4F) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1986 - 1991
- Sales region
- Europe
- Frame
- YN51
- grade
- STD
- body
- T1
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- SA
- CAB
- RCB
- Model
- HILUX
- From
- 08.1986
- To
- 08.1991
- Gear Shift Type
- 4H
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-28010 Housing, Clutch[08.1983 - 08.1991] YN50,51,55,56..4H |
31111-28010 |
US $320.32 |
||
|
31111
|
31111
31111-30180
Housing, Clutch
[12.1990 - 07.1998] YN5#,67 |
31111-30180 |
— | ||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[08.1983 - 07.1998] RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..4F,4H,5F |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.1984 - 07.1998] RN58..SR5;LN51,56,60,61,65,RN50,55,6#,YN5#,6#..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1984 - 07.1998] RN58..SR5;LN51,56,60,61,65,RN50,55,6#,YN5#,6#..MTM |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33111-35031 Case, Manual Transmission[08.1983 - 08.1991] YN50,51,55,56..4H |
33111-35031 |
US $646.46 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[08.1983 - 07.1998] YN58..4F;YN58..5F..(SR5,STD);LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4H,5F |
90341-18006 |
from US $3.23 |
||
|
33111X
|
33111X
90430-18008 Gasket[08.1985 - 07.1998] RN58..SR5;LN51,56,RN50,55,61,YN5#..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1985 - 07.1998] RN58..SR5;LN51,56,RN50,55,61,YN5#..MTM |
90430-T0021 |
US $1.01 |
||
|
33118
|
33118
33118-28010
Plate, Stiffener, Rh(Mtm)
[08.1983 - 07.1998] YN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F |
33118-28010 |
— | ||
|
33119
|
33119
33119-28010 Plate, Stiffener, Lh(Mtm)[08.1983 - 07.1998] YN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F |
33119-28010 |
US $20.53 |
||
|
33131
|
33131
33131-20050 Retainer, Bearing, Front(Mtm)[08.1983 - 08.1991] YN50,51,55,56..4H |
33131-20050 |
US $80.08 |
||
|
33131A
|
33131A
90311-32106 Seal, Oil(For Transmission Front Bearing Retainer)[08.1983 - 08.1991] YN50,51,55,56..4H |
90311-32106 |
from US $4.30 |
||
|
33132
|
33132
33132-30030
Gasket, Front Bearing Retainer(Mtm)
[08.1983 - 08.1991] YN50,51,55,56..4H |
33132-30030 |
— | ||
|
33151
|
33151
33151-26010 Retainer, Output Shaft Rear Bearing(Mtm)[08.1983 - 08.1991] YN50,51,55,56..4H |
33151-26010 |
US $66.10 |
||
|
33151A
|
33151A
90254-05005 Pin, Slotted Spring(For Transmission Front Bearing Retainer)[08.1983 - 08.1991] YN50,51,55,56..4H |
90254-05005 |
US $1.75 |
||
|
9011906028
|
9011906028
90119-06028 New Genuine Part |
90119-06028 |
US $1.89 |
||
|
9011910025
|
9011910025
90119-10025 Bolt (For Transmission Control Cable Bracket) |
90119-10025 |
US $1.89 |
||
| replacement | |||||
|
9011910025
|
9011910025
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9011912168
|
9011912168
90119-12168 Bolt(For Transaxle & Engine Setting) |
90119-12168 |
from US $2.01 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.13 |
||
|
9161961245
|
9161961245
91619-61245 Bolt(For Transaxle & Engine Setting) |
91619-61245 |
from US $1.81 |
||
|
9165161045
|
9165161045
91651-61045 BOLT |
91651-61045 |
US $0.96 |
||
|
9165161055
|
9165161055
91651-61055 New Genuine Part |
91651-61055 |
US $2.62 |
||
| replacement | |||||
|
9165161055
|
9165161055
91651-61060 New Genuine Part |
91651-61060 |
US $0.96 |
||
|
9165961260
|
9165961260
91659-61260 Bolt(For Transaxle & Engine Setting) |
91659-61260 |
US $3.64 |
||
