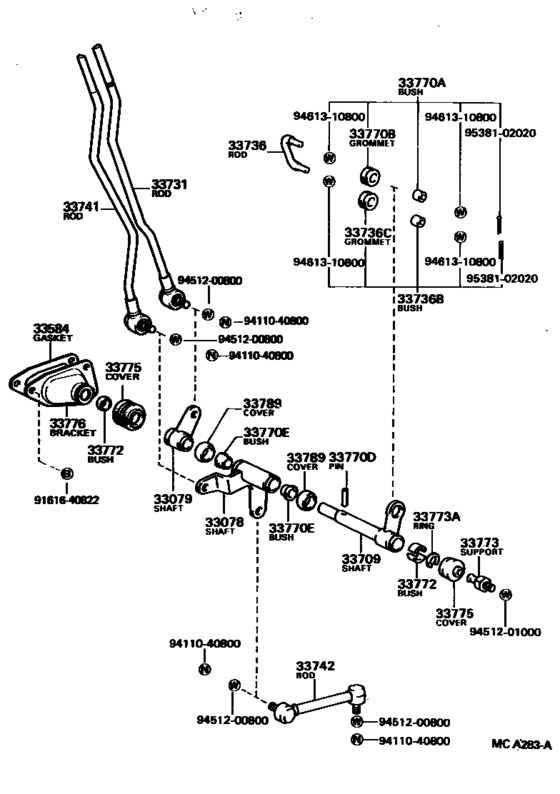

Control Shaft & Crossshaft ([08.1983 - 08.1991] (8308-9108)4H) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1986 - 1991
- Sales region
- Europe
- Frame
- YN51
- grade
- STD
- body
- T1
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- SA
- CAB
- RCB
- Model
- HILUX
- From
- 08.1986
- To
- 08.1991
- Gear Shift Type
- 4H
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33078
|
33078
33078-35090 Shaft Sub-Assy, Cross, No.2(For Column Shift)[08.1983 - 08.1991] YN50,51,55,56..4H |
33078-35090 |
US $30.87 |
||
|
33079
|
33079
33079-35060 Shaft Sub-Assy, Cross, No.3(For Column Shift)[08.1983 - 07.1998] YN50,51,55,56..4H |
33079-35060 |
US $24.90 |
||
|
33584
|
33584
33584-35060 Gasket, Control Shift Lever Retainer (For Column Shift)[08.1983 - 07.1998] YN50,51,55,56..4H |
33584-35060 |
US $3.49 |
||
|
33709
|
33709
33709-35100 Shaft Sub-Assy, Cross, No.1 (For Column Shift)[08.1983 - 08.1991] YN50,51,55,56..4H |
33709-35100 |
US $49.65 |
||
|
33731
|
33731
33720-35150
Rod, Gear Selecting, No.1 (For Column Shift)
[08.1983 - 07.1998] YN50,51,55,56..4H |
33720-35150 |
— | ||
|
33736
|
33736
33736-35030 Rod, Gear Selecting, No.2(For Column Shift)[08.1983 - 08.1991] YN50,51,55,56..4H |
33736-35030 |
US $4.95 |
||
|
33736B
|
33736B
90999-99017 Bush (For Transmission Control Rod)[08.1983 - 07.1998] YN50,51,55,56..4H |
90999-99017 |
from US $3.10 |
||
|
33736C
|
33736C
90480-17177 Grommet (For Transmission Control Rod)[08.1983 - 07.1998] YN50,51,55,56..4H |
90480-17177 |
from US $2.07 |
||
|
33741
|
33741
33710-35110
Rod, Gear Shifting, No.1 (For Column Shift)
[08.1983 - 07.1998] YN50,51,55,56..4H |
33710-35110 |
— | ||
|
33742
|
33742
33730-35040 Rod, Gear Shifting, No.2(For Column Shift)[08.1983 - 08.1991] YN50,51,55,56..4H |
33730-35040 |
US $31.16 |
||
|
33770A
|
33770A
90999-99017 Bush (For Transmission Control Rod)[08.1983 - 07.1998] YN50,51,55,56..4H |
90999-99017 |
from US $3.10 |
||
|
33770B
|
33770B
90480-17177 Grommet (For Transmission Control Rod)[08.1983 - 07.1998] YN50,51,55,56..4H |
90480-17177 |
from US $2.07 |
||
|
33770D
|
33770D
90256-06001 Pin (For Gear Selecting Shaft)[08.1983 - 07.1998] YN50,51,55,56..4H |
90256-06001 |
US $4.95 |
||
|
33770E
|
33770E
90386-13007 Bush(For Clutch Pedal)[08.1983 - 07.1998] YN50,51,55,56..4H |
90386-13007 |
from US $2.48 |
||
|
33772
|
33772
33772-20010 Bush (For Control Rod Support)[08.1983 - 07.1998] YN50,51,55,56..4H SUPPORT SIDE |
33772-20010 |
from US $4.43 |
||
|
33772
|
33772
33772-35011 Bush, No.1, Cross Shaft Support (For Column Shift)[08.1983 - 07.1998] YN50,51,55,56..4H BRACKET SIDE |
33772-35011 |
US $2.61 |
||
|
33773
|
33773
33773-20011
Support, Cross Shaft, No.1 (For Colum Shift)
[08.1983 - 07.1998] YN50,51,55,56..4H |
33773-20011 |
— | ||
|
33773A
|
33773A
96151-01600
Ring, Snap
[08.1983 - 07.1998] YN50,51,55,56..4H |
96151-01600 |
— | ||
|
33775
|
33775
33775-20020 Cover, Cross Shaft Dust (For Column Shift)[08.1983 - 07.1998] YN50,51,55,56..4H SUPPORT SIDE |
33775-20020 |
US $3.76 |
||
|
33775
|
33775
33775-35030
Cover, Cross Shaft Dust (For Column Shift)
[08.1983 - 07.1998] YN50,51,55,56..4H BRACKET SIDE |
33775-35030 |
— | ||
|
33776
|
33776
33776-35080 Bracket, Cross Shaft, No.1 (For Column Shift)[08.1983 - 07.1998] YN50,51,55,56..4H |
33776-35080 |
US $13.10 |
||
|
33789
|
33789
33789-36010
Cover, Cross Shaft Dust, No.1 (For Floor Shift)
[08.1983 - 07.1998] YN50,51,55,56..4H |
33789-36010 |
— | ||
| replacement | |||||
|
33789
|
33789
33789-36020 Cover, Cross Shaft Dust(For Column Shift)[08.1983 - 07.1998] YN50,51,55,56..4H |
33789-36020 |
US $6.46 |
||
|
9161640822
|
9161640822
91616-40822 Bolt(For Transaxle & Engine Setting) |
91616-40822 |
US $1.60 |
||
| replacement | |||||
|
9161640822
|
9161640822
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.80 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9538102020
|
9538102020
95381-02020 PIN |
95381-02020 |
US $1.08 |
||
