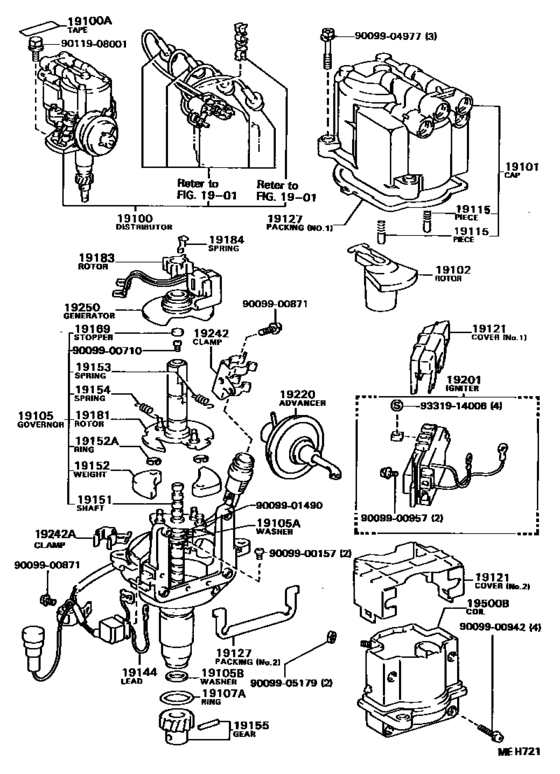

Distributor ([11.1984 - 08.1988] (8411-8808)2YJ..YN56..LPG ; (8608- )2YJ,3YJ) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- YN56
- grade
- DLX
- body
- T3
- ENGINE
- 2YJ
- TRANSMISSION
- MTM
- Model
- HILUX
- From
- 11.1983
- Engine
- 3YP
- To
- 08.1985
- Gear Shift Type
- 4H
- Vehicle Model
- Hilux
- Fuel Induction
- LPG
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19030-72010 Distributor Assy[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19030-72010 |
US $1,674.40 |
||
| replacement | |||||
|
19100
|
19100
19030-72012 Distributor Assy[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19030-72012 |
US $1,645.28 |
||
|
19100
|
19100
19100-71010
Distributor Assy
[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19100-71010 |
— | ||
|
19100A
|
19100A
90919-24004
Tape, Sealing
[11.1983 - 03.1989] 2YJ,3Y#..YN5#,6# |
90919-24004 |
— | ||
| replacement | |||||
|
19100A
|
19100A
90919-24003
Tape, Sealing
[11.1983 - 03.1989] 2YJ,3Y#..YN5#,6# |
90919-24003 |
— | ||
|
19101
|
19101
19101-71010 Cap Sub-Assy, Distributor[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19101-71010 |
US $149.24 |
||
|
19101
|
19101
19101-71020 Cap Sub-Assy, Distributor[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19101-71020 |
US $33.70 |
||
|
19102
|
19102
19102-33012 Rotor Sub-Assy, Distributor[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19102-33012 |
from US $9.93 |
||
|
19102
|
19102
19102-63010
Rotor Sub-Assy, Distributor
[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19102-63010 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-73021 Rotor Sub-Assy, Distributor[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19102-73021 |
US $19.15 |
||
|
19105
|
19105
19105-71011 Governor Sub-Assy[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19105-71011 |
US $109.20 |
||
|
19105
|
19105
19105-72010 Governor Sub-Assy[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19105-72010 |
US $154.34 |
||
|
19105A
|
19105A
90099-01385
Washer(For Governor Shaft Thrust)
[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# 厚さ＝２．５,T=2.5 |
90099-01385 |
— | ||
|
19105A
|
19105A
90099-01386
Washer(For Governor Shaft Thrust)
[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# 厚さ＝２．７,T=2.7 |
90099-01386 |
— | ||
|
19105A
|
19105A
90099-01387
Washer(For Governor Shaft Thrust)
[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# 厚さ＝２．９,T=2.9 |
90099-01387 |
— | ||
|
19105A
|
19105A
90099-01412
Washer(For Governor Shaft Thrust)
[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# 厚さ＝２．３,T=2.3 |
90099-01412 |
— | ||
|
19105A
|
19105A
90099-01492
Washer(For Governor Shaft Thrust)
[11.1984 - 08.1988] 2YJ..YN56..LPG 厚さ＝３．４,T=3.4,LPG PACKAGE,3YP |
90099-01492 |
— | ||
|
19105A
|
19105A
90099-01493
Washer(For Governor Shaft Thrust)
[11.1984 - 08.1988] 2YJ..YN56..LPG 厚さ＝３．６,T=3.6,LPG PACKAGE,3YP |
90099-01493 |
— | ||
|
19105A
|
19105A
90099-01494
Washer(For Governor Shaft Thrust)
[11.1984 - 08.1988] 2YJ..YN56..LPG 厚さ＝３．８,T=3.8,LPG PACKAGE,3YP |
90099-01494 |
— | ||
|
19105A
|
19105A
90099-01495
Washer(For Governor Shaft Thrust)
[11.1984 - 08.1988] 2YJ..YN56..LPG 厚さ＝４．０,T=4.0,LPG PACKAGE,3YP |
90099-01495 |
— | ||
|
19105B
|
19105B
90099-01429
Washer, No.2(For Governor Shaft Thrust)
[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
90099-01429 |
— | ||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[11.1983 - 03.1989] 2YJ,3Y#..YN5#,6# |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[11.1983 - 03.1989] 2YJ,3Y#..YN5#,6# |
90099-14090 |
from US $2.80 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19115-50010 |
— | ||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19115-63010 |
from US $1.40 |
||
|
19121
|
19121
19121-38030
Cover, Dust Proof
[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19121-38030 |
— | ||
|
19121
|
19121
19121-63010
Cover, Dust Proof
[11.1984 - 08.1988] 2YJ..YN56..LPG NO.1,LPG PACKAGE,3YP |
19121-63010 |
— | ||
|
19121
|
19121
19121-63040
Cover, Dust Proof
[11.1984 - 08.1988] 2YJ..YN56..LPG NO.2,LPG PACKAGE,3YP |
19121-63040 |
— | ||
|
19127
|
19127
19127-15010
Packing, Dust Proof
[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19127-15010 |
— | ||
|
19127
|
19127
19127-63010 Packing, Dust Proof[11.1984 - 08.1988] 2YJ..YN56..LPG NO.1,LPG PACKAGE,3YP |
19127-63010 |
from US $7.34 |
||
|
19127
|
19127
19127-63020 Packing, Dust Proof[11.1984 - 08.1988] 2YJ..YN56..LPG NO.2,LPG PACKAGE,3YP |
19127-63020 |
US $4.37 |
||
|
19144
|
19144
19144-34180
Lead, Distributor Breaker
[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19144-34180 |
— | ||
| replacement | |||||
|
19144
|
19144
19144-34190
Lead, Distributor Breaker
[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19144-34190 |
— | ||
|
19144
|
19144
19144-71011
Lead, Distributor Breaker
[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19144-71011 |
— | ||
| replacement | |||||
|
19144
|
19144
19144-73050
Lead, Distributor Breaker
[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19144-73050 |
— | ||
|
19151
|
19151
19151-71010 Shaft, Governor[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19151-71010 |
US $39.46 |
||
|
19151
|
19151
19151-71020 Shaft, Governor[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19151-71020 |
US $57.51 |
||
|
19152
|
19152
19152-44170
Weight, Governor
[11.1983 - 12.1983] 2YJ,3YJ..YN56,6# |
19152-44170 |
— | ||
|
19152
|
19152
19152-63010
Weight, Governor
[12.1983 - 08.1985] 2YJ,3YJ..YN5#,6# |
19152-63010 |
— | ||
|
19152
|
19152
19152-71010 Weight, Governor[08.1985 - 08.1987] 2YJ,3YJ..YN5#,6# |
19152-71010 |
US $12.38 |
||
|
19152A
|
19152A
90099-07109
Ring, Snap(For Governor Weight)
[11.1983 - 12.1983] 2YJ,3YJ..YN56,6# |
90099-07109 |
— | ||
|
19152A
|
19152A
90099-07122
Ring, Snap(For Governor Weight)
[12.1983 - 03.1989] 2YJ,3YJ..YN5#,6# |
90099-07122 |
— | ||
|
19153
|
19153
19153-71011 Spring, Governor, A[11.1983 - 12.1983] 2YJ,3YJ..YN56,6# |
19153-71011 |
US $5.10 |
||
|
19153
|
19153
19153-71012 Spring, Governor, A[12.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19153-71012 |
US $5.24 |
||
|
19153
|
19153
19153-72010 Spring, Governor, A[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19153-72010 |
US $5.24 |
||
|
19154
|
19154
19153-71011 Spring, Governor, A[11.1983 - 12.1983] 2YJ,3YJ..YN56,6# |
19153-71011 |
US $5.10 |
||
|
19154
|
19154
19153-71012 Spring, Governor, A[12.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19153-71012 |
US $5.24 |
||
|
19154
|
19154
19154-72010 Spring, Governor, B[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19154-72010 |
US $5.24 |
||
|
19155
|
19155
19195-71010
Gear, Spiral, Distributor
[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19195-71010 |
— | ||
| replacement | |||||
|
19155
|
19155
19195-72090 Gear, Spiral, Distributor[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19195-72090 |
US $43.68 |
||
|
19155
|
19155
19195-71011 Gear, Spiral, Distributor[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19195-71011 |
US $41.93 |
||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[11.1983 - 05.1987] 2YJ,3YJ..YN5#,6# |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[11.1983 - 05.1987] 2YJ,3YJ..YN5#,6# |
19169-63011 |
— | ||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[05.1987 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19169-63011 |
— | ||
|
19181
|
19181
19181-72010
Rotor, Distributor, Signal
[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19181-72010 |
— | ||
| replacement | |||||
|
19181
|
19181
19181-72011
Rotor, Distributor, Signal
[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19181-72011 |
— | ||
|
19183
|
19183
19183-63030
Rotor, Signal
[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19183-63030 |
— | ||
|
19184
|
19184
19184-63010
Spring, Rotor Set
[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19184-63010 |
— | ||
|
19201
|
19201
89620-32020 Igniter[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
89620-32020 |
US $285.38 |
||
|
19220
|
19220
19220-71011
Advancer Assy, Vacuum, Distributor
[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
19220-71011 |
— | ||
|
19220
|
19220
19220-72010 Advancer Assy, Vacuum, Distributor[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19220-72010 |
US $90.27 |
||
|
19242
|
19242
19242-71010 Clamp, Cord[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19242-71010 |
US $10.77 |
||
|
19250
|
19250
19251-72021 Generator Assy, Signal[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
19251-72021 |
US $163.07 |
||
|
19500B
|
19500B
90919-02139 Coil Assy, Ignition[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
90919-02139 |
US $169.48 |
||
|
9009900157
|
9009900157
90099-00157
Bush, Commutator End Frame
|
90099-00157 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900942
|
9009900942
90099-00942 New Genuine Part |
90099-00942 |
US $1.75 |
||
|
9009900957
|
9009900957
90099-00957
New Genuine Part
|
90099-00957 |
— | ||
|
9009901490
|
9009901490
90099-01490
New Genuine Part
|
90099-01490 |
— | ||
|
9009904977
|
9009904977
90099-04977 BOLT |
90099-04977 |
from US $1.46 |
||
|
9009905179
|
9009905179
90099-05179
New Genuine Part
|
90099-05179 |
— | ||
|
9011908001
|
9011908001
90119-08001 New Genuine Part |
90119-08001 |
US $2.87 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
