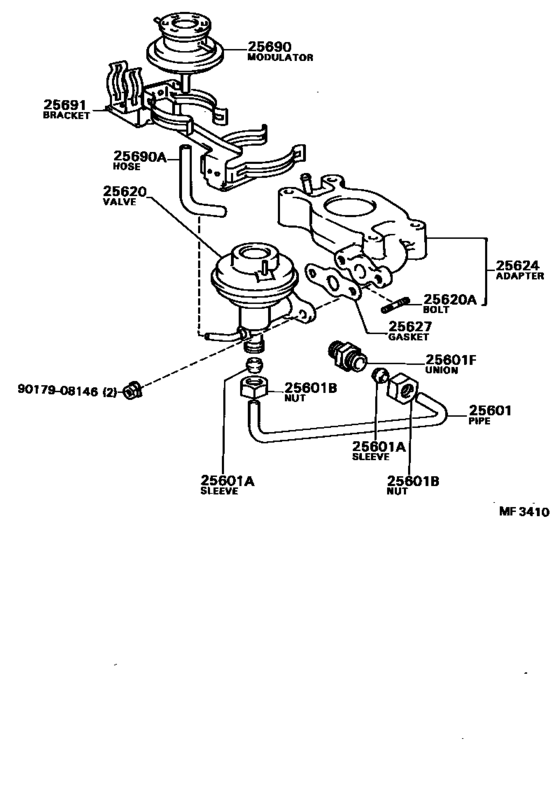

Exhaust Gas Recirculation System ([11.1984 - 08.1988] (8411-8808)2YJ..YN56..LPG) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- YN56
- grade
- DLX
- body
- T3
- ENGINE
- 2YJ
- TRANSMISSION
- MTM
- Model
- HILUX
- From
- 11.1983
- Engine
- 3YP
- To
- 08.1985
- Gear Shift Type
- 4H
- Vehicle Model
- Hilux
- Fuel Induction
- LPG
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25611-73020 Pipe Sub-Assy, Egr, No.1[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
25611-73020 |
US $24.75 |
||
|
25601A
|
25601A
90410-12042 Sleeve, Ball, Egr Pipe, No.1[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE |
90410-12042 |
from US $12.54 |
||
|
25601B
|
25601B
90402-20073 Nut, Union, Egr Pipe, No.1[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
90402-20073 |
US $19.66 |
||
|
25601F
|
25601F
90404-20011 Union(For Egr Pipe, No.1)[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
90404-20011 |
US $8.15 |
||
|
25620
|
25620
25620-72010 Valve Assy, Egr[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
25620-72010 |
US $270.82 |
||
| replacements | |||||
|
25620
|
25620
90445-11130 Hose(For Egr Vacuum Modulator)[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
90445-11130 |
US $5.56 |
||
|
25620
|
25620
25620-72011 Valve Assy, Egr[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
25620-72011 |
US $263.54 |
||
|
25620
|
25620
25620-72020
Valve Assy, Egr
[11.1983 - 08.1986] 2YJ..YN5# |
25620-72020 |
— | ||
|
25620A
|
25620A
90116-08008 Bolt, Stud(For Egr Valve)[11.1984 - 11.1986] 2YJ..YN56..LPG LPG PACKAGE,3YP |
90116-08008 |
US $2.34 |
||
|
25620A
|
25620A
92112-40820 Bolt, Stud(For Manifold To Venturi)[11.1986 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
92112-40820 |
US $1.05 |
||
|
25624
|
25624
25607-72010 Adapter, Egr Valve[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
25607-72010 |
US $58.82 |
||
| replacement | |||||
|
25624
|
25624
25607-72011 Adapter Sub-Assy, Egr Valve[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
25607-72011 |
US $58.82 |
||
|
25627
|
25627
25627-31020 Gasket, Egr Inlet[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
25627-31020 |
US $2.77 |
||
|
25627
|
25627
25627-71010 Gasket, Egr Valve[11.1983 - 03.1989] 2YJ,3YJ..YN5#,6# |
25627-71010 |
US $3.49 |
||
| replacement | |||||
|
25627
|
25627
25627-71011 Gasket, Egr Valve[11.1983 - 03.1989] 2YJ,3YJ..YN5#,6# |
25627-71011 |
US $3.49 |
||
|
25690
|
25690
25870-71020 Modulator Assy, Egr Vacuum[11.1983 - 06.1986] 2YJ,3YJ..YN5#,6# |
25870-71020 |
US $103.38 |
||
| replacement | |||||
|
25690
|
25690
25870-71021 Modulator Assy, Egr Vacuum[11.1983 - 06.1986] 2YJ,3YJ..YN5#,6# |
25870-71021 |
US $106.29 |
||
|
25690
|
25690
25870-72010 Modulator Assy, Egr Vacuum[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
25870-72010 |
US $101.92 |
||
| replacement | |||||
|
25690
|
25690
25870-71011 Modulator Assy, Egr Vacuum[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
25870-71011 |
from US $87.63 |
||
|
25690A
|
25690A
90445-11065
Hose(For Egr Vacuum Modulator)
[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
90445-11065 |
— | ||
|
25690A
|
25690A
90910-05137 Hose(For Egr Vacuum Modulator)[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
90910-05137 |
US $9.76 |
||
| replacement | |||||
|
25690A
|
25690A
90910-05128 Hose(For Egr Vacuum Modulator)[11.1984 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
90910-05128 |
US $9.76 |
||
|
25691
|
25691
25691-71020 Bracket, Egr Vacuum Modulator[11.1983 - 08.1986] 2YJ,3YJ..YN5#,6# |
25691-71020 |
US $8.01 |
||
|
25691
|
25691
25691-72010 Bracket, Egr Vacuum Modulator[11.1984 - 07.1987] 2YJ..YN56..LPG LPG PACKAGE,3YP |
25691-72010 |
US $15.87 |
||
|
25691
|
25691
25691-73030 Bracket, Egr Vacuum Modulator[07.1987 - 08.1988] 2YJ..YN56..LPG LPG PACKAGE,3YP |
25691-73030 |
US $14.56 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
