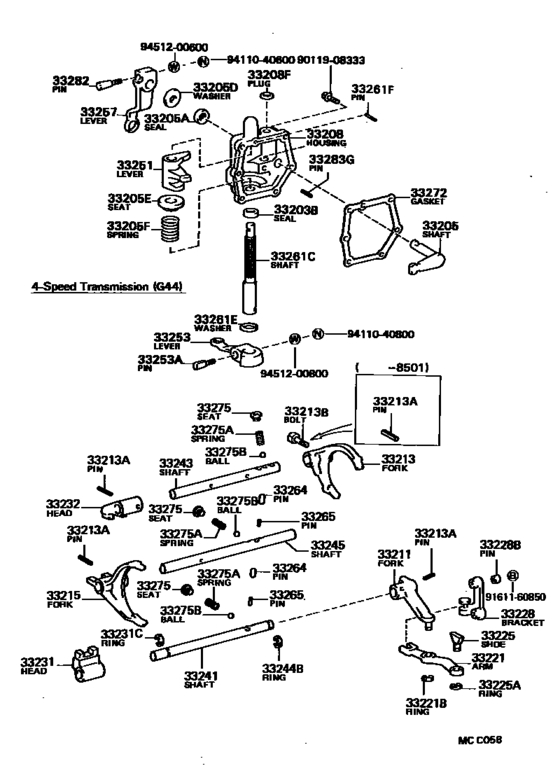

Gear Shift Fork & Lever Shaft (Mtm) ([10.1984 - 08.1985] LPG PACKAGE (8410-8508)LPG) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- YN56
- grade
- DLX
- body
- T3
- ENGINE
- 2YJ
- TRANSMISSION
- MTM
- Model
- HILUX
- From
- 11.1983
- Engine
- 3YP
- To
- 08.1985
- Gear Shift Type
- 4H
- Vehicle Model
- Hilux
- Fuel Induction
- LPG
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33203B
|
33203B
90311-13050 Seal, Oil(For Shift Lever Shaft)[11.1983 - 08.1985] YN5#..4H UPR |
90311-13050 |
US $1.75 |
||
|
33203B
|
33203B
90312-15003 Seal, Oil(For Shift Lever Shaft)[11.1983 - 08.1985] YN5#..4H LWR |
90312-15003 |
US $1.51 |
||
|
33205
|
33205
33262-26010 Shaft Sub-Assy, Select Lever[11.1983 - 08.1985] YN5#..4H |
33262-26010 |
US $12.67 |
||
|
33205A
|
33205A
90313-13001 Seal, Oil(For Shift Lever Shaft)[11.1983 - 08.1988] LN5#,YN5#..MTM |
90313-13001 |
from US $2.87 |
||
|
33205D
|
33205D
94612-11300 Washer(For Outer Lever Oil Setting)[11.1983 - 08.1988] LN51,55,56,YN5#..MTM |
94612-11300 |
from US $0.70 |
||
|
33213
|
33213
33212-28010 Fork, Gear Shift, No.1[11.1983 - 08.1985] YN5#..4H |
33212-28010 |
US $80.08 |
||
|
33213A
|
33213A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[11.1983 - 03.1989] LN5#,6#,YN5#,6#..MTM..(CBR,DSL,EFI) |
90254-05001 |
from US $0.98 |
||
|
33215
|
33215
33213-26020
Fork, Gear Shift, No.2
[11.1983 - 08.1985] YN5#..4H |
33213-26020 |
— | ||
|
33221
|
33221
33221-30010 Arm, Reverse Shift[11.1983 - 08.1985] YN5#..4H |
33221-30010 |
US $33.78 |
||
|
33231
|
33231
33231-26010 Head, Reverse Shift[11.1983 - 08.1985] YN5#..4H |
33231-26010 |
US $42.22 |
||
|
33241
|
33241
33241-26010 Shaft, Reverse Shift Fork[11.1983 - 08.1985] YN5#..4H |
33241-26010 |
US $18.64 |
||
|
33243
|
33243
33242-26010 Shaft, Gear Shift Fork, No.1[11.1983 - 08.1985] YN5#..4H |
33242-26010 |
US $12.38 |
||
|
33245
|
33245
33243-26010 Shaft, Gear Shift Fork, No.2[11.1983 - 10.1984] YN56 |
33243-26010 |
US $24.46 |
||
|
33245
|
33245
33243-35060 Shaft, 3Rd & 4Th Shift Fork[10.1984 - 08.1985] YN5#..4H |
33243-35060 |
US $32.03 |
||
|
33251
|
33251
33251-26010 Lever, Shift & Select[11.1983 - 08.1985] YN5#..4H |
33251-26010 |
US $34.94 |
||
|
33253
|
33253
33253-35060 Lever, Shift Outer, No.1[11.1983 - 08.1985] YN5#..4H |
33253-35060 |
US $33.05 |
||
|
33253A
|
33253A
33281-16020 Pin, Lever Lock (For Shift Outer Lever)[12.1984 - 08.1985] YN5#..4H |
33281-16020 |
from US $1.35 |
||
|
33253A
|
33253A
33281-30010 Pin, Lever Lock (For Shift Outer Lever)[11.1983 - 12.1984] YN5#..4H |
33281-30010 |
US $3.35 |
||
| replacement | |||||
|
33253A
|
33253A
33281-16020 Pin, Lever Lock (For Shift Outer Lever)[11.1983 - 12.1984] YN5#..4H |
33281-16020 |
from US $1.35 |
||
|
33257
|
33257
33257-35060 Lever, Select Outer[11.1983 - 08.1985] YN5#..4H |
33257-35060 |
US $32.47 |
||
|
33264
|
33264
33264-30010 Pin, Or Ball, Shift Inter Lock, No.1[11.1983 - 08.1985] YN5#..4H 外径＝６，長さ＝１６ |
33264-30010 |
US $3.35 |
||
|
33265
|
33265
33265-30010 Pin, Shift Inter Lock, No.2[11.1983 - 08.1985] YN5#..4H 長さ＝２８．８，外径＝６．０ |
33265-30010 |
US $3.35 |
||
|
33265
|
33265
90250-05020 Pin, Straight (For Shift & Select Lever Shaft)[11.1983 - 03.1989] LN5#,6#,YN5#,6#..MTM..(CBR,DSL,EFI) 長さ＝１１．１，外径＝４．８ |
90250-05020 |
US $1.49 |
||
|
33272
|
33272
33272-28010 Gasket, Shift Lever Shaft Housing[10.1984 - 08.1985] YN56..4H..LPG |
33272-28010 |
from US $2.91 |
||
|
33275
|
33275
33275-10010 Seat, Shift Detent Ball Spring, No.1[11.1983 - 08.1985] YN5#..4H |
33275-10010 |
US $2.62 |
||
|
33275A
|
33275A
90501-14090 Spring, Compression (For Shift Detent Ball Low Side)[10.1984 - 08.1985] YN56..4H 長さ＝１６．４ |
90501-14090 |
US $2.18 |
||
|
33275A
|
33275A
90501-14638 Spring, Compression (For Shift Detent Ball Low Side)[11.1983 - 10.1984] YN56 長さ＝１５．２ |
90501-14638 |
US $2.48 |
||
|
33275B
|
33275B
90360-10003 Ball(For Transmission Oil Pump Cover)[11.1983 - 03.1989] LN5#,6#,YN5#,6#..MTM |
90360-10003 |
from US $1.19 |
||
|
9011908333
|
9011908333
90119-08333 BOLT |
90119-08333 |
US $2.15 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
US $2.15 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.33 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
