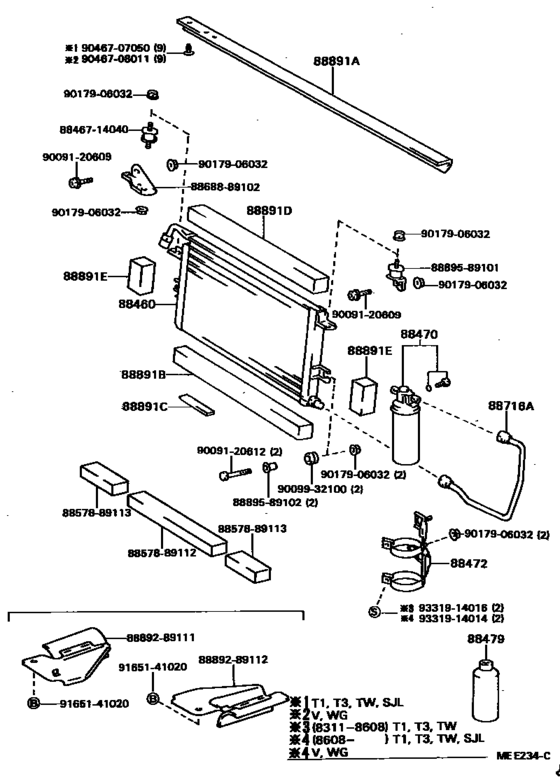

Heating & Air Conditioning - Cooler Piping ([11.1983 - ] (8311- )YN5#,6#) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1983 - 1985
- Sales region
- Japan
- Frame
- YN56
- grade
- DLX
- body
- T3
- ENGINE
- 2YJ
- TRANSMISSION
- MTM
- Model
- HILUX
- From
- 11.1983
- Engine
- 3YP
- To
- 08.1985
- Gear Shift Type
- 4H
- Vehicle Model
- Hilux
- Fuel Induction
- LPG
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-89109
Condenser Assy, Cooler
[11.1983 - 08.1988] LN5#,60,65,YN5#,60,65..SJL,T1,T3,TW |
88460-89109 |
— | ||
|
88470
|
88470
88470-12050 Receiver & Dryer Assy, Cooler[11.1983 - 08.1987] LN5#,6#,YN5#,6# |
88470-12050 |
US $91.73 |
||
| replacement | |||||
|
88470
|
88470
88470-14010
Receiver & Dryer Assy, Cooler
[11.1983 - 08.1987] LN5#,6#,YN5#,6# |
88470-14010 |
— | ||
|
88472
|
88472
88472-89109
Bracket, Receiver Tank, No.1
[11.1983 - 03.1989] LN5#,6#,YN5#,6# |
88472-89109 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[11.1983 - 03.1989] LN5#,6#,YN5#,6# ４００Ｇ |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[11.1983 - 03.1989] LN5#,6#,YN5#,6# ４００Ｇ |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[11.1983 - 03.1989] LN5#,6#,YN5#,6# ４００Ｇ |
90986-02005 |
— | ||
|
88716A
|
88716A
88716-89132
Pipe, Cooler Refrigerant Liquid, A
[11.1983 - 08.1988] LN5#,60,65,YN5#,60,65..SJL,T1,T3,TW |
88716-89132 |
— | ||
|
88891A
|
88891A
53381-89103
Seal, Hood To Radiator Support
[11.1983 - 03.1989] LN5#,6#,YN5#,6# |
53381-89103 |
— | ||
|
88891B
|
88891B
88578-89101
Packing B (For Cooler)
[11.1983 - 08.1986] LN5#,60,65,YN5#,60,65..T1,T3,TW |
88578-89101 |
— | ||
|
88891C
|
88891C
88578-89107
Packing C (For Cooler)
[11.1983 - 03.1989] LN5#,6#,YN5#,6# |
88578-89107 |
— | ||
|
88891D
|
88891D
88578-89101
Packing B (For Cooler)
[11.1983 - 03.1989] YN5#,6# |
88578-89101 |
— | ||
|
8846714040
|
8846714040
88467-14040 Cushion, Cooler Condenser, No.1 |
88467-14040 |
from US $2.06 |
||
|
8857889112
|
8857889112
88578-89112
Packing E (For Cooler)
|
88578-89112 |
— | ||
|
8857889113
|
8857889113
88578-89113
Paking, Cooler Air Duct
|
88578-89113 |
— | ||
|
8868889102
|
8868889102
88688-89102
Bracket, Cooler Diaphragm
|
88688-89102 |
— | ||
|
8889289111
|
8889289111
88892-89111
Bracket, Cooler Evaporator Mounting
|
88892-89111 |
— | ||
|
8889289112
|
8889289112
88892-89112
Bracket, Cooler Evaporator Mounting
|
88892-89112 |
— | ||
|
8889589101
|
8889589101
88895-89101
Holder, Fuse
|
88895-89101 |
— | ||
|
8889589102
|
8889589102
88895-89102 Bush |
88895-89102 |
US $1.67 |
||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9009120612
|
9009120612
90091-20612
New Genuine Part
|
90091-20612 |
— | ||
| replacement | |||||
|
9009120612
|
9009120612
90091-20642 BOLT WWASHER |
90091-20642 |
US $1.08 |
||
|
9009932100
|
9009932100
90099-32100
Cushion, Cooler Condenser, No.2
|
90099-32100 |
— | ||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046707050
|
9046707050
90467-07050
Clip, Step Plate Cover
|
90467-07050 |
— | ||
| replacement | |||||
|
9046707050
|
9046707050
90467-08008 Clip, Step Plate Cover |
90467-08008 |
from US $2.51 |
||
|
9046708011
|
9046708011
90467-08011 Clip(For Headlamp Cover Seal) |
90467-08011 |
from US $0.33 |
||
| replacements | |||||
|
9046708011
|
9046708011
90467-08011-TH CLIP |
90467-08011-TH |
US $0.31 |
||
|
9046708011
|
9046708011
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) |
90467-08011-83 |
US $3.60 |
||
|
9165141020
|
9165141020
91651-41020 BOLTWWASHER |
91651-41020 |
US $1.61 |
||
|
9331914014
|
9331914014
93319-14014 New Genuine Part |
93319-14014 |
US $2.91 |
||
|
9331914016
|
9331914016
93319-14016 New Genuine Part |
93319-14016 |
US $2.04 |
||
