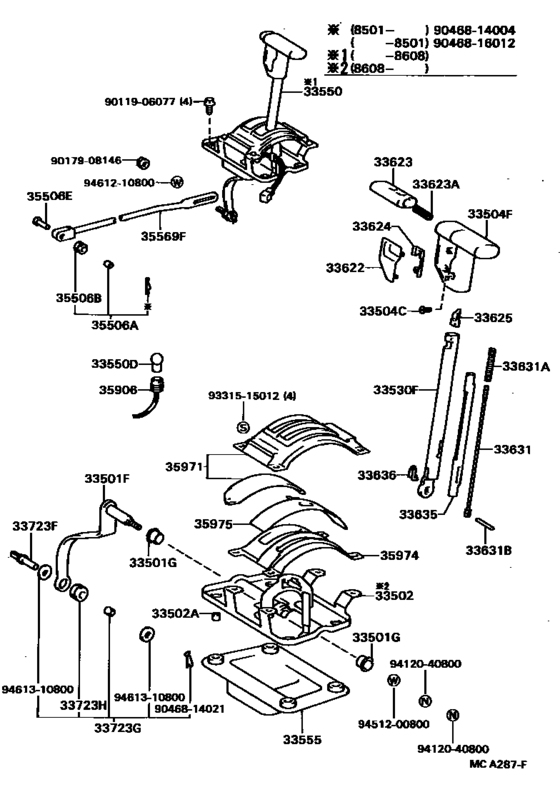

Shift Lever & Retainer ([08.1983 - ] (8308- )LN56,YN57..4FC) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1983 - 1987
- Sales region
- Europe
- Frame
- YN57
- grade
- SR5
- body
- T1
- ENGINE
- 3Y
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- CAB
- XTR
- Model
- HILUX
- From
- 09.1983
- Engine
- 3YC
- To
- 08.1987
- Gear Shift Type
- 4FC
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501F
|
33501F
33501-35170 Shaft Sub-Assy, Control (For Floor Shift)[08.1983 - 08.1988] LN56,YN57..4FC |
33501-35170 |
US $26.35 |
||
|
33501G
|
33501G
90385-16045 Bush (For Floor Shift Control Shaft)[08.1983 - 08.1988] LN56,YN57..4FC |
90385-16045 |
US $6.12 |
||
|
33502
|
33502
33502-35080 Plate Sub-Assy, Shift Lever[08.1986 - 08.1988] LN56,YN57..4FC |
33502-35080 |
US $40.33 |
||
|
33502A
|
33502A
90387-06065 Collar (For Floor Shift Setting)[08.1983 - 08.1989] LN56,YN57,63..4FC OD=8.8 |
90387-06065 |
US $3.23 |
||
|
33504C
|
33504C
90149-40004 Bolt Or Pin (For Shift Lever Knob Setting)[08.1983 - 12.1985] LN56,YN57..4FC |
90149-40004 |
US $1.49 |
||
|
33504C
|
33504C
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[12.1985 - 08.1986] LN56,YN57..4FC |
90159-40109 |
US $1.43 |
||
|
33504F
|
33504F
33542-32010-01 Knob Sub-Assy, Shift Lever[08.1983 - 08.1986] LN56,YN57..4FC BLACK |
33542-32010-01 |
US $34.07 |
||
|
33504F
|
33504F
33542-32010-15 Knob Sub-Assy, Shift Lever[08.1986 - 07.1994] LN56,YN57..4FC BEIGE,DARK BEIGE,TRIM4# |
33542-32010-15 |
US $34.07 |
||
| replacement | |||||
|
33504F
|
33504F
33542-32010-01 Knob Sub-Assy, Shift Lever[08.1986 - 07.1994] LN56,YN57..4FC BEIGE,DARK BEIGE,TRIM4# |
33542-32010-01 |
US $34.07 |
||
|
33504F
|
33504F
33542-32010-23 Knob Sub-Assy, Shift Lever[08.1986 - 01.1992] YN57..4FC..SR5 GRAY,MEDIUM GRAY,TRIM1# |
33542-32010-23 |
US $34.07 |
||
| replacement | |||||
|
33504F
|
33504F
33542-32010-01 Knob Sub-Assy, Shift Lever[08.1986 - 01.1992] YN57..4FC..SR5 GRAY,MEDIUM GRAY,TRIM1# |
33542-32010-01 |
US $34.07 |
||
|
33504F
|
33504F
33542-32010-24 Knob Sub-Assy, Shift Lever[08.1986 - 07.1994] LN56,YN57..4FC BLUE,BLUE,TRIM8# |
33542-32010-24 |
US $34.07 |
||
| replacement | |||||
|
33504F
|
33504F
33542-32010-01 Knob Sub-Assy, Shift Lever[08.1986 - 07.1994] LN56,YN57..4FC BLUE,BLUE,TRIM8# |
33542-32010-01 |
US $34.07 |
||
|
33530F
|
33530F
33503-35050 Lever Assy, Shift (For Floor Shift)[08.1983 - 07.1994] LN56,YN57..4FC |
33503-35050 |
US $68.43 |
||
|
33550
|
33550
33550-35110 Floor Shift Assy, Transmission[08.1983 - 08.1986] LN56,YN57..4FC |
33550-35110 |
US $362.54 |
||
|
33550D
|
33550D
99132-11034 Bulb, Position Indicator Lamp[08.1983 - 07.1994] LN56,YN57..4FC 12V 3.4W,12V 3.4W |
99132-11034 |
US $1.65 |
||
|
33555
|
33555
33555-35060 Boot, Shift Lever[08.1983 - 08.1988] LN56,YN57..4FC |
33555-35060 |
US $25.33 |
||
|
33622
|
33622
33622-32020-01 Cover, Shift Lever Knob, No.1[08.1983 - 08.1986] LN56,YN57..4FC BLACK |
33622-32020-01 |
US $9.90 |
||
|
33622
|
33622
33622-32020-15 Cover, Shift Lever Knob, No.1[08.1986 - 08.1988] LN56,YN57..4FC BEIGE,DARK BEIGE,TRIM4# |
33622-32020-15 |
US $9.90 |
||
| replacement | |||||
|
33622
|
33622
33622-32020-01 Cover, Shift Lever Knob, No.1[08.1986 - 08.1988] LN56,YN57..4FC BEIGE,DARK BEIGE,TRIM4# |
33622-32020-01 |
US $9.90 |
||
|
33622
|
33622
33622-32020-24 Cover, Shift Lever Knob, No.1[08.1986 - 08.1988] LN56,YN57..4FC BLUE,BLUE,TRIM8# |
33622-32020-24 |
US $9.90 |
||
| replacement | |||||
|
33622
|
33622
33622-32020-01 Cover, Shift Lever Knob, No.1[08.1986 - 08.1988] LN56,YN57..4FC BLUE,BLUE,TRIM8# |
33622-32020-01 |
US $9.90 |
||
|
33622
|
33622
33622-32020-33 Cover, Shift Lever Knob, No.1[08.1986 - 08.1988] YN57..4FC..SR5;YN57..4FC..GEN GRAY,GRAY,TRIM1# |
33622-32020-33 |
US $9.90 |
||
| replacement | |||||
|
33622
|
33622
33622-32020-01 Cover, Shift Lever Knob, No.1[08.1986 - 08.1988] YN57..4FC..SR5;YN57..4FC..GEN GRAY,GRAY,TRIM1# |
33622-32020-01 |
US $9.90 |
||
|
33623
|
33623
33623-32010-01 Button, Shift Lever Knob[08.1983 - 08.1986] LN56,YN57..4FC BLACK |
33623-32010-01 |
US $19.22 |
||
|
33623
|
33623
33623-32010-15 Button, Shift Lever Knob[08.1986 - 08.1988] LN56,YN57..4FC BEIGE,DARK BEIGE,TRIM4# |
33623-32010-15 |
US $19.22 |
||
| replacement | |||||
|
33623
|
33623
33623-32010-B0 Button, Shift Lever Knob[08.1986 - 08.1988] LN56,YN57..4FC BEIGE,DARK BEIGE,TRIM4# |
33623-32010-B0 |
US $19.22 |
||
|
33623
|
33623
33623-32010-23 Button, Shift Lever Knob[08.1986 - 08.1988] YN57..4FC..SR5;YN57..4FC..GEN GRAY,MEDIUM GRAY,TRIM1# |
33623-32010-23 |
US $19.22 |
||
| replacement | |||||
|
33623
|
33623
33623-32010-B0 Button, Shift Lever Knob[08.1986 - 08.1988] YN57..4FC..SR5;YN57..4FC..GEN GRAY,MEDIUM GRAY,TRIM1# |
33623-32010-B0 |
US $19.22 |
||
|
33623
|
33623
33623-32010-54 Button, Shift Lever Knob[08.1986 - 08.1988] LN56,YN57..4FC BLUE,BLUE,TRIM8# |
33623-32010-54 |
US $19.22 |
||
| replacement | |||||
|
33623
|
33623
33623-32010-B0 Button, Shift Lever Knob[08.1986 - 08.1988] LN56,YN57..4FC BLUE,BLUE,TRIM8# |
33623-32010-B0 |
US $19.22 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[08.1983 - 08.1988] LN56,YN57..4FC |
90501-07009 |
from US $4.49 |
||
|
33624
|
33624
33624-32010 Holder, Knob Cover[08.1983 - 08.1988] LN56,YN57..4FC |
33624-32010 |
US $3.35 |
||
|
33625
|
33625
33625-32010 Sleeve, Shift Lever Knob[08.1983 - 08.1988] LN56,YN57..4FC |
33625-32010 |
US $10.05 |
||
|
33631
|
33631
33631-35020 Rod, Detent[08.1983 - 08.1988] LN56,YN57..4FC |
33631-35020 |
US $11.36 |
||
|
33631A
|
33631A
90501-08017 Spring, Compression (For Shift Lever Knob Button)[08.1983 - 08.1988] LN56,YN57..4FC |
90501-08017 |
US $4.95 |
||
|
33631B
|
33631B
90256-04001 Pin, Slotted Spring (For Detent Rod)[08.1983 - 01.1985] LN56,YN57..4FC |
90256-04001 |
US $3.19 |
||
|
33631B
|
33631B
90256-04003 Pin, Slotted Spring (For Detent Rod)[01.1985 - 08.1988] LN56,YN57..4FC |
90256-04003 |
US $2.97 |
||
|
33635
|
33635
33635-35010 Guide, Wire (For Shift Lever)[08.1983 - 08.1988] LN56,YN57..4FC |
33635-35010 |
US $9.46 |
||
|
33636
|
33636
33636-35010 Protector, Wire[08.1983 - 08.1988] LN56,YN57..4FC |
33636-35010 |
US $2.87 |
||
|
33723F
|
33723F
33723-22010 Swivel, Connecting Rod (For Column Shift)[08.1983 - 03.1989] LN56,YN57,63..4FC |
33723-22010 |
from US $11.47 |
||
|
33723G
|
33723G
90999-99017 Bush (For Transmission Control Rod)[08.1983 - 08.1988] LN56,YN57..4FC |
90999-99017 |
from US $3.10 |
||
|
33723H
|
33723H
90480-17177 Grommet (For Transmission Control Rod)[08.1983 - 03.1989] LN56,YN57,63..4FC |
90480-17177 |
from US $2.07 |
||
|
35506A
|
35506A
90999-99017 Bush (For Transmission Control Rod)[08.1983 - 08.1988] LN56,YN57..4FC |
90999-99017 |
from US $3.10 |
||
|
35506B
|
35506B
90480-17177 Grommet (For Transmission Control Rod)[08.1983 - 03.1989] LN56,YN57,63..4FC |
90480-17177 |
from US $2.07 |
||
|
35506E
|
35506E
90240-08054 Pin, W/hole (For Transmission Control Rod)[01.1985 - 03.1989] LN56,YN57,63..4FC |
90240-08054 |
from US $1.79 |
||
|
35506E
|
35506E
90240-08120 Pin, W/hole (For Transmission Control Rod)[08.1983 - 01.1985] LN56,YN57..4FC |
90240-08120 |
US $1.93 |
||
|
35569F
|
35569F
33702-35050 Rod, Transmission Control, 1St (For Floor Shift)[08.1983 - 08.1988] LN56,YN57..4FC |
33702-35050 |
US $17.76 |
||
|
35906
|
35906
35906-35020 Wire Sub-Assy, Indicator Lamp[08.1983 - 08.1986] LN56,YN57..4FC |
35906-35020 |
US $20.82 |
||
|
35906
|
35906
35906-35021 Wire Sub-Assy, Indicator Lamp[08.1986 - 08.1988] LN56,YN57..4FC |
35906-35021 |
US $20.82 |
||
|
35971
|
35971
35907-35030 Support, Position Indicator[08.1983 - 08.1988] LN56,YN57..4FC |
35907-35030 |
US $33.78 |
||
|
35974
|
35974
35974-22020 Housing, Position Indicator, Lower[08.1983 - 08.1988] LN56,YN57..4FC |
35974-22020 |
US $28.25 |
||
|
35975
|
35975
35975-35010 Cover, Slide (For Position Indicator)[08.1983 - 08.1988] LN56,YN57..4FC |
35975-35010 |
US $13.40 |
||
|
9011906077
|
9011906077
90119-06077 Bolt |
90119-06077 |
US $1.43 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.66 |
||
|
9046814021
|
9046814021
90468-14021 New Genuine Part |
90468-14021 |
US $1.79 |
||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.90 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.76 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.84 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
