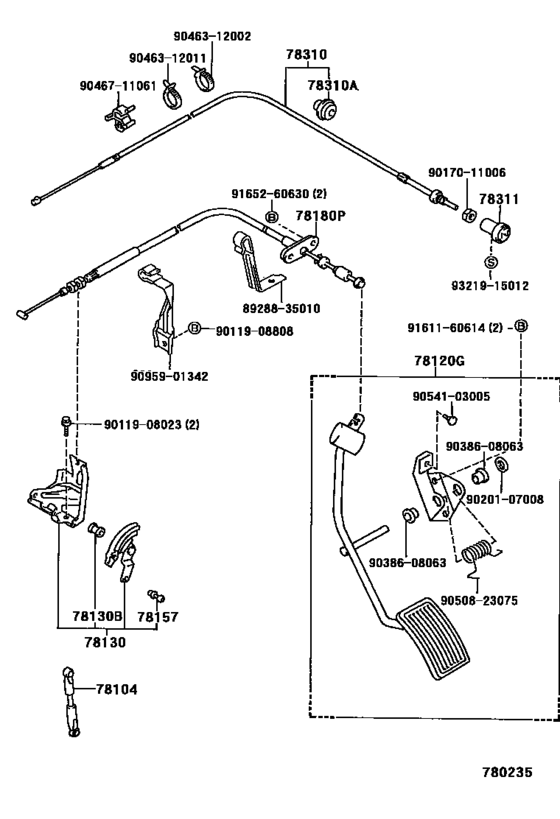

Accelerator Link ([10.1989 - ] (8910- )YN80,85,87,90..TH) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1989 - 1993
- Sales region
- U.S.A.
- Frame
- YN80
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- TH
- Model
- HILUX 2WD
- From
- 10.1989
- To
- 03.1993
- Body
- RCB
- Gear Shift Type
- 4F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78104
|
78104
78104-89106 Rod Sub-Assy, Accelerator Connecting, No.2[08.1988 - 09.1999] YN8#,9# |
78104-89106 |
from US $8.04 |
||
|
78120G
|
78120G
78120-89145 Rod Assy, Accelerator Pedal[08.1988 - 09.1999] YN80,85,87,92..RHD |
78120-89145 |
US $49.94 |
||
|
78130
|
78130
78130-35030 Bellcrank Assy, Accelerator[08.1988 - 01.1994] YN80,85,87,92..GEN,TH |
78130-35030 |
from US $67.53 |
||
|
78130B
|
78130B
90386-08003
Bush, Accelerator Bellcrank
[08.1988 - 08.1991] YN8#,92 |
90386-08003 |
— | ||
|
78157
|
78157
78157-10010 Ball, Accelerator Joint[08.1988 - 08.1991] YN8#,92 |
78157-10010 |
US $1.41 |
||
|
78180P
|
78180P
78180-89155
Cable Assy, Accelerator Control
[08.1988 - 09.1999] YN80,85,87,92..RHD |
78180-89155 |
— | ||
|
78310
|
78310
78310-89115 Cable Assy, ChokeCHOKE [08.1988 - 01.1994] YN80,85,87,92..RHD..(GEN,TH) |
78310-89115 |
US $31.89 |
||
|
78310A
|
78310A
90480-21005 Grommet, Choke Cable[08.1988 - 01.1994] YN80,85,87,92..GEN,TH |
90480-21005 |
US $3.20 |
||
|
78311
|
78311
78311-89103 Knob, Choke Control CableCHOKE ROD [08.1988 - 01.1994] YN80,85,87,92..GEN,TH |
78311-89103 |
US $8.59 |
||
|
8928835010
|
8928835010
89288-35010
New Genuine Part
|
89288-35010 |
— | ||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $1.31 |
||
|
9011908808
|
9011908808
90119-08808 New Genuine Part |
90119-08808 |
US $1.09 |
||
|
9017011006
|
9017011006
90170-11006 Nut, Throttle |
90170-11006 |
US $0.96 |
||
|
9020107008
|
9020107008
90201-07008 New Genuine Part |
90201-07008 |
US $0.70 |
||
|
9038608063
|
9038608063
90386-08063
Bush (For Accelerator Pedal Rod)
|
90386-08063 |
— | ||
|
9046312002
|
9046312002
90463-12002 Clamp, Choke Cable |
90463-12002 |
US $1.89 |
||
|
9046312011
|
9046312011
90463-12011 New Genuine Part |
90463-12011 |
US $4.19 |
||
|
9046711061
|
9046711061
90467-11061 CLIP |
90467-11061 |
US $0.83 |
||
|
9050823075
|
9050823075
90508-23075 Spring (For Accelerator Pedal Rod) |
90508-23075 |
US $3.49 |
||
|
9054103005
|
9054103005
90541-03005 Cushion, Glove Compartment Door Check |
90541-03005 |
US $2.20 |
||
|
9095901342
|
9095901342
90959-01342
Clamp, Accelerator Control Cable
|
90959-01342 |
— | ||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.38 |
||
|
9165260630
|
9165260630
91652-60630 New Genuine Part |
91652-60630 |
US $0.87 |
||
|
9321915012
|
9321915012
93219-15012 New Genuine Part |
93219-15012 |
US $2.06 |
||
