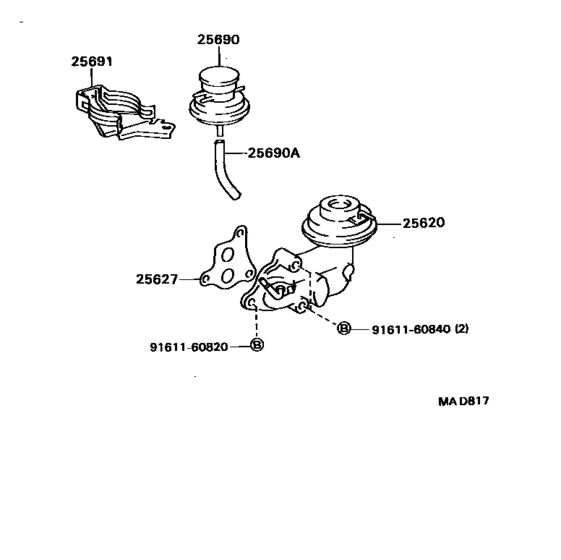

Exhaust Gas Recirculation System ([01.1994 - 04.1995] (9401-9504)2Y..TH) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1993 - 1995
- Sales region
- General
- Frame
- YN80
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- TH
- Model
- HILUX 2WD
- From
- 03.1993
- To
- 04.1995
- Body
- RCB
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (2WD)
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Body
- T1
- Building Condition
- CBU
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25620
|
25620
25620-73130 Valve Assy, EgrEGR [01.1994 - 04.1995] 2Y..YN80,85,90..TH |
25620-73130 |
US $263.54 |
||
|
25627
|
25627
25627-71011 Gasket, Egr Valve[01.1994 - 08.1997] 2Y..YN80,85,90..RHD..5F |
25627-71011 |
US $3.49 |
||
|
25690
|
25690
25870-71041 Modulator Assy, Egr Vacuum[01.1994 - 08.1997] 2Y..YN80,85,90..RHD..5F |
25870-71041 |
US $101.92 |
||
|
25690A
|
25690A
90445-11017 Hose(For Egr Vacuum Modulator)[01.1994 - 08.1997] 2Y..YN80,85,90..RHD..5F |
90445-11017 |
US $3.49 |
||
|
25691
|
25691
25691-73020 Bracket, Egr Vacuum Modulator[01.1994 - 08.1997] 2Y..YN80,85,90..RHD..5F |
25691-73020 |
US $8.59 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
US $2.33 |
||
