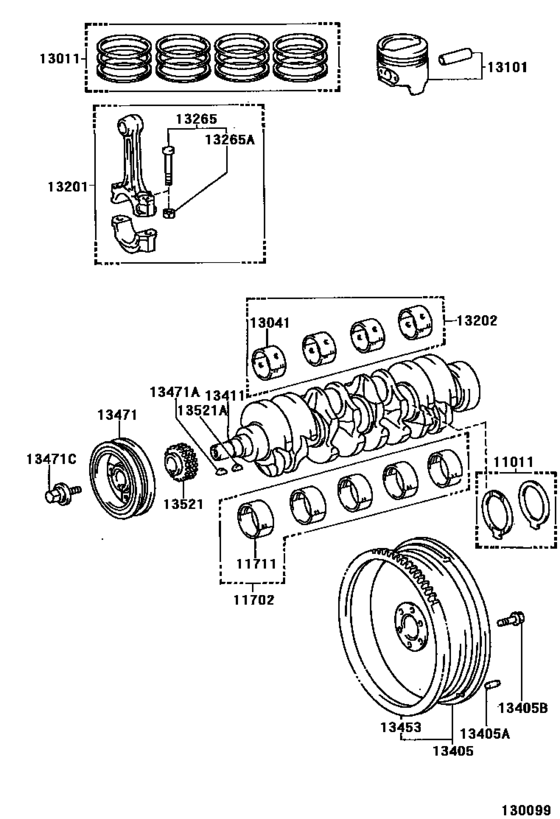

Crankshaft & Piston ([01.1989 - 10.1994] (8901-9410)2Y..VWP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1989 - 1994
- Sales region
- Europe
- Frame
- YN85
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 01.1989
- To
- 10.1994
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[01.1989 - 10.1994] 2Y..YN85..VWP STD |
11011-25010 |
from US $22.85 |
||
|
11702
|
11702
11704-71020 Bearing Set, Crankshaft (0.25)[01.1989 - 10.1994] 2Y..YN85..VWP U/S 0.25 |
11704-71020 |
US $206.17 |
||
|
11711
|
11711
11701-71020-01 Bearing, Crankshaft[01.1989 - 10.1994] 2Y..YN85..VWP MARK 1 |
11701-71020-01 |
from US $22.89 |
||
|
11711
|
11711
11701-71020-02 Bearing, Crankshaft[01.1989 - 10.1994] 2Y..YN85..VWP MARK 2 |
11701-71020-02 |
from US $22.89 |
||
|
11711
|
11711
11701-71020-03 Bearing, Crankshaft[01.1989 - 10.1994] 2Y..YN85..VWP MARK 3 |
11701-71020-03 |
US $45.43 |
||
|
13011
|
13011
13011-71031 Ring Set, Piston[01.1989 - 10.1990] 2Y..YN85..VWP STD |
13011-71031 |
US $219.86 |
||
| replacement | |||||
|
13011
|
13011
13011-71033 Ring Set, PistonPISTON [01.1989 - 10.1990] 2Y..YN85..VWP STD |
13011-71033 |
US $142.66 |
||
|
13011
|
13011
13011-71032
Ring Set, Piston
[10.1990 - 12.1992] 2Y..YN85..VWP STD |
13011-71032 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-71033 Ring Set, PistonPISTON [10.1990 - 12.1992] 2Y..YN85..VWP STD |
13011-71033 |
US $142.66 |
||
|
13011
|
13011
13011-71033 Ring Set, PistonPISTON [12.1992 - 10.1994] 2Y..YN85..VWP STD |
13011-71033 |
US $142.66 |
||
|
13011
|
13011
13013-71031 Ring Set, Piston[01.1989 - 10.1990] 2Y..YN85..VWP O/S 0.50 |
13013-71031 |
US $219.86 |
||
| replacement | |||||
|
13011
|
13011
13013-71033 Ring Set, PistonPISTON [01.1989 - 10.1990] 2Y..YN85..VWP O/S 0.50 |
13013-71033 |
from US $159.41 |
||
|
13011
|
13011
13013-71032 Ring Set, PistonPISTON [10.1990 - 12.1992] 2Y..YN85..VWP O/S 0.50 |
13013-71032 |
US $216.94 |
||
| replacement | |||||
|
13011
|
13011
13013-71033 Ring Set, PistonPISTON [10.1990 - 12.1992] 2Y..YN85..VWP O/S 0.50 |
13013-71033 |
from US $159.41 |
||
|
13011
|
13011
13013-71033 Ring Set, PistonPISTON [12.1992 - 10.1994] 2Y..YN85..VWP O/S 0.50 |
13013-71033 |
from US $159.41 |
||
|
13011
|
13011
13014-71031 Ring Set, Piston[01.1989 - 10.1990] 2Y..YN85..VWP O/S 0.75 |
13014-71031 |
US $219.86 |
||
| replacement | |||||
|
13011
|
13011
13014-71033 Ring Set, PistonPISTON [01.1989 - 10.1990] 2Y..YN85..VWP O/S 0.75 |
13014-71033 |
US $218.40 |
||
|
13011
|
13011
13014-71032 Ring Set, PistonPISTON [10.1990 - 12.1992] 2Y..YN85..VWP O/S 0.75 |
13014-71032 |
US $216.94 |
||
| replacement | |||||
|
13011
|
13011
13014-71033 Ring Set, PistonPISTON [10.1990 - 12.1992] 2Y..YN85..VWP O/S 0.75 |
13014-71033 |
US $218.40 |
||
|
13011
|
13011
13014-71033 Ring Set, PistonPISTON [12.1992 - 10.1994] 2Y..YN85..VWP O/S 0.75 |
13014-71033 |
US $218.40 |
||
|
13011
|
13011
13015-71031 Ring Set, Piston[01.1989 - 10.1990] 2Y..YN85..VWP O/S 1.00 |
13015-71031 |
US $219.86 |
||
| replacement | |||||
|
13011
|
13011
13015-71033 Ring Set, PistonPISTON [01.1989 - 10.1990] 2Y..YN85..VWP O/S 1.00 |
13015-71033 |
from US $118.25 |
||
|
13011
|
13011
13015-71032
Ring Set, Piston
[10.1990 - 12.1992] 2Y..YN85..VWP O/S 1.00 |
13015-71032 |
— | ||
| replacement | |||||
|
13011
|
13011
13015-71033 Ring Set, PistonPISTON [10.1990 - 12.1992] 2Y..YN85..VWP O/S 1.00 |
13015-71033 |
from US $118.25 |
||
|
13011
|
13011
13015-71033 Ring Set, PistonPISTON [12.1992 - 10.1994] 2Y..YN85..VWP O/S 1.00 |
13015-71033 |
from US $118.25 |
||
|
13041
|
13041
13041-71011-06
Bearing, Connecting Rod
[02.1989 - 10.1994] 2Y..YN85..VWP MARK 6 |
13041-71011-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-06 Bearing, Connecting Rod[02.1989 - 10.1994] 2Y..YN85..VWP MARK 6 |
13041-73010-06 |
from US $16.95 |
||
|
13041
|
13041
13041-71011-07
Bearing, Connecting Rod
[02.1989 - 10.1994] 2Y..YN85..VWP MARK 7 |
13041-71011-07 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-07 Bearing, Connecting Rod[02.1989 - 10.1994] 2Y..YN85..VWP MARK 7 |
13041-73010-07 |
US $34.42 |
||
|
13041
|
13041
13041-71011-08
Bearing, Connecting Rod
[02.1989 - 10.1994] 2Y..YN85..VWP MARK 8 |
13041-71011-08 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-08 Bearing, Connecting Rod[02.1989 - 10.1994] 2Y..YN85..VWP MARK 8 |
13041-73010-08 |
US $35.38 |
||
|
13101
|
13101
13101-72010-01 Piston Sub-Assy, W/pin[01.1989 - 10.1994] 2Y..YN85..VWP STD,MARK1 |
13101-72010-01 |
from US $63.96 |
||
|
13101
|
13101
13101-72010-02 Piston Sub-Assy, W/pin[01.1989 - 10.1994] 2Y..YN85..VWP STD,MARK2 |
13101-72010-02 |
from US $17.06 |
||
|
13101
|
13101
13101-72010-03
Piston Sub-Assy, W/pin
[01.1989 - 10.1994] 2Y..YN85..VWP STD,MARK3 |
13101-72010-03 |
— | ||
|
13101
|
13101
13103-72010 Piston Sub-Assy, W/pin[01.1989 - 10.1994] 2Y..YN85..VWP O/S 0.50 |
13103-72010 |
US $94.64 |
||
|
13101
|
13101
13104-72010 Piston Sub-Assy, W/pin[01.1989 - 10.1994] 2Y..YN85..VWP O/S 0.75 |
13104-72010 |
US $94.64 |
||
|
13101
|
13101
13105-72010 Piston Sub-Assy, W/pin[01.1989 - 10.1994] 2Y..YN85..VWP O/S 1.00 |
13105-72010 |
US $94.64 |
||
|
13201
|
13201
13201-71011
Rod Sub-Assy, Connecting
[01.1989 - 10.1994] 2Y..YN85..VWP |
13201-71011 |
— | ||
|
13202
|
13202
13204-71011
Bearing Set, Connecting Rod
[01.1989 - 10.1994] 2Y..YN85..VWP U/S 0.25 |
13204-71011 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-73010 Bearing Set, Connecting Rod (0.25)[01.1989 - 10.1994] 2Y..YN85..VWP U/S 0.25 |
13204-73010 |
US $160.74 |
||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[01.1989 - 10.1994] 2Y..YN85..VWP |
13265-29025 |
US $13.62 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[01.1989 - 10.1994] 2Y..YN85..VWP |
90170-09001 |
US $3.05 |
||
|
13405
|
13405
13405-71010
Flywheel Sub-Assy
[02.1989 - 03.1989] 2Y..YN85..VWP |
13405-71010 |
— | ||
| replacement | |||||
|
13405
|
13405
13405-71011 Flywheel Sub-Assy[02.1989 - 03.1989] 2Y..YN85..VWP |
13405-71011 |
from US $325.34 |
||
|
13405
|
13405
13405-71011 Flywheel Sub-Assy[03.1989 - 10.1994] 2Y..YN85..VWP |
13405-71011 |
from US $325.34 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[01.1989 - 10.1994] 2Y..YN85..VWP L=23,OD=8 |
90250-08054 |
from US $0.98 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[01.1989 - 10.1994] 2Y..YN85..VWP |
90105-10042 |
from US $1.29 |
||
|
13411
|
13411
13411-72010
Crankshaft
[01.1989 - 10.1994] 2Y..YN85..VWP |
13411-72010 |
— | ||
| replacement | |||||
|
13411
|
13411
13411-72900 Crankshaft[01.1989 - 10.1994] 2Y..YN85..VWP |
13411-72900 |
from US $814.40 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[01.1989 - 10.1994] 2Y..YN85..VWP |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13408-71010 Pulley, Crankshaft[01.1989 - 10.1994] 2Y..YN85..VWP |
13408-71010 |
US $176.47 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[09.1992 - 10.1994] 2Y..YN85..VWP |
90280-05005 |
from US $0.94 |
||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[01.1989 - 09.1992] 2Y..YN85..VWP |
90280-05010 |
from US $1.74 |
||
|
13471C
|
13471C
90105-14069 Bolt(For Crankshaft Pulley Set)[01.1989 - 10.1994] 2Y..YN85..VWP |
90105-14069 |
US $14 |
||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[01.1989 - 10.1994] 2Y..YN85..VWP |
13521-33010 |
from US $35.80 |
||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[09.1992 - 10.1994] 2Y..YN85..VWP |
90280-05005 |
from US $0.94 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[01.1989 - 09.1992] 2Y..YN85..VWP |
90280-05010 |
from US $1.74 |
||
