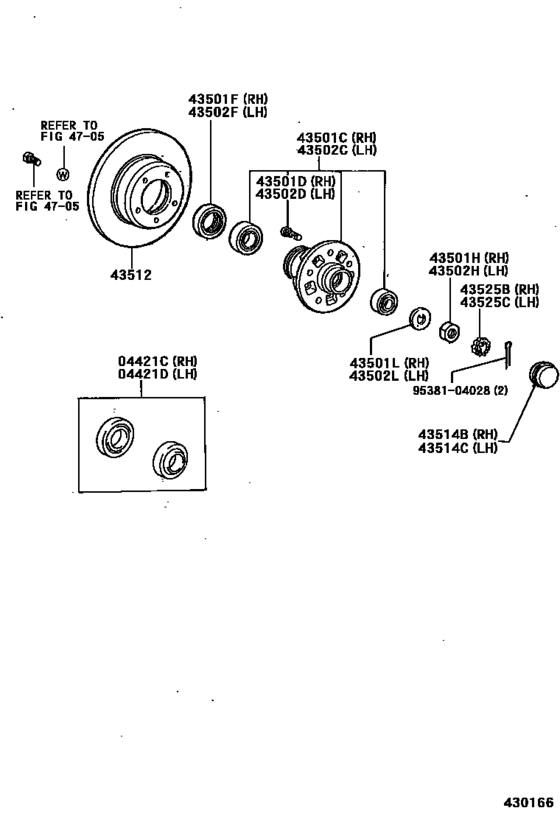

Front Axle Hub ([01.1989 - ] (8901- )VWP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1989 - 1994
- Sales region
- Europe
- Frame
- YN85
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 01.1989
- To
- 10.1994
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04421C
|
04421C
04421-35010 Bearing Kit, Front Axle Shaft, Rh[01.1989 - 10.1991] LN85,YN85..VWP |
04421-35010 |
US $71.05 |
||
|
04421C
|
04421C
04421-35020 Bearing Kit, Front Axle Shaft, Rh[10.1991 - 02.1997] LN85,YN85..VWP |
04421-35020 |
from US $81.82 |
||
|
04421D
|
04421D
04421-35010 Bearing Kit, Front Axle Shaft, Rh[01.1989 - 10.1991] LN85,YN85..VWP |
04421-35010 |
US $71.05 |
||
|
04421D
|
04421D
04421-35020 Bearing Kit, Front Axle Shaft, Rh[10.1991 - 02.1997] LN85,YN85..VWP |
04421-35020 |
from US $81.82 |
||
|
43501C
|
43501C
43502-39015 Hub Sub-Assy, Front Axle, Rh[10.1991 - 02.1997] LN85,YN85..VWP |
43502-39015 |
US $202.38 |
||
| replacement | |||||
|
43501C
|
43501C
43502-39105 Hub Sub-Assy, Front Axle, Rh[10.1991 - 02.1997] LN85,YN85..VWP |
43502-39105 |
US $203.84 |
||
|
43501C
|
43501C
43502-39025 Hub Sub-Assy, Front Axle, RhFRONT AXLE, RH [01.1989 - 10.1991] LN85,YN85..VWP |
43502-39025 |
US $126.67 |
||
| replacement | |||||
|
43501C
|
43501C
43502-39105 Hub Sub-Assy, Front Axle, Rh[01.1989 - 10.1991] LN85,YN85..VWP |
43502-39105 |
US $203.84 |
||
|
43501D
|
43501D
90942-02047 Bolt, Hub[01.1989 - 02.1997] LN85,YN85..VWP |
90942-02047 |
from US $3.49 |
||
|
43501F
|
43501F
90311-50005 Seal, Oil (For Front Axle Hub)[01.1989 - 02.1997] LN85,YN85..VWP |
90311-50005 |
from US $9.68 |
||
|
43501H
|
43501H
90170-19185 Nut (For Axle Shaft)[01.1989 - 02.1997] LN85,YN85..VWP |
90170-19185 |
from US $2.44 |
||
|
43501L
|
43501L
90214-20007 Washer, Claw (For Front Axle Hub Rh)[01.1989 - 02.1997] LN85,YN85..VWP |
90214-20007 |
from US $1.13 |
||
|
43502C
|
43502C
43502-39015 Hub Sub-Assy, Front Axle, Rh[10.1991 - 02.1997] LN85,YN85..VWP |
43502-39015 |
US $202.38 |
||
| replacement | |||||
|
43502C
|
43502C
43502-39105 Hub Sub-Assy, Front Axle, Rh[10.1991 - 02.1997] LN85,YN85..VWP |
43502-39105 |
US $203.84 |
||
|
43502C
|
43502C
43502-39025 Hub Sub-Assy, Front Axle, RhFRONT AXLE, RH [01.1989 - 10.1991] LN85,YN85..VWP |
43502-39025 |
US $126.67 |
||
| replacement | |||||
|
43502C
|
43502C
43502-39105 Hub Sub-Assy, Front Axle, Rh[01.1989 - 10.1991] LN85,YN85..VWP |
43502-39105 |
US $203.84 |
||
|
43502D
|
43502D
90942-02047 Bolt, Hub[01.1989 - 02.1997] LN85,YN85..VWP |
90942-02047 |
from US $3.49 |
||
|
43502F
|
43502F
90311-50005 Seal, Oil (For Front Axle Hub)[01.1989 - 02.1997] LN85,YN85..VWP |
90311-50005 |
from US $9.68 |
||
|
43502H
|
43502H
90170-19185 Nut (For Axle Shaft)[01.1989 - 02.1997] LN85,YN85..VWP |
90170-19185 |
from US $2.44 |
||
|
43502L
|
43502L
90214-20007 Washer, Claw (For Front Axle Hub Rh)[01.1989 - 02.1997] LN85,YN85..VWP |
90214-20007 |
from US $1.13 |
||
|
43512
|
43512
43512-35180 Disc, Front[01.1989 - 02.1997] LN85,YN85..VWP |
43512-35180 |
from US $179.20 |
||
|
43514B
|
43514B
43514-35010 Cap, Front Hub Grease[01.1989 - 02.1997] LN85,YN85..VWP |
43514-35010 |
from US $8.62 |
||
|
43514C
|
43514C
43514-35010 Cap, Front Hub Grease[01.1989 - 02.1997] LN85,YN85..VWP |
43514-35010 |
from US $8.62 |
||
|
43525B
|
43525B
43525-22010 Cap, Front Wheel Adjusting Lock[01.1989 - 02.1997] LN85,YN85..VWP |
43525-22010 |
from US $2.40 |
||
|
43525C
|
43525C
43525-22010 Cap, Front Wheel Adjusting Lock[01.1989 - 02.1997] LN85,YN85..VWP |
43525-22010 |
from US $2.40 |
||
|
9538104028
|
9538104028
95381-04028 PIN |
95381-04028 |
US $2.15 |
||
