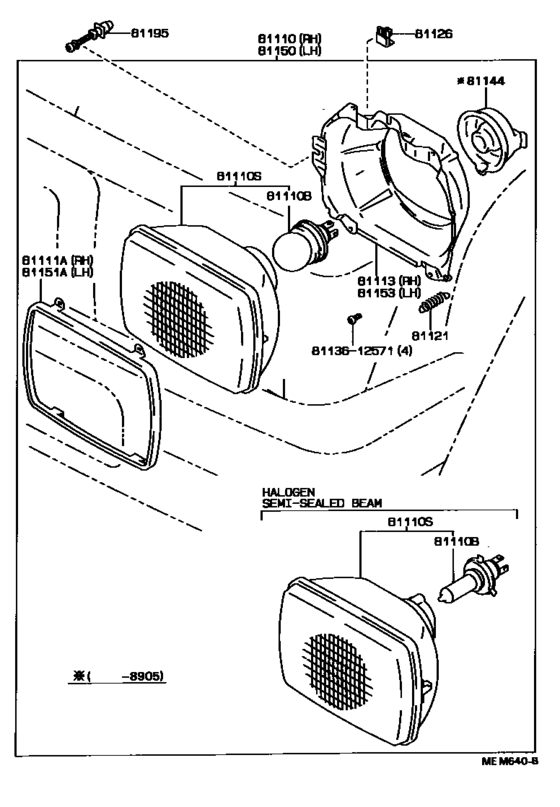

Headlamp ([01.1989 - ] (8901- )VWP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1989 - 1994
- Sales region
- Europe
- Frame
- YN85
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 01.1989
- To
- 10.1994
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-04030
Headlamp Assy, Rh
[01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *HWS HEADLAMP |
81110-04030 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-04031
Headlamp Assy, Rh
[01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *HWS HEADLAMP |
81110-04031 |
— | ||
|
81110
|
81110
81110-04040
Headlamp Assy, Rh
[01.1989 - 11.1989] LN85,YN85..VWP..LHD *FRG & *HWS HEADLAMP |
81110-04040 |
— | ||
|
81110
|
81110
81110-04041
Headlamp Assy, Rh
[11.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *FRG & *HWS HEADLAMP |
81110-04041 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-04031
Headlamp Assy, Rh
[11.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *FRG & *HWS HEADLAMP |
81110-04031 |
— | ||
|
81110
|
81110
81110-04050
Headlamp Assy, Rh
[01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU FRANCE & POSSESSIONS SPEC & *HYS HEADLAMP |
81110-04050 |
— | ||
|
81110
|
81110
81110-89153
Headlamp Assy, Rh
[01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU |
81110-89153 |
— | ||
|
81110B
|
81110B
90080-81021
Bulb(For Headlamp, No.1)
[01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU 12V 60/55W,*HAL *WH |
90080-81021 |
— | ||
|
81110B
|
81110B
90080-81023
Bulb(For Headlamp, No.1)
[01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU 12V 60/55W,*HAL *YE,FRANCE & POSSESSIONS SPEC & *HYS HEADLAMP |
90080-81023 |
— | ||
|
81110B
|
81110B
90981-13013 Bulb(For Headlamp, No.1)NO.1) [01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU 12V 45/40W,WHITE |
90981-13013 |
US $21.84 |
||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[01.1989 - 10.1991] LN85,YN85..VWP 12V 60/55W,*HAL *WH,KOITO |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [01.1989 - 10.1991] LN85,YN85..VWP 12V 60/55W,*HAL *WH,KOITO |
90981-13058 |
from US $33.60 |
||
|
81110B
|
81110B
90981-13016
Bulb(For Headlamp, No.1)
[01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU 12V 60/55W,*HAL *YE,FRANCE & POSSESSIONS SPEC & *HYS HEADLAMP,KOITO |
90981-13016 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13H01 Bulb(For Headlamp, No.1)[01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU 12V 60/55W,*HAL *YE,FRANCE & POSSESSIONS SPEC & *HYS HEADLAMP,KOITO |
90981-13H01 |
from US $112.53 |
||
|
81110S
|
81110S
90080-81019
Sealed Beam Unit, No.1
[01.1989 - 05.1989] LN85,YN85..VWP 12V 60/55W,*HWS |
90080-81019 |
— | ||
| replacement | |||||
|
81110S
|
81110S
90080-81024
Sealed Beam Unit, No.1
[01.1989 - 05.1989] LN85,YN85..VWP 12V 60/55W,*HWS |
90080-81024 |
— | ||
|
81110S
|
81110S
90080-81020
Sealed Beam Unit, No.1
[01.1989 - 05.1989] LN85,YN85..VWP 12V 60/55W,*HYS,FRANCE & POSSESSIONS SPEC & *HYS HEADLAMP |
90080-81020 |
— | ||
| replacement | |||||
|
81110S
|
81110S
90080-81025
Sealed Beam Unit, No.1
[01.1989 - 05.1989] LN85,YN85..VWP 12V 60/55W,*HYS,FRANCE & POSSESSIONS SPEC & *HYS HEADLAMP |
90080-81025 |
— | ||
|
81110S
|
81110S
90080-81024
Sealed Beam Unit, No.1
[05.1989 - 10.1991] LN85,YN85..VWP..LHD 12V 60/55W,*HWS |
90080-81024 |
— | ||
|
81110S
|
81110S
90080-81025
Sealed Beam Unit, No.1
[05.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU 12V 60/55W,*HYS,FRANCE & POSSESSIONS SPEC & *HYS HEADLAMP |
90080-81025 |
— | ||
|
81110S
|
81110S
90981-04006 Sealed Beam Unit, No.1NO.1 [01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU 12V 45/40W,*WSB |
90981-04006 |
US $160.16 |
||
|
81110S
|
81110S
90981-04008 Sealed Beam Unit, No.1NO.1 [01.1989 - 10.1991] LN85,YN85..VWP..LHD 12V 60/55W,*HWS,KOITO |
90981-04008 |
US $205.30 |
||
|
81110S
|
81110S
90981-04009 Sealed Beam Unit, No.1NO.1 [01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU 12V 60/55W,*HYS,FRANCE & POSSESSIONS SPEC & *HYS HEADLAMP,KOITO |
90981-04009 |
US $190.74 |
||
|
81111A
|
81111A
81111-16020 Ring, Sealed Beam Retaining[01.1989 - 06.1991] LN85,YN85..VWP..CBU; LN85,YN85..VWP..LHD..CBU FRANCE & POSSESSIONS SPEC & *HYS HEADLAMP |
81111-16020 |
from US $21.61 |
||
|
81111A
|
81111A
81111-89161 Ring, Sealed Beam Retaining, No.1 RhSEALED BEAM RETAINING, NO.1 RH [01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *FRG & *HWS HEADLAMP |
81111-89161 |
US $19.95 |
||
|
81113
|
81113
81113-89149 Ring, Sealed Beam Mounting, No.1 Rh[01.1989 - 06.1991] LN85,YN85..VWP..CBU |
81113-89149 |
from US $17.81 |
||
|
81113
|
81113
81113-89161 Ring, Sealed Beam Mounting, No.1 RhSEALED BEAM MOUNTING, NO.1 RH [01.1989 - 11.1989] LN85,YN85..VWP..LHD *FRG & *HWS HEADLAMP |
81113-89161 |
US $14.71 |
||
|
81113
|
81113
81113-89164 Ring, Sealed Beam Mounting, No.1 RhSEALED BEAM MOUNTING, NO.1 RH [11.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *FRG & *HWS HEADLAMP |
81113-89164 |
US $14.41 |
||
|
81121
|
81121
81121-14670 Spring, Headlamp Tension[01.1989 - 02.1997] LN85,YN85..VWP |
81121-14670 |
US $5.38 |
||
|
81126
|
81126
81124-89101 Plate, Headlamp[01.1989 - 02.1997] LN85,YN85..VWP |
81124-89101 |
US $3.58 |
||
|
81144
|
81144
81141-35020
Cover, Headlamp, No.1
[04.1989 - 05.1989] LN85,YN85..VWP |
81141-35020 |
— | ||
|
81150
|
81150
81150-04030
Headlamp Assy, Lh
[01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *HWS HEADLAMP |
81150-04030 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-04031
Headlamp Assy, Lh
[01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *HWS HEADLAMP |
81150-04031 |
— | ||
|
81150
|
81150
81150-04040
Headlamp Assy, Lh
[01.1989 - 11.1989] LN85,YN85..VWP..LHD *FRG & *HWS HEADLAMP |
81150-04040 |
— | ||
|
81150
|
81150
81150-04041
Headlamp Assy, Lh
[11.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *FRG & *HWS HEADLAMP |
81150-04041 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-04031
Headlamp Assy, Lh
[11.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *FRG & *HWS HEADLAMP |
81150-04031 |
— | ||
|
81150
|
81150
81150-04050
Headlamp Assy, Lh
[01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *HYS HEADLAMP |
81150-04050 |
— | ||
|
81150
|
81150
81150-89153
Headlamp Assy, Lh
[01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU |
81150-89153 |
— | ||
|
81151A
|
81151A
81111-16020 Ring, Sealed Beam Retaining[01.1989 - 06.1991] LN85,YN85..VWP..CBU; LN85,YN85..VWP..LHD..CBU FRANCE & POSSESSIONS SPEC & *HYS HEADLAMP |
81111-16020 |
from US $21.61 |
||
|
81151A
|
81151A
81111-89161 Ring, Sealed Beam Retaining, No.1 RhSEALED BEAM RETAINING, NO.1 RH [01.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *FRG & *HWS HEADLAMP |
81111-89161 |
US $19.95 |
||
|
81153
|
81153
81153-89149 Ring, Sealed Beam Mounting, No.1 Lh[01.1989 - 06.1991] LN85,YN85..VWP..CBU; LN85,YN85..VWP..LHD..CBU FRANCE & POSSESSIONS SPEC & *HYS HEADLAMP |
81153-89149 |
from US $17.81 |
||
|
81153
|
81153
81153-89161 Ring, Sealed Beam Mounting, No.1 LhSEALED BEAM MOUNTING, NO.1 LH [01.1989 - 11.1989] LN85,YN85..VWP..LHD *FRG & *HWS HEADLAMP |
81153-89161 |
US $15.87 |
||
|
81153
|
81153
81153-89164 Ring, Sealed Beam Mounting, No.1 LhSEALED BEAM MOUNTING, NO.1 LH [11.1989 - 06.1991] LN85,YN85..VWP..LHD..CBU *FRG & *HWS HEADLAMP |
81153-89164 |
US $14.41 |
||
|
81195
|
81195
81195-35010
Screw, Headlamp
[02.1994 - 10.1994] LN85,YN85..VWP..LHD *FRG |
81195-35010 |
— | ||
| replacement | |||||
|
81195
|
81195
81195-89101 Screw, Headlamp[02.1994 - 10.1994] LN85,YN85..VWP..LHD *FRG |
81195-89101 |
from US $4.66 |
||
|
81195
|
81195
81195-89101 Screw, Headlamp[01.1989 - 10.1991] LN85,YN85..VWP |
81195-89101 |
from US $4.66 |
||
|
81195
|
81195
81195-89102
Screw, Headlamp
[10.1991 - 02.1994] LN85,YN85..VWP |
81195-89102 |
— | ||
| replacement | |||||
|
81195
|
81195
81195-89101 Screw, Headlamp[10.1991 - 02.1994] LN85,YN85..VWP |
81195-89101 |
from US $4.66 |
||
|
8113612571
|
8113612571
81136-12571 Screw |
81136-12571 |
from US $2.14 |
||
