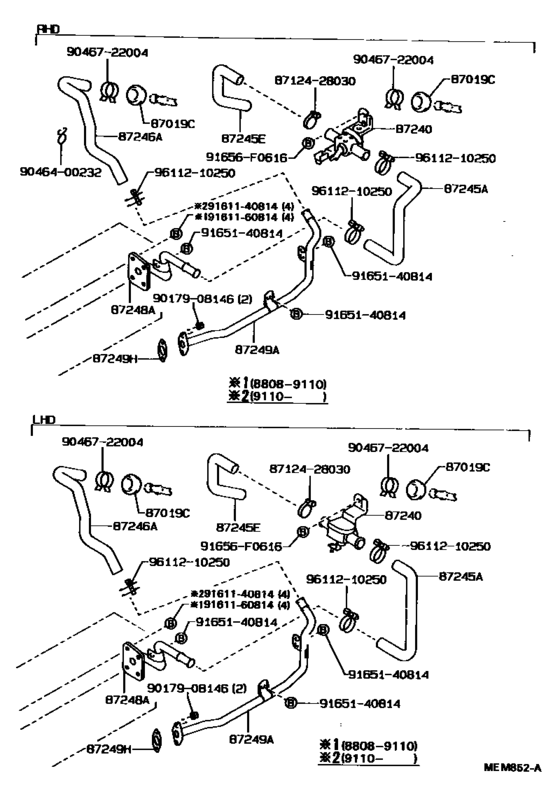

Heating & Air Conditioning - Water Piping ([01.1989 - ] (8901- )YN85..VWP) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1989 - 1994
- Sales region
- Europe
- Frame
- YN85
- grade
- STD
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- PRODUCT
- VWP
- DECK
- T1
- CAB
- RCB
- Model
- HILUX
- From
- 01.1989
- To
- 10.1994
- Gear Shift Type
- 5F
- Vehicle Model
- Hilux (VWP)
- Driver's Position
- LHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-36005 Grommet, Heater Hose[01.1989 - 02.1997] LN85,YN85..VWP |
90480-36005 |
US $3.58 |
||
|
87240
|
87240
87240-89124 Valve Assy, Heater WaterHEATER WATER [01.1989 - 10.1994] YN85..VWP..LHD |
87240-89124 |
from US $54.26 |
||
|
87245A
|
87245A
87245-89226 Hose, Heater Water, Inlet AHEATER WATER, INLET A [01.1989 - 10.1994] YN85..VWP..LHD |
87245-89226 |
US $17.76 |
||
|
87245E
|
87245E
87245-89231 Hose, Heater Water, Inlet EHEATER WATER, INLET E [01.1989 - 10.1994] YN85..VWP..LHD |
87245-89231 |
from US $11.94 |
||
|
87246A
|
87246A
87245-89227 Hose, Heater Water, Outlet AHEATER WATER, OUTLET A [01.1989 - 10.1994] YN85..VWP..LHD |
87245-89227 |
US $21.55 |
||
|
87248A
|
87248A
87208-35140
Pipe, Heater Water Inlet, A
[01.1992 - 10.1994] YN85..VWP |
87208-35140 |
— | ||
| replacement | |||||
|
87248A
|
87248A
87208-89134
Pipe, Heater Water Inlet, A
[01.1992 - 10.1994] YN85..VWP |
87208-89134 |
— | ||
|
87248A
|
87248A
87208-89134
Pipe, Heater Water Inlet, A
[01.1989 - 01.1992] YN85..VWP |
87208-89134 |
— | ||
|
87249A
|
87249A
87208-35150
Pipe, Heater Water Outlet, A
[01.1992 - 10.1994] YN85..VWP |
87208-35150 |
— | ||
| replacement | |||||
|
87249A
|
87249A
87208-89135
Pipe, Heater Water Outlet, A
[01.1992 - 10.1994] YN85..VWP |
87208-89135 |
— | ||
|
87249A
|
87249A
87208-89135
Pipe, Heater Water Outlet, A
[01.1989 - 01.1992] YN85..VWP |
87208-89135 |
— | ||
|
87249H
|
87249H
17175-72010
Gasket, Heater Pipe
[01.1989 - 12.1989] YN85..VWP |
17175-72010 |
— | ||
| replacement | |||||
|
87249H
|
87249H
17175-72011 Gasket, Heater Pipe[01.1989 - 12.1989] YN85..VWP |
17175-72011 |
from US $3.10 |
||
|
87249H
|
87249H
17175-72011 Gasket, Heater Pipe[12.1989 - 10.1994] YN85..VWP |
17175-72011 |
from US $3.10 |
||
|
91656F0616
|
91656F0616
91656-F0616
New Genuine Part
|
91656-F0616 |
— | ||
| replacement | |||||
|
91656F0616
|
91656F0616
90119-06482 New Genuine Part |
90119-06482 |
US $1.38 |
||
|
8712428030
|
8712428030
87124-28030 Clamp, Heater |
87124-28030 |
from US $2.42 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9046400232
|
9046400232
90464-00232 New Genuine Part |
90464-00232 |
US $0.52 |
||
|
9046722004
|
9046722004
90467-22004
Clip(For Ventilation Hose No.2)
|
90467-22004 |
— | ||
| replacement | |||||
|
9046722004
|
9046722004
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.28 |
||
